6SL3210-5BB13-7BV1 Siemens
Original price
$0.00
-
Original price
$569.96
Original price
$569.96
$0.00
-
$569.96
Current price
$569.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

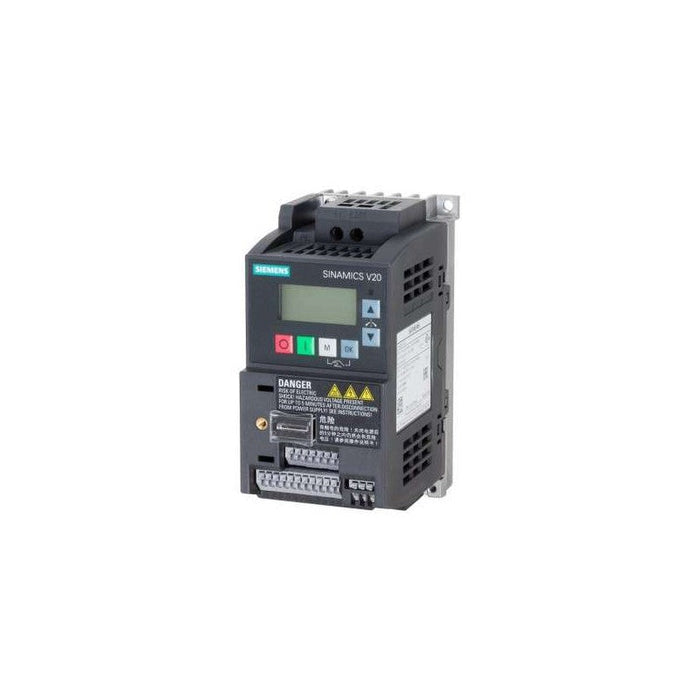

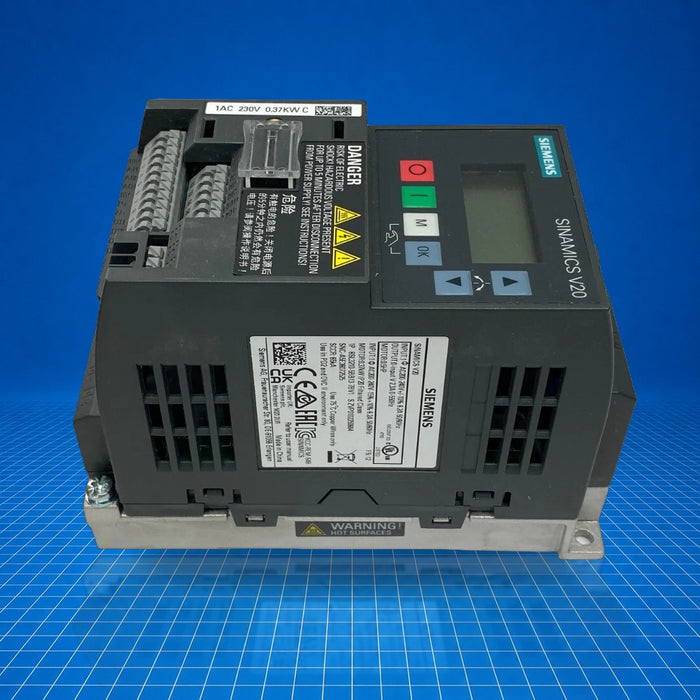

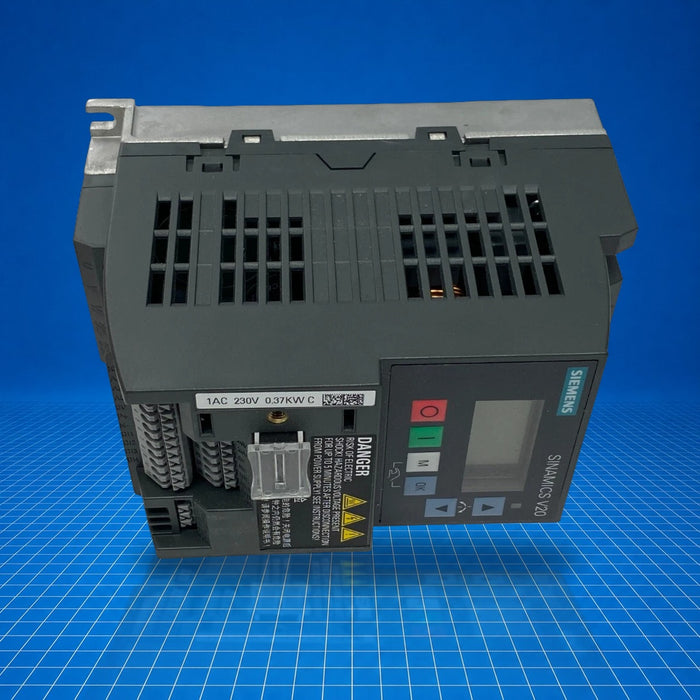

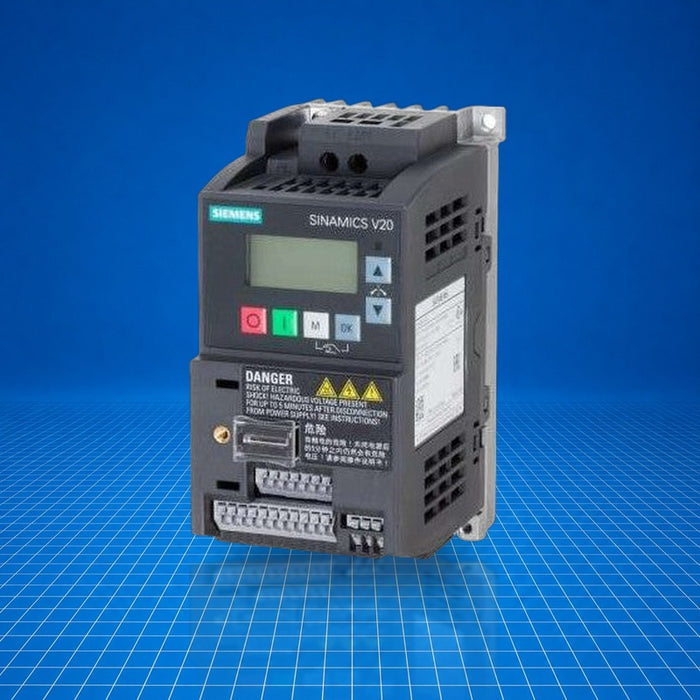

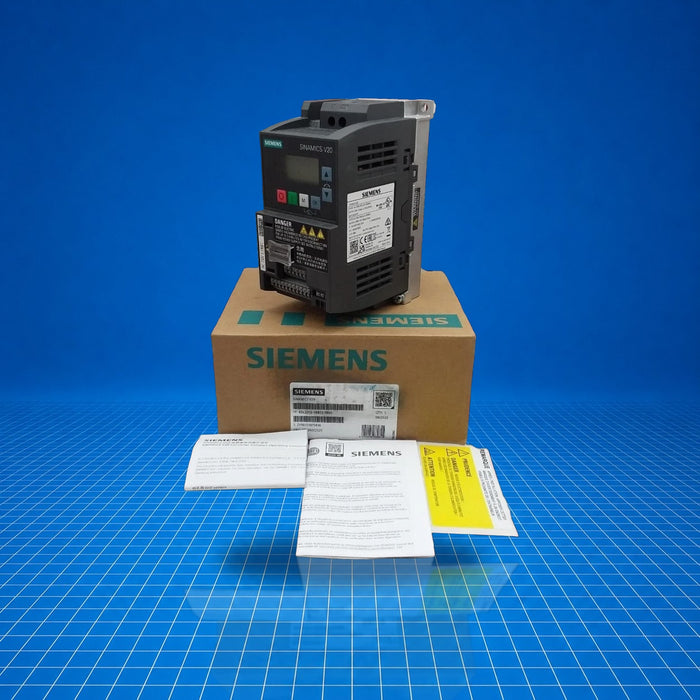

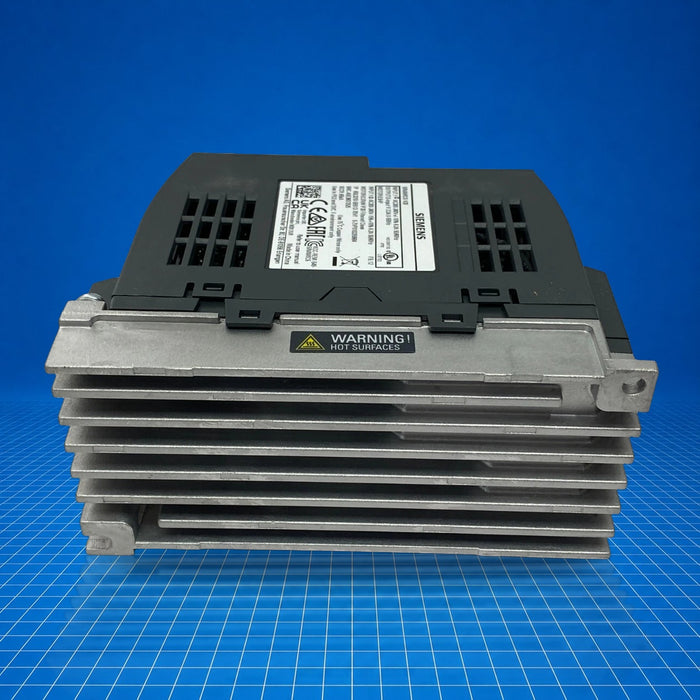

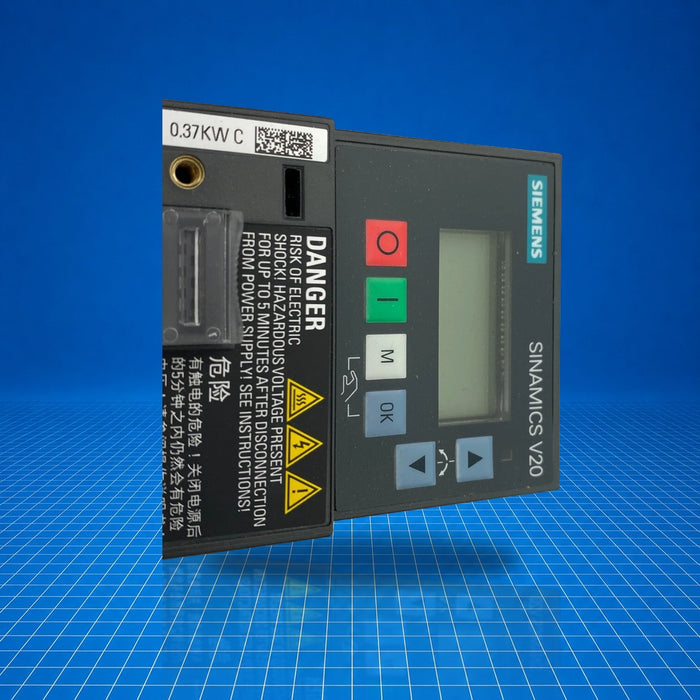

The Siemens 6SL3210-5BB13-7BV1 is a SINAMICS V20 single-phase 200-240 V AC variable frequency drive with integrated C1 input filter. It belongs to the V20 basic converters platform, facilitating motor speed and torque control via USS or Modbus RTU communications. This model delivers 0.37 kW (0.5 hp) output power and supports 150 % overload for 60 s. Its compact IP20 enclosure suits wall or side-by-side mounting in industrial applications such as small machine drives, pumps, conveyors, or fans requiring moderate power control and minimal footprint.
Best Suited For
- Small machinery requiring adjustable speed control
- Pumps and fans in compact control cabinets
- Conveyor systems under 0.5 hp
- Retrofitting drives in IP20 environments
Output power
0.37 kW
Input voltage
1 AC 200-240 V -15 % /+10 %
Overload capability
150 % for 60 s
Controlled via
USS, Modbus RTU
Protection rating
IP20 / UL open type
Technical Specifications
I/O & Electrical
Input voltage
200 ... 240 V -15 % +10 % (1 AC)
Line frequency
47 ... 63 Hz
Rated output power
0.37 kW (LO and HO)
Rated output current
2.30 A
Overload rating
150 % rated current for 60 s, cycle time 300 s

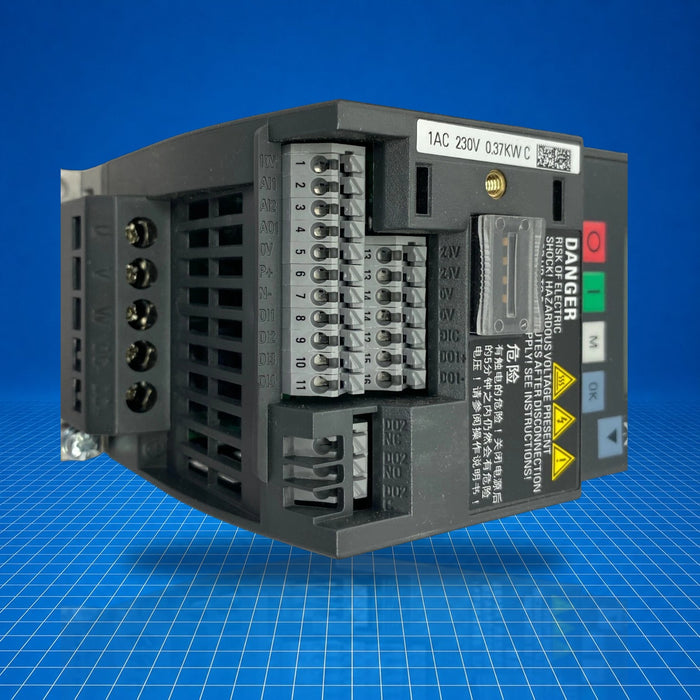

Digital inputs
4
Digital outputs
1 relay changeover, 1 transistor
Analog inputs
2 (can be used as digital inputs)
Analog outputs
1
Communication interfaces
USS, Modbus RTU
Communication & Power
Filter class
Class B (integrated)
Power factor λ
0.72
Cos φ (offset factor)
0.95
Efficiency η
0.98
Physical & Environmental
Cooling method
Convection
Ambient temperature, operation
-10 ... 60 °C (14 ... 140 °F)
Ambient temperature, storage
-40 ... 70 °C (-40 ... 158 °F)
Relative humidity, max operation
95 %
Max. motor cable length
Shielded 25 m; unshielded 50 m
Mounting position
Wall or side-by-side
Degree of protection
IP20 / UL open type
Dimensions (W×H×D)
68 × 142 × 107.8 mm
Net weight
0.60 kg
