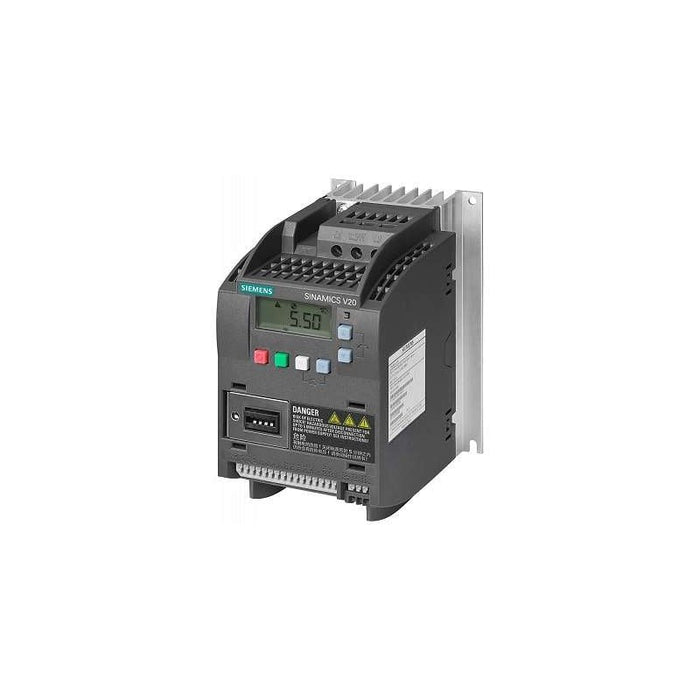

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3210-5BB17-5UV0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3210-5BB17-5UV0 is a SINAMICS V20 single-phase AC basic converter (200-240 V, -10 %/+10 %) rated at 0.75 kW (0.75 hp) with 150 % overload capability for 60 s. It integrates a built-in basic operator panel (BOP) and supports fieldbus protocols USS and Modbus RTU. Designed for small drive applications, it is typically used for control of pumps, fans, conveyor systems, and general machinery in industrial environments. The part number 6SL3210-5BB17-5UV0 is one of the spare-part variants of the V20 platform.
Best Suited For
- Simple single-phase motor control (≤ 0.75 kW)
- Integration into USC/Modbus RTU fieldbus systems
- Applications requiring short-term overload (150 % for 60 s)
- Control of pumps, fans, conveyors, and general machinery
Input voltage
200 … 240 V AC (-10 %/+10 %)
Rated power
0.75 kW / 0.75 hp
I/O count
4 DI, 2 DO, 2 AI, 1 AO
Fieldbus
USS / Modbus RTU
Enclosure rating
IP20 / UL open type
Technical Specifications
I/O & Electrical
Digital inputs
4 DI
Digital outputs
2 DO
Analog inputs
2 AI
Analog outputs
1 AO
Communication & Power
Fieldbus protocols
USS, Modbus RTU
Physical & Environmental
Ambient operating temperature
-10 … 60 °C (14 … 140 °F)
Storage temperature
-40 … 70 °C (-40 … 158 °F)
Relative humidity
Max. 95 % (non-condensing)
Mounting
Wall-mount / side-by-side
Max. motor cable length (shielded)
25 m (82 ft)
Max. motor cable length (unshielded)
50 m (164 ft)
Net weight
1.00 kg (2.20 lb)
Degree of protection
IP20 / UL open type
