6SL3210-5BE15-5UV0 Siemens
Original price
$537.88
-
Original price
$799.80
Original price
$537.88
$537.88
-
$799.80
Current price
$537.88
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

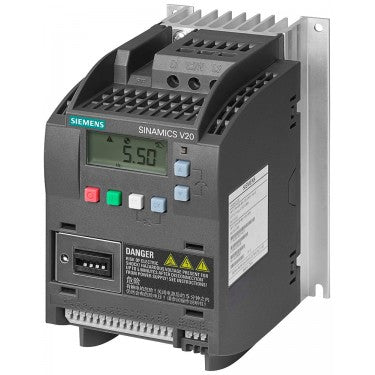

The Siemens 6SL3210-5BE15-5UV0 is a SINAMICS V20 basic frequency inverter, with a rated power of 0.55 kW and designed for three-phase motor speed control on 380-480 V AC supplies. This FSA-frame, unfiltered variant provides 150 % overload capacity for up to 60 seconds and incorporates standard I/O and fieldbus for integration. It is typically applied in conveyor systems, pump control, fans and general-purpose motor drive tasks where compact, wall-mounted three-phase control is required.
Best Suited For
- Conveyor belt drive control
- Pumps and fans in HVAC or process environments
- Machinery requiring space-efficient wall-mount installation
- Retrofit in existing control panels
Rated power
0.55 kW
Input voltage range
380-480 V AC (-15 %/+10 %)
I/O count
4 DI, 2 DO, 2 AI, 1 AO
Communication
USS / Modbus RTU
Mounting & size
Wall-mount, 90 × 150 × 145.5 mm
Technical Specifications
I/O & Electrical
Digital inputs
4
Digital outputs
1 relay + 1 transistor
Analog inputs
2
Analog outputs
1
Communication & Power
Fieldbus
USS, Modbus RTU
Rated input current
2.1 A
Rated output current
1.7 A
Output frequency range
0-550 Hz
Physical & Environmental
Ambient temperature (operate)
-10 … 60 °C
Ambient temperature (storage)
-40 … 70 °C
Relative humidity (max operation)
95 %
Degree of protection
IP20 / UL open type
Weight
0.90 kg
Cooling method
Convection
Mounting
Wall-mount / side-by-side
Certifications
CEcULusC-TickKC
CE, cULus, C-Tick (RCM), KC according to EN 61800-5-1, EN 60204-1 and EN 61800-3
