Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

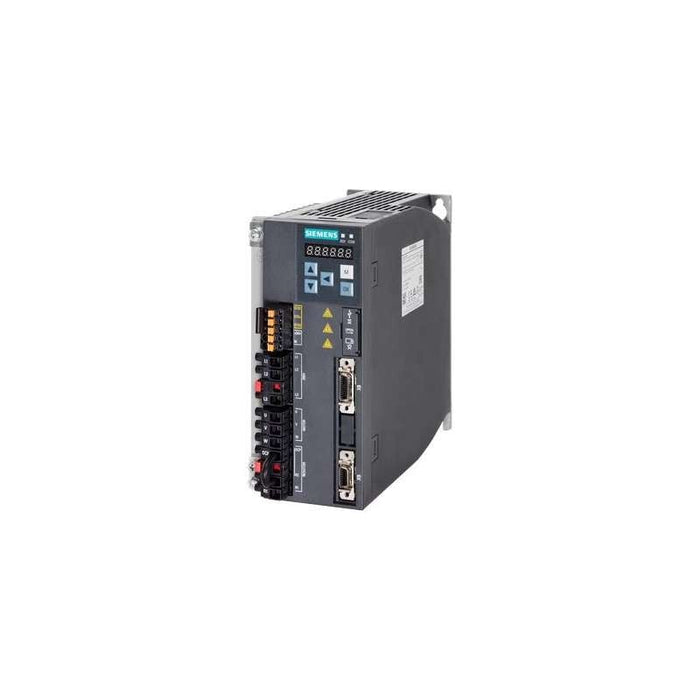

The 6SL3210-5FB10-8UF0 is a Siemens SINAMICS V90 servo drive module with PROFINET interface, designed to regulate servo motors up to 0.75 kW in industrial control systems. It accepts 200-240 V AC (single- or three-phase) and provides precise motion control via PROFINET communications. Commonly used in machine tools, packaging equipment, pick-and-place systems, and general motion control applications where compact form factor and network integration are required. The part number 6SL3210-5FB10-8UF0 identifies this specific variant within the V90 family.
Best Suited For
- Compact servo motion control on machine axes
- Integration in PROFINET-based automation networks
- Applications requiring 0.75 kW motor output
- Panels or machine frames with limited space (Size C)
Input voltage
200-240 V AC (single-/three-phase) ±15 / +10 % "10.4 A/5.0 A"
Rated motor power
0.75 kW
PROFINET interface
Yes
Protection rating
IP20
Frame size (WxHxD)
80 x 170 x 195 mm
Technical Specifications
I/O & Electrical
Input voltage
200-240 V AC ±15 / +10 %
Input current
10.4 A (single-phase) / 5.0 A (three-phase)
Rated motor power
0.75 kW
Communication & Power
Communication protocol
PROFINET
Physical & Environmental
Protection rating
IP20
Dimensions (WxHxD)
80 x 170 x 195 mm
Net weight
1.95 kg
Certifications
RoHSWEEE
Complies with RoHS; WEEE take-back obligation in EU regions.
