Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

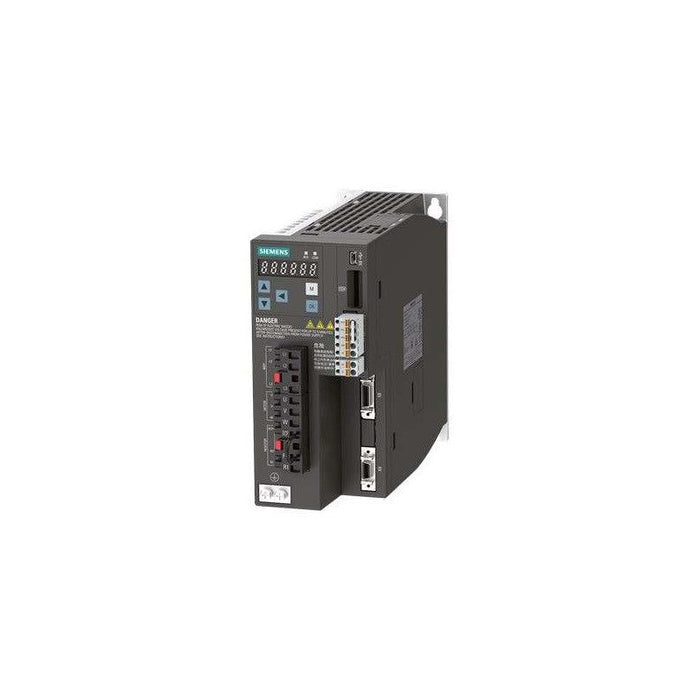

The 6SL3210-5FE10-8UF0 is a SINAMICS V90 servo drive with integrated PROFINET interface, designed to control single-axis servomotors up to 0.75 kW. It operates from three-phase supply in the 380-480 V range and is intended for use in machine-mounted or cabinet-mounted motion control tasks. The drive includes digital inputs/outputs for direct control and monitoring and is suited to industrial automation systems requiring precise speed and torque regulation.
Best Suited For
- Single-axis motion control in machine tools
- Profinet-based factory automation cells
- Direct servo control without additional module
- Typical cabinet or on-machine mounting
Rated motor power
0.75 kW
Rated output current
2.10 A
Max output current
6.30 A
Supply voltage
3 × 380-480 V (-15 %/+10 %)
Protection rating
IP20
Technical Specifications
I/O & Electrical
Standard digital inputs
4
Digital outputs
2
Communication & Power
Communication interface
PROFINET
Rated input current
2.10 A
Physical & Environmental
Frame size
FSA
Weight
1.85 kg
Dimensions (W × H × D)
80.0 × 180.0 × 200.0 mm
Ambient temperature (operation)
0 … 45 °C
Ambient temperature (storage)
-40 … 70 °C
Relative humidity (max operation)
90 %
Cooling method
natural convection
Enclosure rating
IP20 / UL open type
Certifications
CEKCcULusEACC-Tick
Complies with CE, KC, cULus, EAC, C-Tick (RCM) standards.
