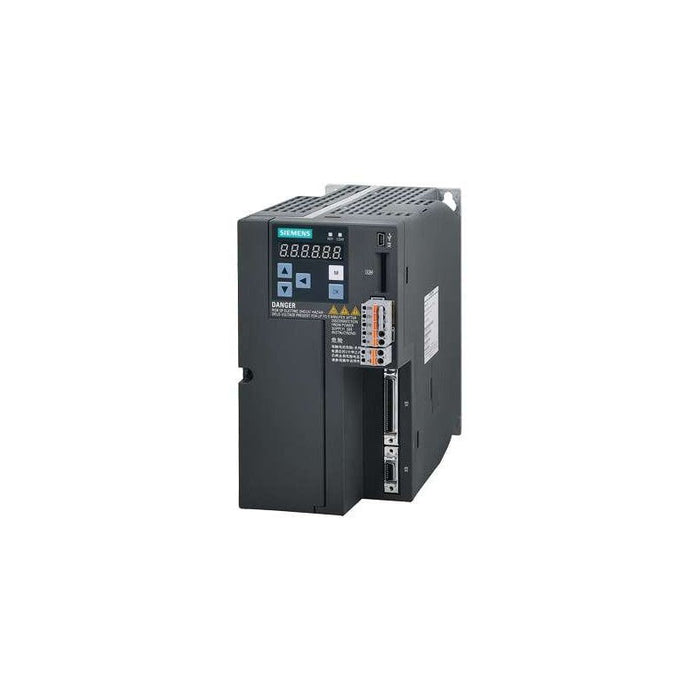

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3210-5FE12-0UA0 Siemens
Sold out
Original price
$0.00
-
Original price
$2,425.50
Original price
$2,425.50
$0.00
-
$2,425.50
Current price
$2,425.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3210-5FE12-0UA0 is a SINAMICS V90 series servo drive, frame size FSB. It provides up to 2.5 kW output (continuous), as a variable-frequency, current-controlled servo drive. It integrates into motion control systems via PROFINET in factory automation, packaging machinery, and general servo-positioning applications. The drive accepts a 3-phase supply and features onboard digital I/O for local control.
Best Suited For
- Position control in machine tools or packaging lines
- Integration via PROFINET networks
- Torque and speed regulation in stand-alone or multi-axis setups
- Installation in machine control panels with IP20
- Dynamic motion applications using servo motors
Rated output power
2.50 kW
Rated current
7.80 A
Peak output current
23.40 A
Supply voltage
380…480 V AC +10 /-15 %
Communication port
PROFINET
Technical Specifications
I/O & Electrical
Standard digital inputs
4
Digital outputs
2
Communication & Power
Supply voltage
3-phase 380…480 V AC +10 /-15 %, 50/60 Hz
Rated input current
9.8 A
Power supply capacity
11.1 kVA
Output frequency
0-330 Hz
Inrush current
4.0 A
24 V DC supply voltage
24 V (-15 % … +20 %)
24 V DC max current
1.6 A (no brake) / 3.6 A (with brake)
Physical & Environmental
Degree of protection
IP20 / UL open-type
Weight
2.45 kg
Dimensions (W × H × D)
100 × 180 × 220 mm
Ambient operating temperature
0 … 45 °C
Storage temperature
-40 … 70 °C
Relative humidity (operation)
max. 90 %
Cooling
Fan
Installation altitude
≤ 1000 m
Certifications
CEKCcULusEACC-Tick (RCM)
CE, KC, cULus, EAC, C-Tick (RCM)
