Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

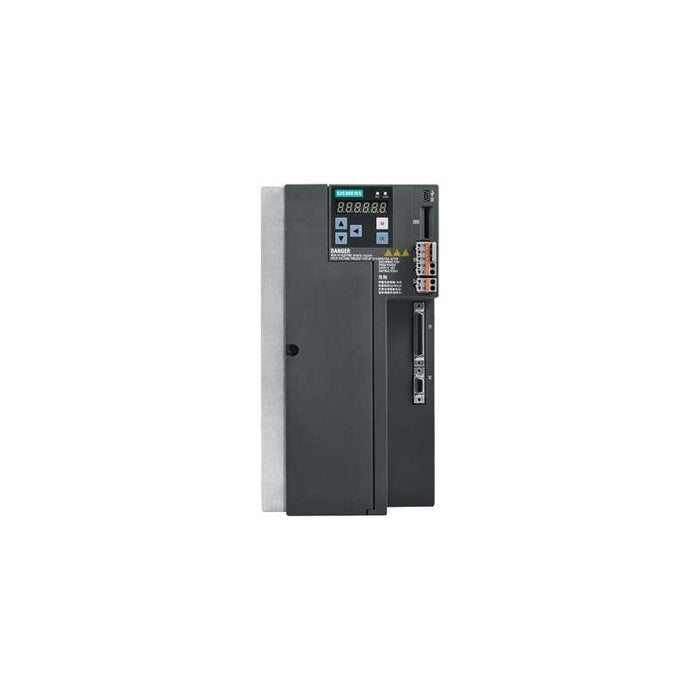

The 6SL3210-5FE13-5UA0 is a SINAMICS V90 servo drive (frame size FSC) from Siemens. It accepts a three-phase 380-480 V AC input (-15 %/+10 %, 45-66 Hz) and provides a rated 3.5 kW output with 11 A nominal and up to 33 A maximum current. It is used in motion control systems requiring closed-loop servo control, often paired with SIMOTICS S-1FL6 servo motors. Typical installations include machine tools, robotics, and automated positioning systems in production lines.
Best Suited For
- Closed-loop servo motor control with SINAMICS V90
- Integration with SIMOTICS S-1FL6 motors (3.5 kW class)
- Applications requiring 380-480 V three-phase supply
- Industrial automation involving moderate dynamic loads
- Panel-mount in IP20 control enclosures
Rated motor power
3.5 kW
Rated output current
11 A
Max output current
33 A
Supply voltage
3-phase 380-480 V AC (-15 %/+10 %)
Communication interface
USS, Modbus RTU (some summary shows PROFINET variant)
Technical Specifications
I/O & Electrical
Rated supply voltage
3-phase 380 … 480 V AC (-15 %/+10 %), 45-66 Hz
Rated output current
11 A
Max output current
33 A
Standard digital inputs
10
Digital outputs
6
Analog inputs
2
Analog outputs
2
Communication & Power
Communication protocols
USS, Modbus RTU (from technical data)
Alternate interface
PROFINET (as per product summary variant)
Cooling
Fan-cooled
Power dissipation (approx)
Main circuit, control, regenerative data not specified for this variant exactly
Physical & Environmental
Frame size
FSC
Degree of protection
IP20 / UL open type
Dimensions (WxHxD)
140 × 260 × 240 mm
Net weight
5.65 kg
Ambient temperature, operation
0 … 45 °C
Ambient temperature, storage
-40 … 70 °C
Relative humidity, max operation
90 %
Installation altitude
up to 1 000 m
Certifications
CEKCcULusEACC-Tick (RCM)
CE, KC, cULus, EAC, C-Tick (RCM)
