6SL3224-0BE15-5UA0 Siemens
Original price
$567.36
-
Original price
$1,042.42
Original price
$1,042.42
$567.36
-
$1,042.42
Current price
$1,042.42
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

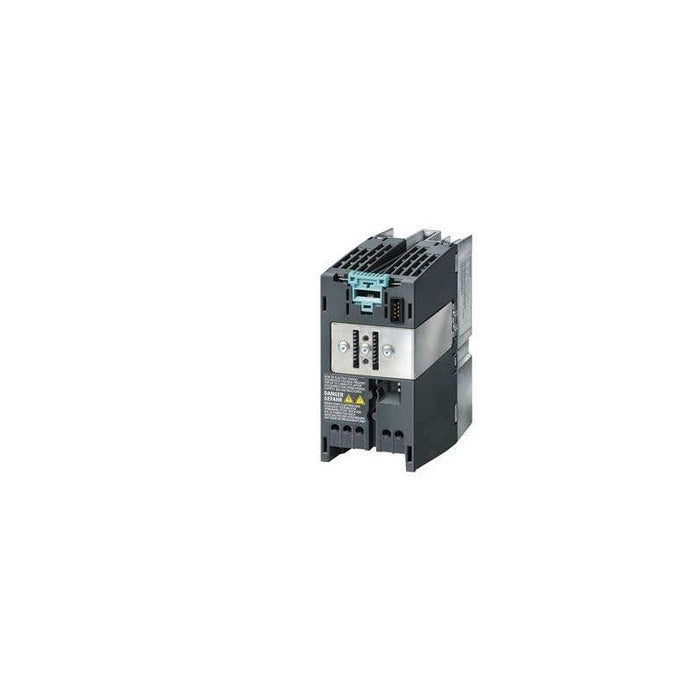

Siemens part 6SL3224-0BE15-5UA0 is a SINAMICS G120 series PM240 three-phase power module (unfiltered) with integrated braking chopper, rated at 0.55 kW base load. It interfaces between a three-phase 380-480 V AC supply and a motor, enabling controlled output in variable-frequency drive applications. Typical industrial uses include on-machine drives, conveyor systems, and small machinery requiring precise speed and torque regulation in the SINAMICS G120 drive family.
Best Suited For
- Variable-frequency drive applications within SINAMICS G120 systems
- On-machine motor control up to 0.55 kW
- Applications requiring integrated braking chopper
- Three-phase 380-480 V AC environments
Rated Power (LO/HO)
0.55 kW
Input Voltage Range
380-480 V ±10 %
Frame Size / Protection
FSA / IP20
Weight
1.10 kg
Overload Capability
150 % for 57 s; 200 % for 3 s
Technical Specifications
I/O & Electrical
Input phases
3 AC
Line voltage
380 … 480 V ±10 %
Line frequency
47 … 63 Hz
Rated current (with line reactor)
1.80 A
Rated current (without line reactor)
2.10 A
Output phases
3 AC
Rated output voltage
400 V IEC / 480 V NEC
Rated output current (LO/HO)
1.70 A
Max output current
3.40 A
Pulse frequency
4 kHz
Output frequency (vector control)
0 … 200 Hz
Output frequency (V/f control)
0 … 550 Hz
Communication & Power
Power loss
0.10 kW
Power factor λ
0.85
Offset factor cos φ
0.95
Efficiency η
0.97
Sound pressure level (1 m)
45 dB
Physical & Environmental
Ambient temperature (operation LO)
0 … 40 °C
Ambient temperature (operation HO)
0 … 50 °C
Transport / Storage temperature
-25 … 55 °C
Relative humidity (max operation)
95 % RH, no condensation
Cooling
Internal air cooling
Cooling air requirement
0.005 m³/s (0.177 ft³/s)
Installation altitude
≤ 1 000 m (3 280 ft)
Degree of protection
IP20 / UL open type
Dimensions (HxWxD)
173 × 73 × 145 mm
Weight (net)
1.10 kg
Conductor cross-section (line/motor/DC link)
1.00 … 2.50 mm² (AWG 18 … 14)
PE connection
On housing with M4 screw
Max motor cable length (shielded/unshielded)
50 m / 100 m
Certifications
ULcULCEC-TickSEMI F47
Compliance with UL, cUL, CE, C-Tick (RCM), SEMI F47; meets Low-Voltage Directive 2006/95/EC.
