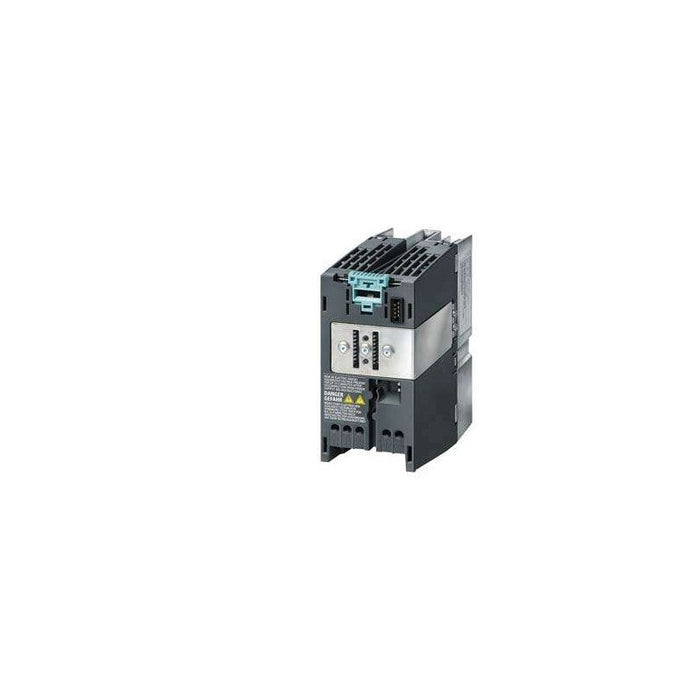

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3224-0BE17-5UA0 Siemens
Original price
$500.00
-
Original price
$1,175.63
Original price
$500.00
$500.00
-
$1,175.63
Current price
$500.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3224-0BE17-5UA0 is a SINAMICS G120 PM240 power module, providing three-phase AC drive capability. It functions as a power conversion stage in modular SINAMICS drive systems, accepting 380-480 V AC and delivering up to 0.75 kW of output power. It is designed for internal air-cooled installations in industrial environments, enabling operation in standard machine control, conveyor, or auxiliary drive applications. The part number 6SL3224-0BE17-5UA0 identifies this specific module with integrated unfiltered design and braking chopper as appropriate.
Best Suited For
- Modular SINAMICS G120 drive systems
- Auxiliary motor or fan drives up to 0.75 kW
- Applications requiring internal air cooling
- Mounting in IP20 control cabinets or panels
Rated output power
0.75 kW
Input voltage range
380-480 V AC ±10 %
Overload capacity
150 % for 57 s; 200 % for 3 s
Cooling method
Internal air cooling (4.8 l/s)
Protection rating
IP20
Technical Specifications
I/O & Electrical
Rated voltage
380-480 V AC ±10 %
Line frequency
47-63 Hz
Rated current, LO base load
2.5 A (input) / 2.2 A (output)
Overload rating
150 % for 57 s; 200 % for 3 s
Communication & Power
Power loss
0.102 kW
Cooling airflow required
4.8 l/s internal air cooling
Physical & Environmental
Ambient temperature, operation
-10 °C to +50 °C (PM240)
Mounting/Enclosure protection
IP20, frame size A
Weight
1.2 kg
Dimensions (HxWxD)
173 × 73 × 145 mm
