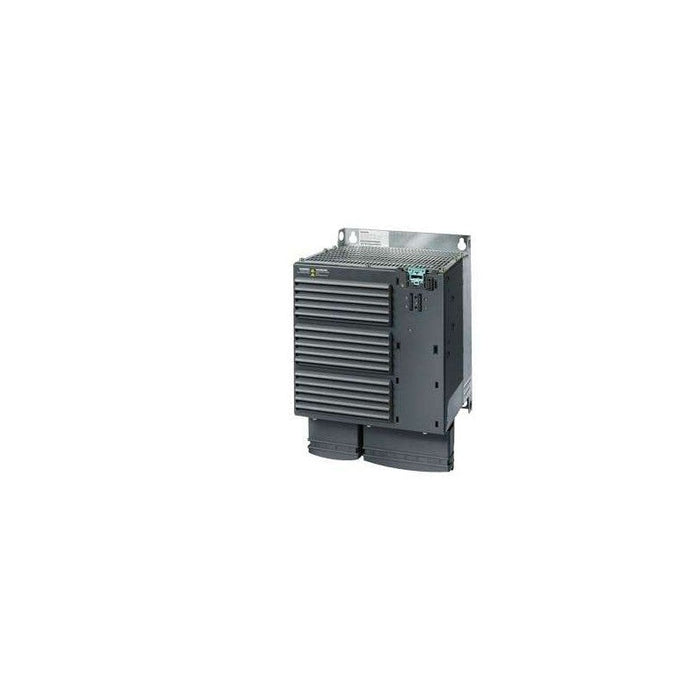

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3224-0BE31-8AA0 Siemens
Original price
$3,330.00
-
Original price
$16,859.44
Original price
$3,330.00
$3,330.00
-
$16,859.44
Current price
$3,330.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3224-0BE31-8AA0 is a SINAMICS G120 PM240 power module from Siemens. Designed for three-phase AC motor drive applications, it occupies the FSC (Frame Size C) mounting platform. It converts 380-480 V AC input into controlled three-phase output to drive motors, with integrated power filtering. Typical uses include variable-speed drives in machinery, conveyor systems, and industrial automation environments requiring modular drive components.
Best Suited For
- Modular SINAMICS G120 drive systems
- Variable-speed three-phase motor control
- Industrial conveyor or machine tool applications
- Applications with 380-480 V AC supply
Input voltage range
380 … 480 V AC ±10 %
Rated output power
15.00 kW (low overload)
Rated output current
32.00 A (LO) / 26.00 A (HO)
Efficiency
0.97
Technical Specifications
I/O & Electrical
Number of input phases
3 AC
Line voltage
380 … 480 V ±10 %
Line frequency
47 … 63 Hz
Rated current (with line reactor)
33.00 A
Rated current (without line reactor)
39.00 A
Max. output current
52.00 A
Communication & Power
Rated output power (LO)
15.00 kW (20.00 hp)
Rated output power (HO)
11.00 kW (15.00 hp)
Output frequency (vector control)
0 … 200 Hz
Output frequency (V/f control)
0 … 550 Hz
Pulse frequency
4 kHz
Physical & Environmental
Sound pressure level (1 m)
60 dB
Power loss
0.40 kW
Certifications
ULcULCEC-Tick (RCM)SEMI F47
Compliant with UL, cUL, CE, C-Tick (RCM), SEMI F47; CE marking under 2006/95/EC Low-voltage directive
