6XV1840-2AH10 Siemens

Name: 6XV1840-2AH10 Siemens
Brand: Siemens
SKU: 6XV1840-2AH10
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

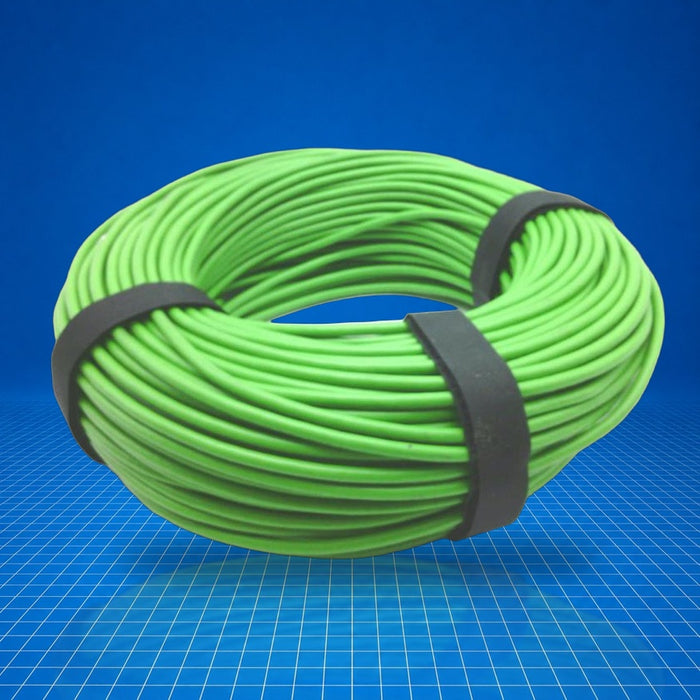

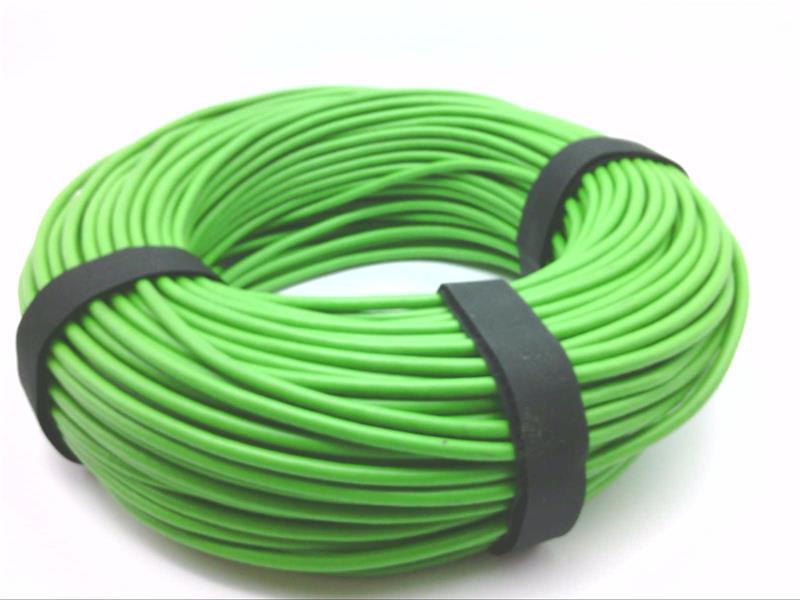

The Siemens part number 6XV1840-2AH10 is an Industrial Ethernet FC TP (FastConnect Twisted Pair) standard cable (GP 2x2, PROFINET Type A), consisting of a 4-core shielded Cat5E copper design, sold by the meter. It is used to connect Industrial Ethernet FC RJ45 2×2 components in control cabinets or machine-level installations, providing data transmission within PROFINET networks. The rigid-core cable supports structured cabling in factory automation environments, with a delivery unit up to 4000 meters and minimum order quantity of 20 meters. This cable integrates into PROFINET installations to link RJ45 field connectors to controllers or switches.

Best Suited For

PROFINET Type A bus cabling in panel installations
Fixed installation within machine control cabinets
Runs between IE FC RJ45 2×2 connectors and industrial Ethernet devices
Use in environments requiring structured cabling with rigid core for fast installation

Cable type

Industrial Ethernet FC TP Standard cable, GP 2×2 (PROFINET Type A)

Shielding

SF/UTP (foil + braided)

Impedance

100 Ω (1 MHz … 100 MHz)

Attenuation at 100 MHz

0.195 dB/m

Operating voltage (RMS)

80 V

Technical Specifications

I/O & Electrical

Impedance

100 Ω (1 MHz … 100 MHz)

Attenuation factor

0.052 dB/m at 10 MHz; 0.195 dB/m at 100 MHz

Loop resistance (max)

115 mΩ/m

Near-end crosstalk

0.5 dB/m

Transfer impedance at 10 MHz

10 mΩ/m

Operating voltage (RMS)

80 V

Communication & Power

PoE capable

Yes

PoE+ capable

Yes

NVP (velocity of propagation)

69 %

Physical & Environmental

Number of cores

4

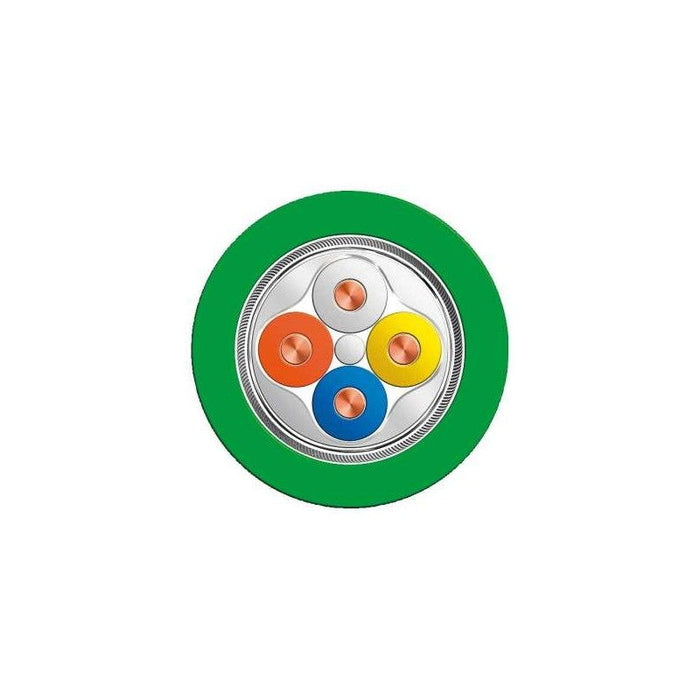

Shield design

SF/UTP: overlapped aluminum-clad foil + braided tinned copper

Core conductor diameter

0.64 mm (AWG22)

Wire insulation thickness

1.5 mm

Inner sheath thickness

3.9 mm

Cable sheath thickness

6.5 mm

Bending radius (single bend)

19.5 mm

Bending radius (multiple bends)

49 mm

Maximum tensile load

150 N

Weight per length

61 kg/km

Ambient temperature - operation/storage/transport

-40 ... +75 °C

Ambient temperature - installation

-40 ... +60 °C

Fire behavior

flame resistant IEC 60332-3-24 (Cat C), UL 1685 (CSA FT 4); EN 13501-6 class Eca

Chemical resistance

oil resistant (IEC 60811-2-1, 4 h/70 °C); grease & water conditional; UV resistant

Certifications

UL/ETL 300 VcRUus 600 V AWMCERoHSEACEPD

UL/ETL listing with 300 V rating (c(ETL)us CMG PLTC/ITC Sun-R), UL style 600 V (cRUus AWM 21694 AWM I A/B 60 °C 600 V FT2), CE marking, RoHS conformity, EAC approval; Environmental Product Declaration (EPD) with lifecycle CO₂ data
