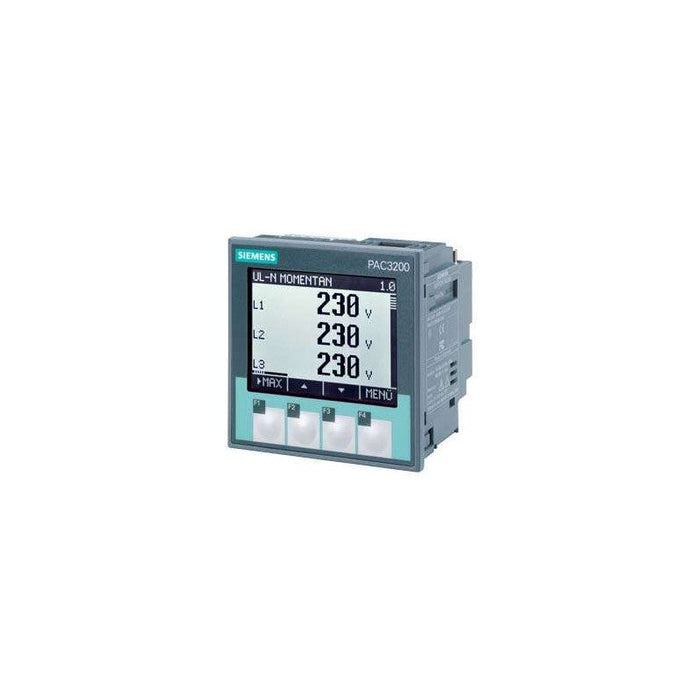

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
7KM2112-0BA00-2AA0 Siemens
Original price
$719.32
-
Original price
$3,297.80
Original price
$719.32
$719.32
-
$3,297.80
Current price
$719.32
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 7KM2112-0BA00-2AA0 (SENTRON PAC3200) is a multifunction electrical measurement device in the PAC measuring-device family. It acquires continuous TRMS current and RMS voltage for three-phase systems (up to 690 V L-L / 400 V L-N), computing active, reactive, apparent power, frequency, and energy. It features a built-in AC/DC wide-range power supply and an LCD interface. The device is mounted in control panels and supports communication via Modbus TCP (optional Modbus RTU/PROFINET/PROFIBUS).
Best Suited For
- Panel-mounted three-phase electrical energy monitoring
- Applications requiring active/reactive/apparent energy measurement
- Systems with Modbus-TCP communication networks
- Environments needing wide-range AC/DC auxiliary power
- Retrofit replacements for 7KM PAC3200 series devices
Voltage measurement range
690 V L-L / 400 V L-N
Current input
1 A or 5 A TRMS
Communication
Modbus TCP (optional Modbus RTU / PROFINET / PROFIBUS)
Display
LCD, 72 mm × 54 mm, white background
Technical Specifications
I/O & Electrical
Voltage measurement inputs
690 V L-L / 400 V L-N (3-phase)
Current input
1 A or 5 A TRMS
Measurement types
Active, reactive, apparent power; frequency; energy
Communication & Power
Communication ports
Modbus TCP; optional Modbus RTU, PROFINET, PROFIBUS
Supply voltage
95 … 240 V AC / 110 … 340 V DC
Physical & Environmental
Display size
72 mm × 54 mm (W × H)
Protection class (front)
IP65; rear IP20
Pollution degree
2
Ambient temperature - operation
-10 °C … +55 °C
Storage/transport temperature
-25 °C … +70 °C
Dimensions (W × H × D)
96 mm × 96 mm × 56 mm
Mounting depth
51 mm
Net weight
540 g
