7KM4212-0BA00-3AA0 Siemens
Original price
$824.86
-
Original price
$1,237.50
Original price
$824.86
$824.86
-
$1,237.50
Current price
$824.86
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

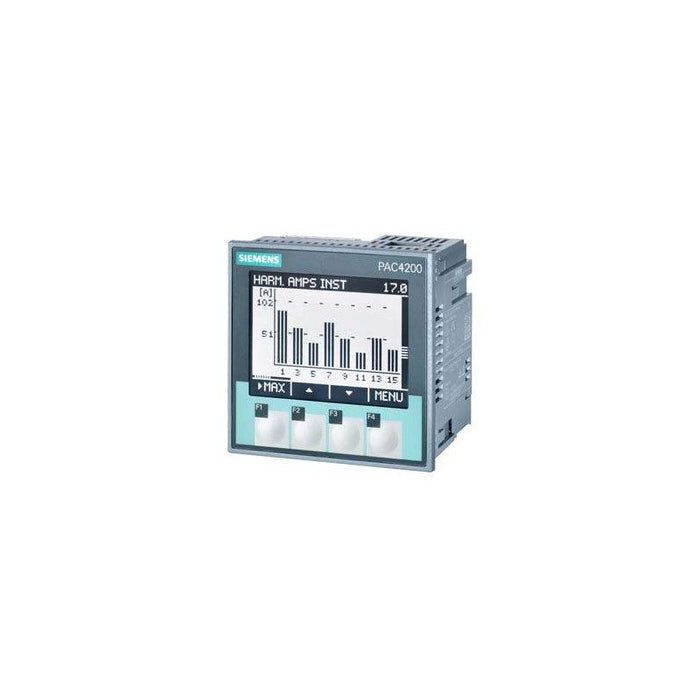

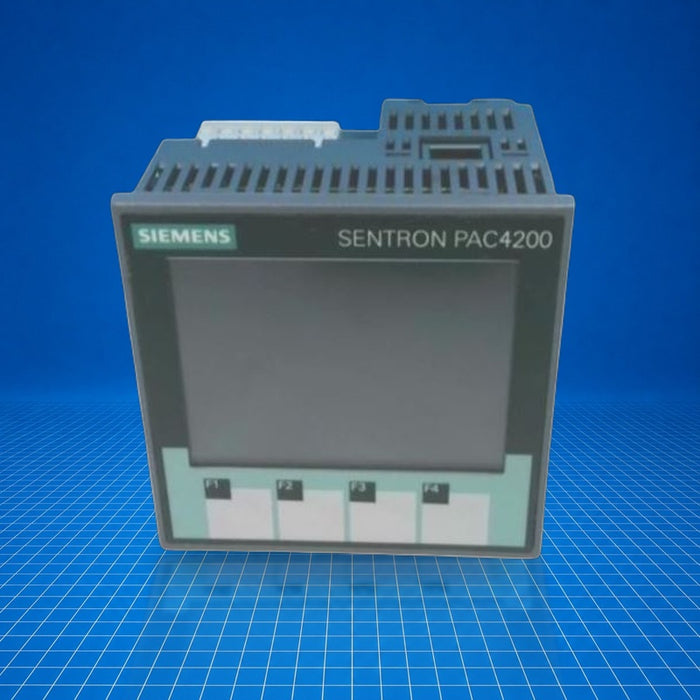

The Siemens part 7KM4212-0BA00-3AA0 is a SENTRON PAC4200 series three-phase power- and network-quality monitoring device. Installed in control panels, it provides measurement of voltage, current, active/reactive/apparent power, energy, frequency, power factor, THD and harmonics. Typical applications include industrial energy monitoring, power quality assessment, and process monitoring for maintenance and power management systems.
Best Suited For
- Panel-mounted three-phase power monitoring
- Power quality diagnostics in TN/TT/IT systems
- Energy management via Modbus TCP networks
- Monitoring in stationary enclosed switchboards
Display height
54 mm
Voltage range (L-L/L-N)
690 V / 400 V
Supply voltage (AC/DC)
95…240 V AC / 110…340 V DC
Front IP protection
IP65
Mounting cut-out
96 × 96 mm
Technical Specifications
I/O & Electrical
Voltage measurement type
TRMS
Voltage measuring range (line-to-line)
max 690 V (max 600 V UL, Cat III)
Current measuring range
1 A and 5 A via CTs
Harmonics measured
up to 64th, THD
Communication & Power
Ethernet interface
1× RJ45, Modbus TCP, 10/100 Mbit/s
Optional protocols
Modbus RTU, PROFINET, PROFIBUS, DI/DO (via expansion)
Supply voltage
95…240 V AC / 110…340 V DC
Pulse output duration
30 ms initial; 500 ms full-scale
Physical & Environmental
Cut-out size
96 × 96 mm panel
Depth
82 mm (installation 77 mm)
Weight
≈ 543 g
Operating temp.
-10 °C … 55 °C
Storage temp.
-25 °C … 70 °C
Relative humidity
max 95 % (non-condensing)
IP rating
Front IP65, rear IP20
Certifications
ULCEcULusEAC
IEC 61010-1; IEC 61557-12 Class 0.2 (active energy), IEC 62053-22 Class 0.2S; UL, CE, EU and UK Declarations, cULus, EAC
