7MH4134-6LB00-0DA0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

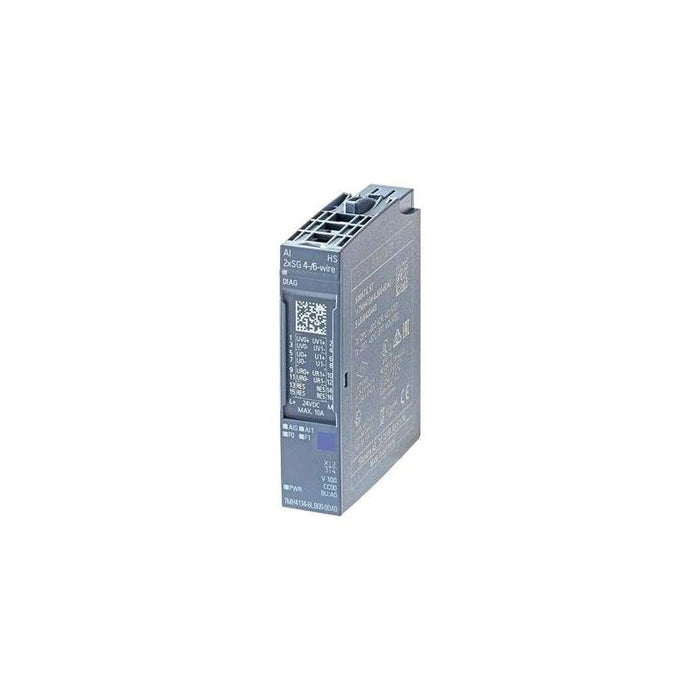

The Siemens 7MH4134-6LB00-0DA0 is a SIMATIC ET 200SP analog input module supporting two-channel high-speed measurement of strain gauges (full-bridge, 4-/6-wire), providing up to 28/16-bit module diagnostics and integrated load-cell interfaces. It offers scalable measuring ranges (±0.5 to 320 mV/V), is configurable via STEP 7/TIA Portal, and supports isochronous operation. The module serves in distributed I/O applications within motion, force/torque measurement, weighing systems or machinery, functioning as the interface between strain-gauge sensors and the control system. Part number appears as needed.
Best Suited For
- Weighing systems with load-cell inputs
- High-speed force/torque measurement
- Modular distributed I/O in ET 200SP systems
- Applications requiring in-operation parameter changes
Channels
2 strain-gauge inputs
Measuring range
±0.5 … 320 mV/V
Supply voltage
24 V DC (19.2…28.8 V DC)
Sensor supply
4.85 V DC, ≤ 60 mA per channel
Sampling rate
up to 20 kHz (high-speed isochronous)
Technical Specifications
I/O & Electrical
Channels
2 strain-gauge (4-/6-wire)
Measuring range
±0.5 … 320 mV/V
Input voltage range
max. 30 V (sensor wires)
Sensor supply voltage
4.85 V DC
Sensor supply current, max.
60 mA per channel
Short-circuit protection
Yes
Communication & Power
Supply voltage
24 V DC (19.2…28.8 V DC)
Current consumption
70 mA
Power consumption (backplane)
65 mW
Reverse polarity protection
Yes
Physical & Environmental
Operating temperature (horizontal)
-25 to 60 °C
Operating temperature (vertical)
-25 to 50 °C
Cable length, shielded
up to 500 m
Weight
0.03 kg
