ABE7CPA31 Schneider

Original price $1,282.28 - Original price $1,875.00
Original price
$1,282.28
$1,282.28 - $1,875.00
Current price $1,282.28
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,282.28
9 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,875.00
10 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (9) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

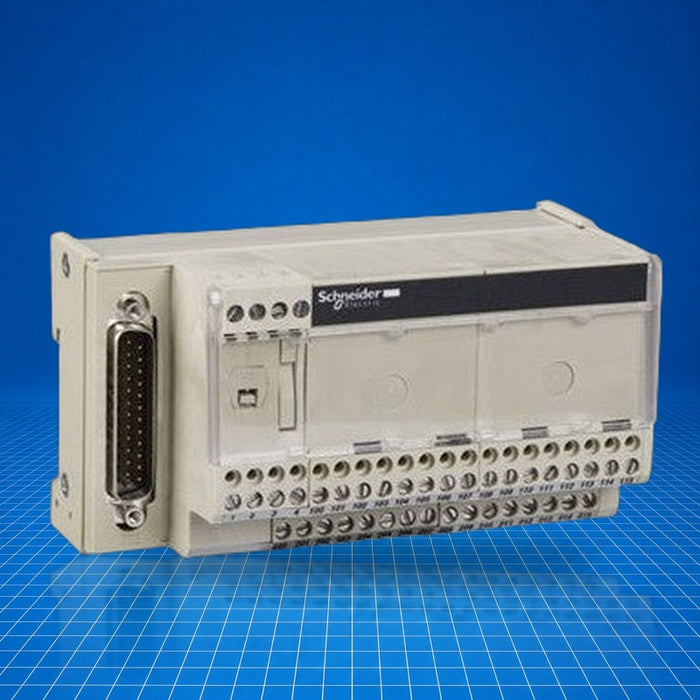

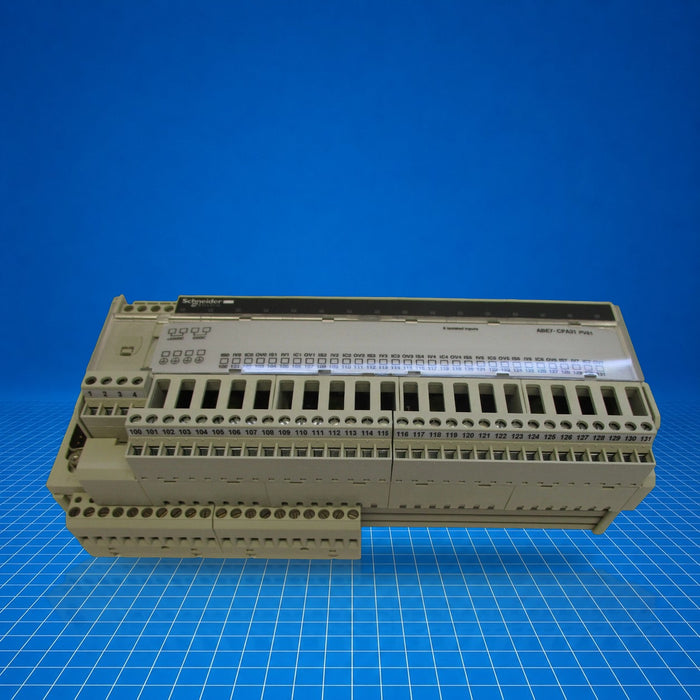

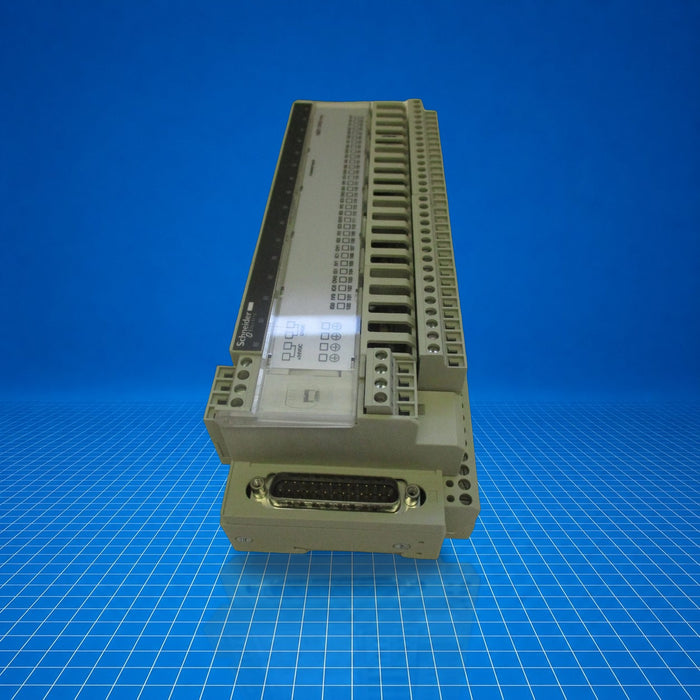

The ABE7CPA31 is a connection sub-base within the Modicon Advantys Telefast ABE7 series by Schneider Electric. It provides isolated distribution of eight analog input channels and serves as a wiring interface between analog field signals and a Premium-series PLC (via TSXAEY810). It supports both current and voltage inputs, offers channel-level isolation, and includes self-resetting current limiting. It is commonly installed on 35 mm DIN rails or solid panels in industrial control panels for analog I/O distribution and isolation.

Best Suited For

  • Distribution and isolation of 8 analog input channels for Modicon Premium systems
  • Installation on 35 mm symmetrical DIN rail or panel mounting environments
  • Applications using mixed voltage/current analog sensors in industrial automation
  • Use cases where channel-level isolation and wiring consolidation are required
Channels
8 isolated analog inputs
Control circuit voltage
24 V DC
Current limiting per channel
25 mA (self-resetting)
Isolation voltage
2000 V between terminals and mounting rail
Mounting
DIN-rail or panel

Technical Specifications

I/O & Electrical

Number of channels
8 analog inputs
Current limiting per channel
25 mA
Control circuit voltage
24 V DC
Insulation voltage
2000 V between terminals/mounting rail

Communication & Power

Terminal connections
Screw-type, various AWG flexible/solid
PLC connection
25-way SUB-D

Physical & Environmental

Mounting
35 mm DIN-rail or screws on panel
Weight
0.41 kg
IP rating
IP20

Certifications

UL 508CSA C22.2IEC 61131GLLROSDNV

Certified to UL 508, CSA C22.2, IEC 61131; product certifications include GL, UL, Lloyd's Register of Shipping (LROS), DNV; environmental protection rating IP20
