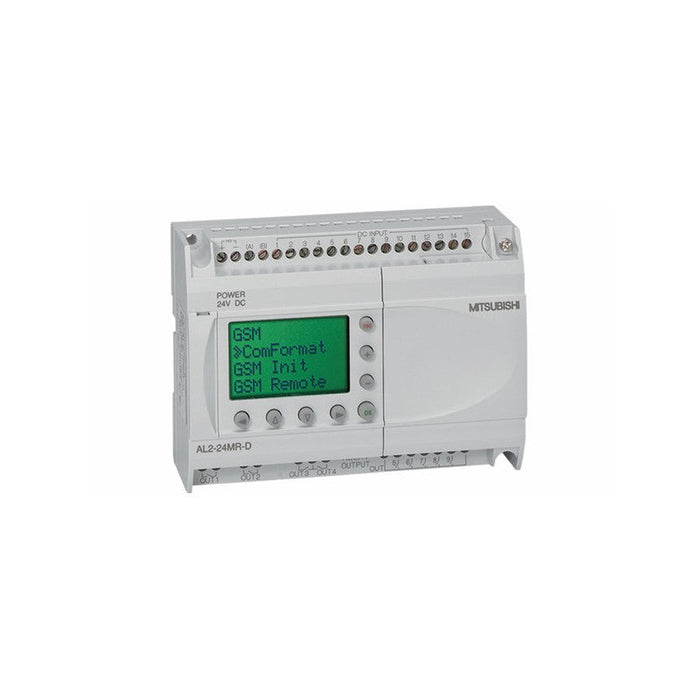

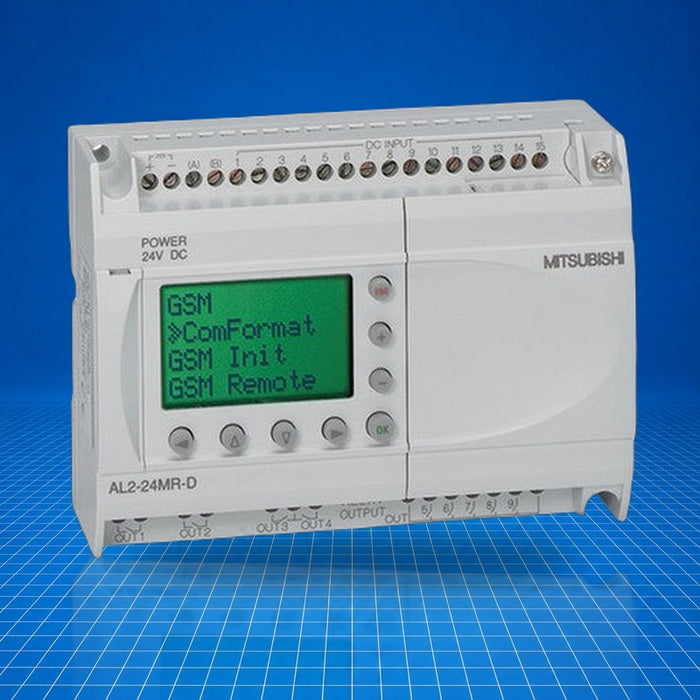

AL2-24MR-D Mitsubishi Electric
Original price
$0.00
-
Original price
$797.50
Original price
$797.50
$0.00
-
$797.50
Current price
$797.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The AL2-24MR-D is a member of Mitsubishi Electric's Alpha2 series of compact PLC/main units. It is a DC-powered, function-block programmable controller with 24 input/output points (14 inputs, 10 relay outputs). It stores programs in maintenance-free EEPROM, supports integrated real-time clock and basic analog input, and mounts via DIN-rail or screw. It typically functions in small automation systems such as HVAC control, building automation, machine logic control, and equipment sequencing. AL2-24MR-D is designed for applications requiring basic control and analog integration.
Best Suited For
- Small machine sequence control
- Building automation logic
- HVAC or environmental control systems
- Applications requiring basic analog input
- Use where compact DIN-rail PLC is sufficient
Power supply
24 V DC
Digital I/O points
24 (14 inputs, 10 outputs)
Analog inputs
8, 0-10 V
Program memory
5 000 bytes EEPROM
Mounting
DIN-rail or screw
Technical Specifications
I/O & Electrical
Input voltage
24 V DC (+20 %/-15 %)
Input current (sink)
5.5 mA (I01-I08) / 5.5 mA (I09-I15)
Input current (source)
6.0 mA (I01-I08), 5.5 mA (I09-I15)
Digital input response time
10-20 ms (OFF→ON and ON→OFF)
Analog input count
8
Analog input range
0-10 V DC
Analog resolution
9 bit
Analog input speed
8 ms
Analog input impedance
142 kΩ ±5 %
Analog accuracy
±5 % (0.5 V DC)
Output type
Relay
Output rated current
8 A/com (001-004), 2 A/point (005-009)
Output switching voltage (max)
250 V AC, 30 V DC
Minimum load
10 mA, 5 V DC
Output response time
<10 ms
Communication & Power
Inrush current
≤ 7.0 A (at 24 V DC)
Allowable momentary power failure
5 ms
Physical & Environmental
Mounting
DIN-rail or screw
Program storage
Integrated EEPROM
