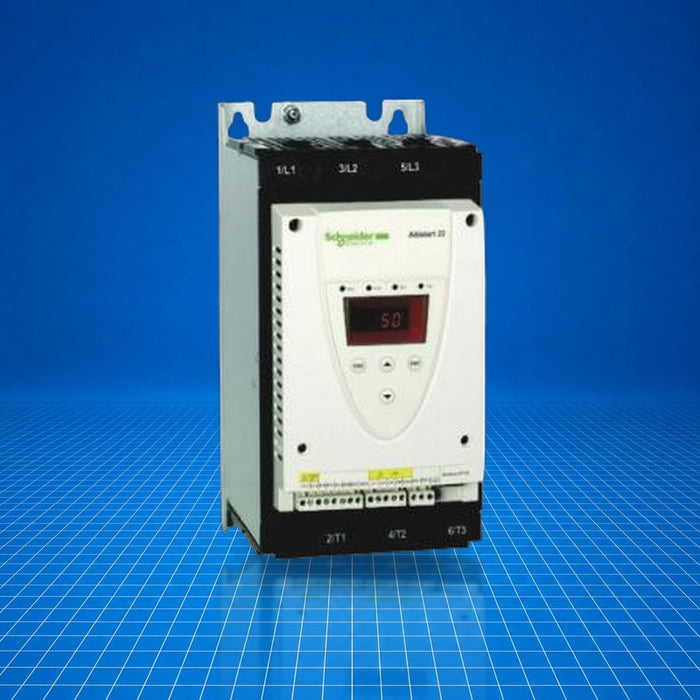

ATS22D47Q Schneider

Name: ATS22D47Q Schneider
Brand: Schneider
SKU: ATS22D47Q
Price: 2013.9 USD
Availability: InStock

$1,375.00 - $2,013.90

$2,013.90

$1,375.00 - $2,013.90

$2,013.90

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

Schneider Electric's ATS22D47Q is an Altistart 22 series soft starter designed for inline starting of three-phase asynchronous motors. It provides controlled ramp-up to reduce mechanical stress and noise during motor startup. Rated for 11 kW at 230 V or 22 kW at 440 V, with a nominal starter current of 47 A, the unit suits industrial pumps, fans, conveyors, and general machinery in maintenance and process control systems. ATS22D47Q enables improved motor lifecycle and operator comfort via smoother torque application.

Best Suited For

On-machine soft motor start for pumps or fans
Replacing across-the-line starters to reduce mechanical shock
Applications requiring noise-sensitive operation environments
Space-constrained panel installations

Rated motor power (440 V)

22 kW

Soft-starter current

47 A

Control voltage

220 V

Dimensions (W × D × H)

145 × 207 × 295 mm

Weight

7 kg

Technical Specifications

I/O & Electrical

Nominal motor power

11 kW (230 V) / 22 kW (440 V)

Soft-starter rated current (IcL)

47 A

Control voltage

220 V

Communication & Power

Power connections

Min 2.5 mm² / Max 16 mm² (IEC), up to 4 AWG (UL)

Tightening torque

3 N·m

Physical & Environmental

Dimensions (W × D × H)

145 × 207 × 295 mm

Weight

7 kg

Ambient temp, operation

-10…40 °C (no derating), >40…<60 °C with 2.2 %/°C derate

Ambient temp, storage

-25…70 °C

Operating altitude

≤ 1000 m (no derating), >1000…<2000 m with 2.2 % per 100 m derate

Certifications

Meets EN/IEC 60947-4-2. UL, CSA, CCC, C-Tick, GOST. EMC: IEC 60947-4-2 level A conducted/radiated emissions; IEC 61000-4-2/-3/-4/-5 immunity. Vibration 1.5 mm 2-13 Hz, 1 gn 13-200 Hz; shock 15 gn 11 ms.
