ATS22D62Q Schneider
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

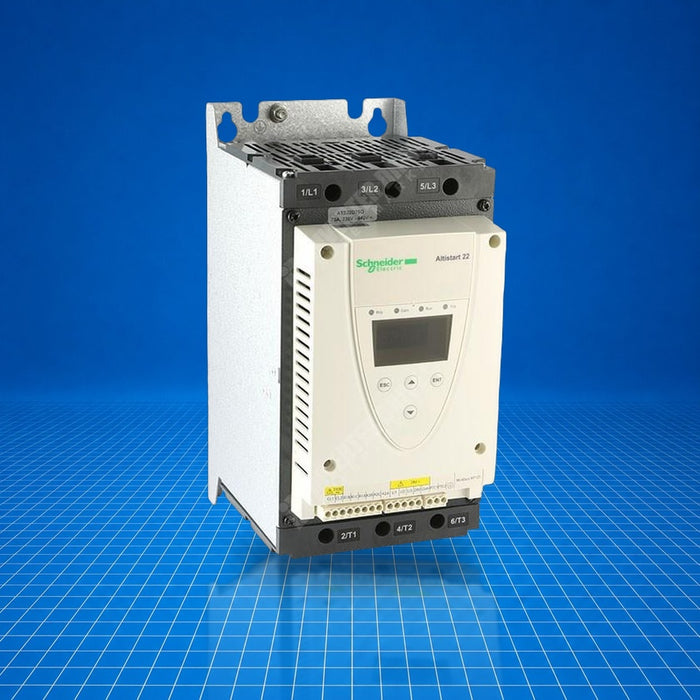

The ATS22D62Q is a Schneider Electric Altistart 22 soft starter, designed for starting three-phase asynchronous motors by limiting inrush current and torque. It accepts a control supply of 230 V and supports motor power of 15 kW at 230 V or 30 kW at 400-440 V, with a rated starter current (IcL) of 62 A. It integrates internal bypass and is suited for applications such as pump, fan, or compressor systems where gradual motor acceleration and reduction of mechanical stress are needed. ATS22D62Q appears in the Altistart 22 platform and is being phased out in favor of ATS430 series models. ATS22D62Q
Best Suited For
- Starting pump, fan, compressor motors
- Reducing mechanical and electrical stress during motor start
- Applications requiring slim form soft starter in control panels
- Replacing obsolete soft starter models in maintenance
