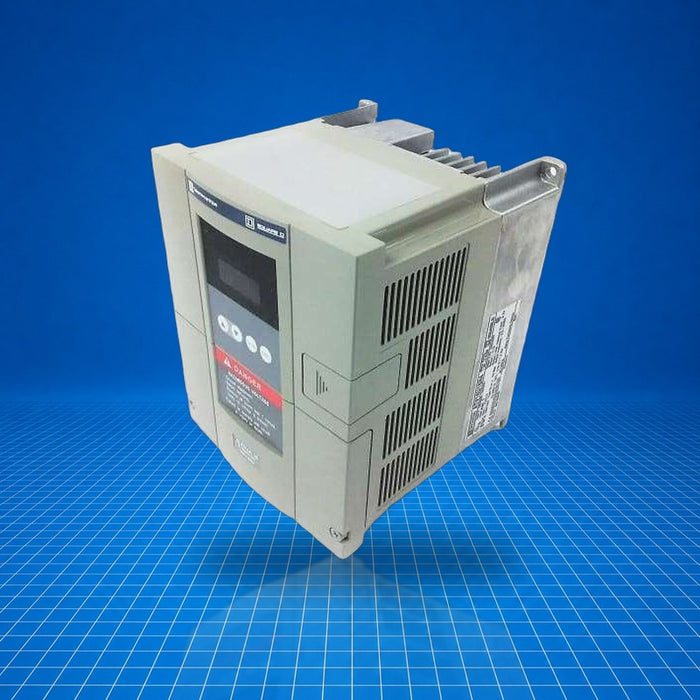

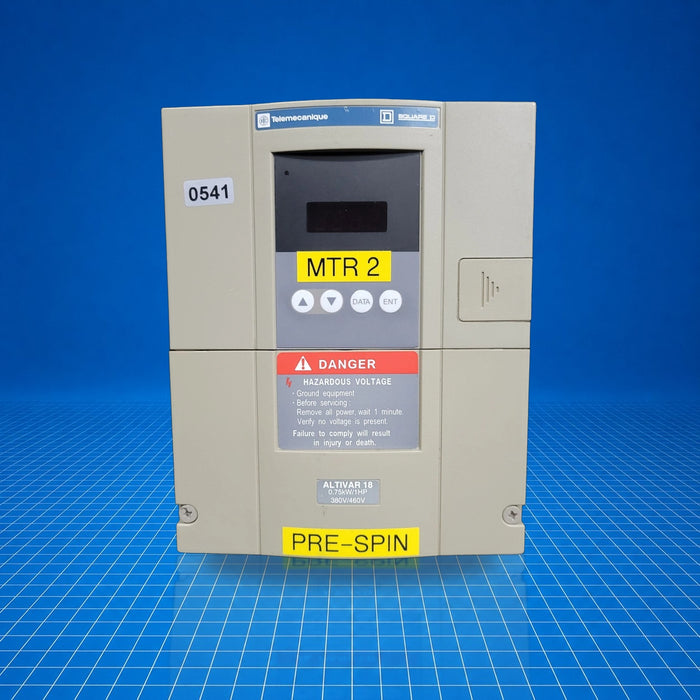

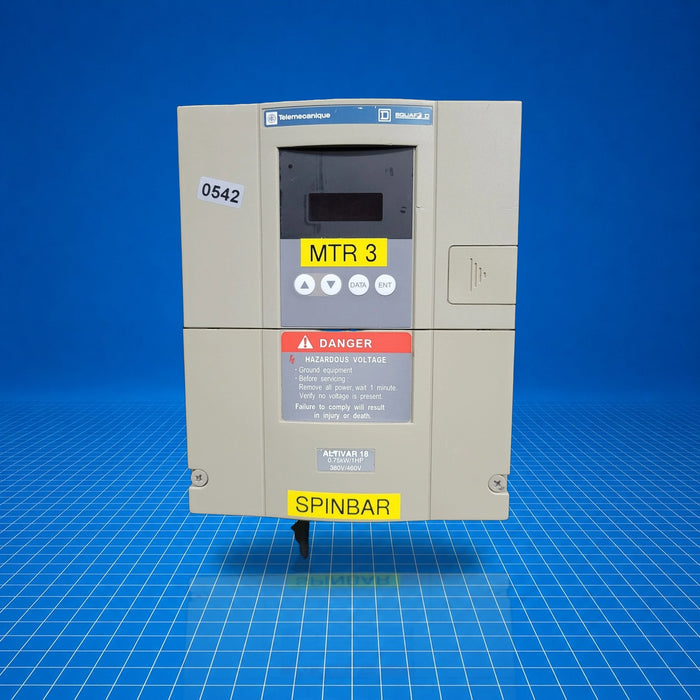

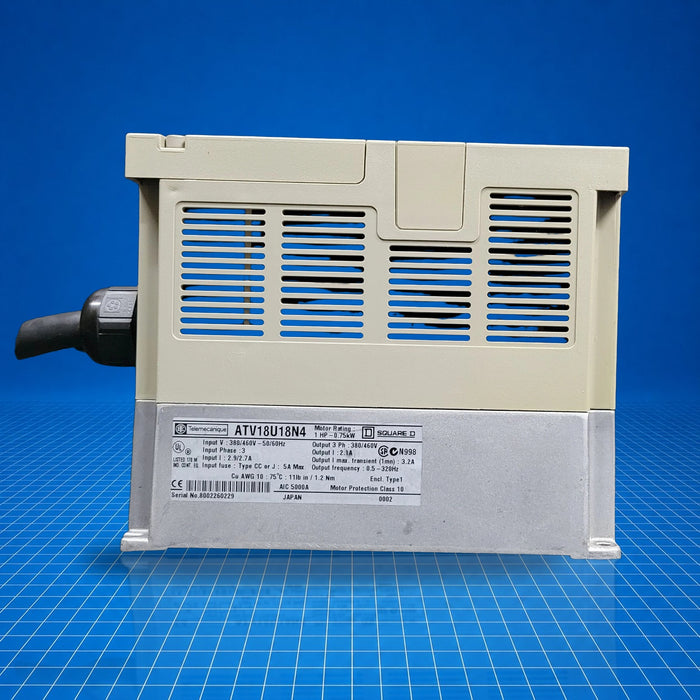

ATV18U18N4 Telemecanique
Original price
$440.00
-
Original price
$1,712.50
Original price
$440.00
$440.00
-
$1,712.50
Current price
$440.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The ATV18U18N4 is a variable frequency drive in Schneider Electric's Altivar 18 family, designed for three-phase motor control in 380 - 460 V AC systems. It provides up to 0.75 kW (1 HP) output with variable frequency control, supporting a frequency range of 0.5 - 320 Hz. The drive includes protections such as thermal, over/under-voltage, short-circuit, and optional braking torque control. Typically applied in legacy machine automation, pump, and fan control systems. ATV18U18N4 has been discontinued; service support continued post-2003.
Best Suited For
- Three-phase small motor control (0.75 kW/1 HP)
- Frequency regulation applications (0.5-320 Hz)
- Systems requiring basic protection: thermal, over/under-voltage, short-circuit
- Legacy Altivar 18 replacement and maintenance
Input voltage
380-460 V AC 3-phase
Nominal power
0.75 kW (1 HP)
Output frequency range
0.5-320 Hz
Braking torque
30 % (standard); up to 150 % with resistor
Technical Specifications
I/O & Electrical
Input voltage
380-460 V AC, 3-phase
Nominal power rating
0.75 kW (1 HP)
Output frequency range
0.5-320 Hz
Maximum transient current
150 % of nominal for 60 s
Braking torque
30 % without resistor; up to 150 % with optional dynamic braking resistor
Adjustable switching frequency
2.2-12 kHz
Physical & Environmental
Operating temperature
0 °C to 45 °C
Storage temperature
-20 °C to 60 °C
Weight
5.00 lbs (2.27 kg)
