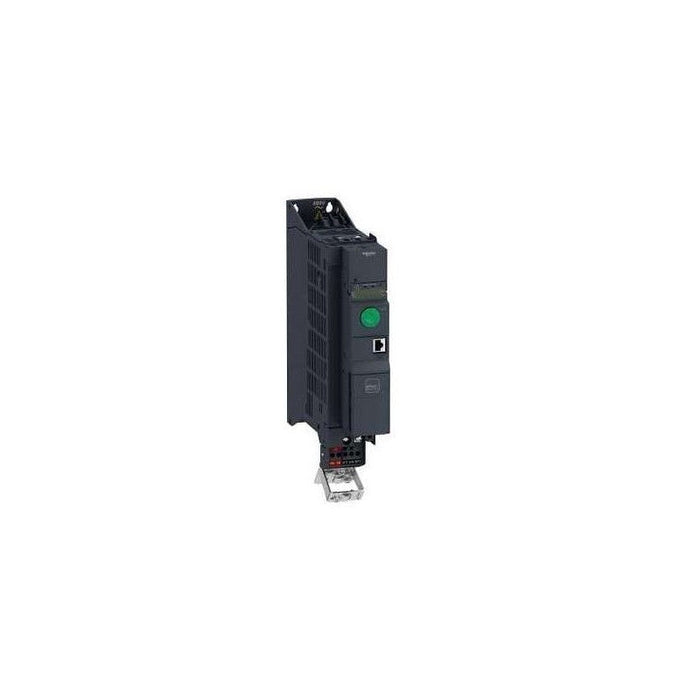

ATV320U15N4B Schneider-Schneider-Never Used Surplus-PLC Department
Product image is representative; revision or series may vary.
Contact us to request a specific version.

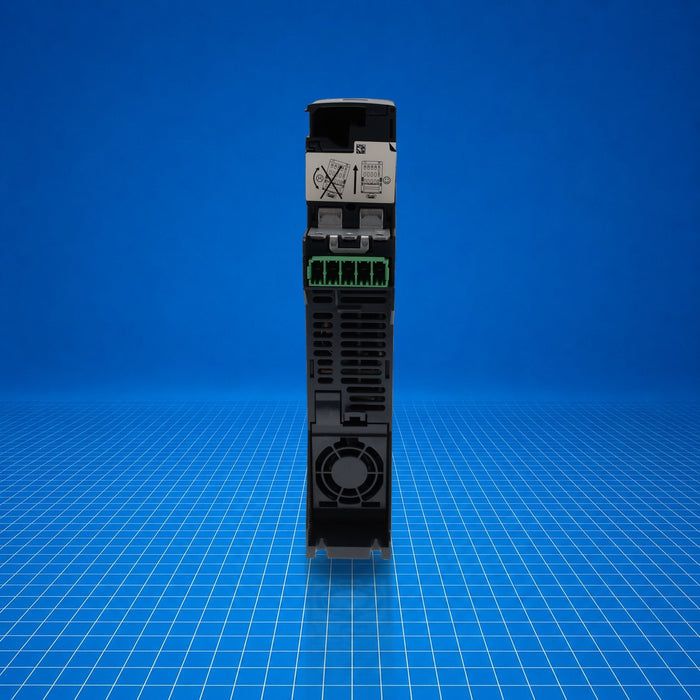

ATV320U15N4B Schneider

$398.85 - $1,532.50
$398.85
$398.85 - $1,532.50
$398.85
Surplus - Tested (With Warranty)
Need a Specific Revision?
$398.85
32 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,532.50
10 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (32) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The ATV320U15N4B is a variable speed drive (Altivar Machine ATV320 series) by Schneider Electric. It delivers up to 1.5 kW (heavy-duty) for three-phase asynchronous and synchronous motors, operating on 380-500 V AC. The "book" form factor is designed for vertical panel mounting. It provides scalar (V/f) and sensorless vector control, and integrated safety functions such as Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Maximum Speed (SMS) and Safe Limited Speed (SLS). Typically used in OEM machine installations for packaging, material handling and pumping systems. Part number ATV320U15N4B is referenced throughout.

Best Suited For

  • OEM machinery in packaging and material handling
  • Ventilation and pumping systems on machine panels
  • Applications requiring multiple safety functions integrated
  • Control of asynchronous or synchronous motors with resource constraints
Rated motor power
1.5 kW (heavy-duty)
Supply voltage
380…500 V AC (-15…+10 %)
Output current
4.1 A (4 kHz heavy-duty)
Form factor
Book (vertical panel mount)
Safety functions
STO, SS1, SMS, SLS

Technical Specifications

I/O & Electrical

Supply voltage
380…500 V AC (-15…+10 %)
Supply frequency
50…60 Hz (±5 %)
Line current
6.5 A at 380 V heavy-duty; 4.9 A at 500 V heavy-duty
Continuous output current
4.1 A (4 kHz heavy-duty)
Maximum transient current
6.2 A for 60 s heavy-duty
Apparent power
4.2 kVA at 500 V heavy-duty

Communication & Power

Control profiles
V/f ratio, energy-saving V/f, sensorless vector control
Safety functions supported
STO (SIL 3), SS1, SMS, SLS
EMC filter
Class C2 integrated

Physical & Environmental

Format / Mounting
Book; vertical ±10 ° panel mount
Cooling
Fan cooled
Power dissipation
63 W (fan) at 380 V, 4 kHz
Operating temperature
-10…50 °C (no derating); 50…60 °C with derating
Protection rating
IP20
Insulation resistance
> 1 MΩ at 500 V DC for 1 min to earth
Shock / Vibration
1.5 mm (3-13 Hz), 1 g (13-200 Hz), 15 g shock (11 ms)
Humidity / Altitude
5…95 % RH (non-condensing/dripping); ≤ 1000 m no derating; 1000-2000 m 1 % current derate per 100 m
Dimensions (W×H×D)
45 mm × 325 mm × 245 mm
Weight
2.5 kg (5.5 lb)

Certifications

Conforms to EN/IEC 61800-5-1 and EN/IEC 61800-3. Product certified CE, UL, CSA, NOM, EAC, RCM.
