ATV320U75N4B Schneider
Original price
$962.50
-
Original price
$1,872.50
Original price
$962.50
$962.50
-
$1,872.50
Current price
$962.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

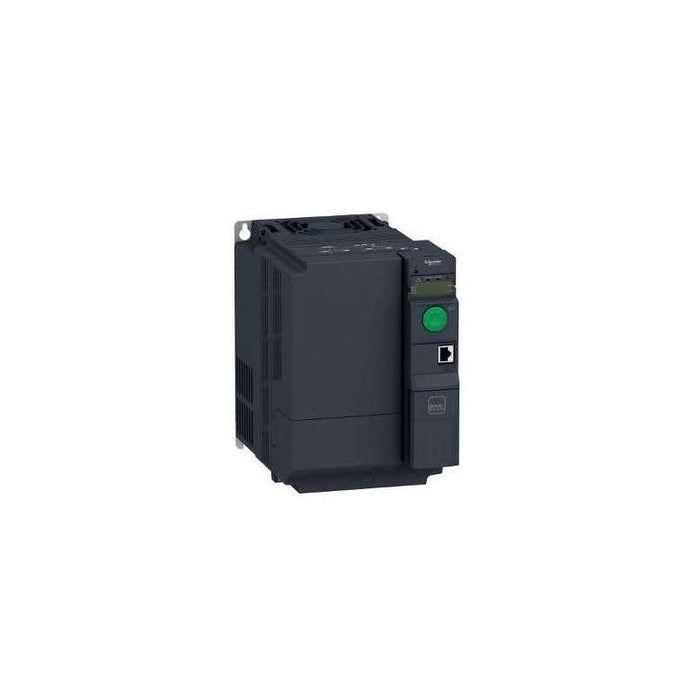

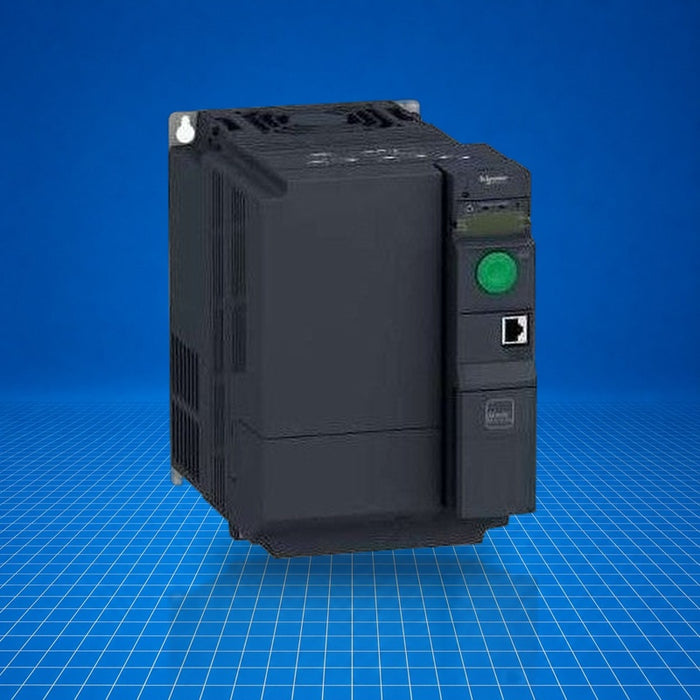

The ATV320U75N4B is a variable frequency drive in the Altivar Machine ATV320 family by Schneider Electric. It controls three-phase asynchronous or synchronous motors with a rated power of 7.5 kW (10 hp) and a supply voltage range of 380-500 V AC. Designed for vertical panel mounting ('book' format), it supports applications such as ventilation, pumping, packaging, material handling, textile machinery, and hoisting. The unit integrates safety functions and meets IEC/EN 61800-5-1 and IEC/EN 61800-3 standards.
Best Suited For
- Ventilation and pumping systems
- Packaging and material-handling machinery
- Textile and mechanical actuator applications
- Hoisting equipment in industrial automation
Motor Power
7.5 kW (10 hp)
Supply Voltage
380-500 V AC
Mounting
Vertical panel ("book" format)
Safety Function
STO, SS1 included
IP Rating
IP20
Technical Specifications
I/O & Electrical
Discrete inputs
7
Analog inputs
3
Discrete outputs
3
Analog outputs
1
Relay output current (min)
5 mA @ 24 V DC
Communication & Power
Communication ports
Option card (e.g. CANopen, EtherNet/IP, Modbus TCP, etc.)
Line current (max input per phase)
26.5 A
Apparent power
16.2 kVA (at 500 V heavy-duty)
Switching frequency
4 kHz nominal
Braking
Integrated brake chopper; DC injection to stop
Physical & Environmental
Dimensions (H×W×D)
308 × 150 × 232 mm
Weight
4.4 kg (9.7 lb)
Protection class
IP20
Operating temp tolerance (PCB)
Up to 60 °C without additional cooling
Frame size
4B
Transient overtorque
170-200 % of nominal motor torque
Certifications
CEULCSANOMEACRCM
Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3; CE, UL, CSA, NOM, EAC, RCM certified.
