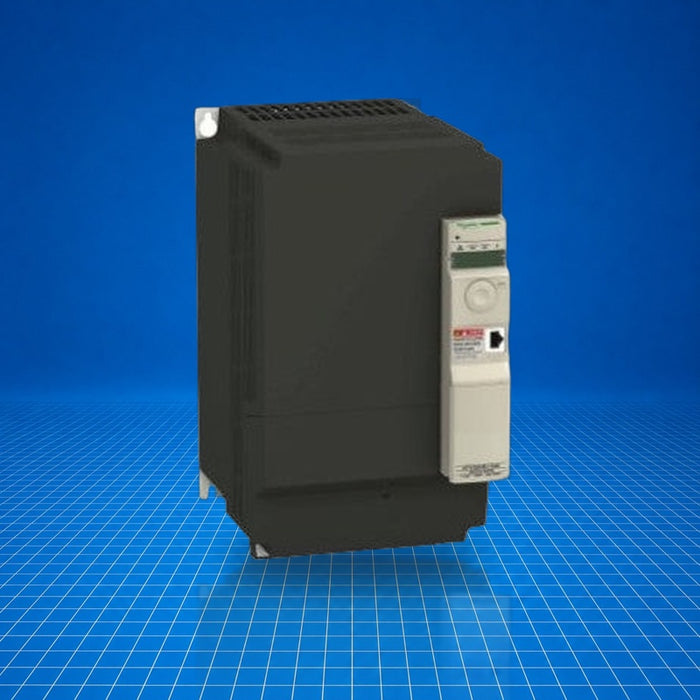

ATV32HD11N4 Schneider
Original price
$1,567.75
-
Original price
$7,082.87
Original price
$1,567.75
$1,567.75
-
$7,082.87
Current price
$1,567.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The ATV32HD11N4 is a variable-speed drive in Schneider Electric's Altivar 32 platform. Designed for 11 kW (15 HP) three-phase motors at 380-500 V, it controls motor speed and torque in machinery and process applications. It offers adjustable switching frequency (2-16 kHz), integrated EMC filtering, and protective functions. Although discontinued, it remains relevant for maintenance and legacy system applications. Part number ATV32HD11N4 is included for clarity.
Best Suited For
- Fixed-speed to variable-speed retrofit on legacy Altivar 32 systems
- Three-phase motor speed control in packaging or processing machinery
- Applications requiring adjustable switching frequency up to 16 kHz
- Scenarios needing integrated Modbus or CANopen communication
Power rating
11 kW (15 HP)
Supply voltage
380-500 V 3-phase
Nominal output current
27.7 A at 500 V
Switching frequency
2-16 kHz adjustable
Communications
Modbus, CANopen
Technical Specifications
I/O & Electrical
Supply voltage
380-500 V 3-phase
Supply frequency
50/60 Hz
Nominal output current
27.7 A at 500 V
Apparent power
31.7 kVA at 500 V
Communication & Power
Switching frequency
2-16 kHz adjustable
Braking torque
≤ 170 % with braking resistor
Transient overtorque
170-200 % of rated torque
Protection features
Overcurrent, phase-loss, short-circuit, overheating
Physical & Environmental
Weight
2.27 kg (5.00 lb)
Dimensions (W×H×D)
180 × 404 × 232 mm (EMC plate mounted)
Motor control frequency range
0.1-599 Hz
