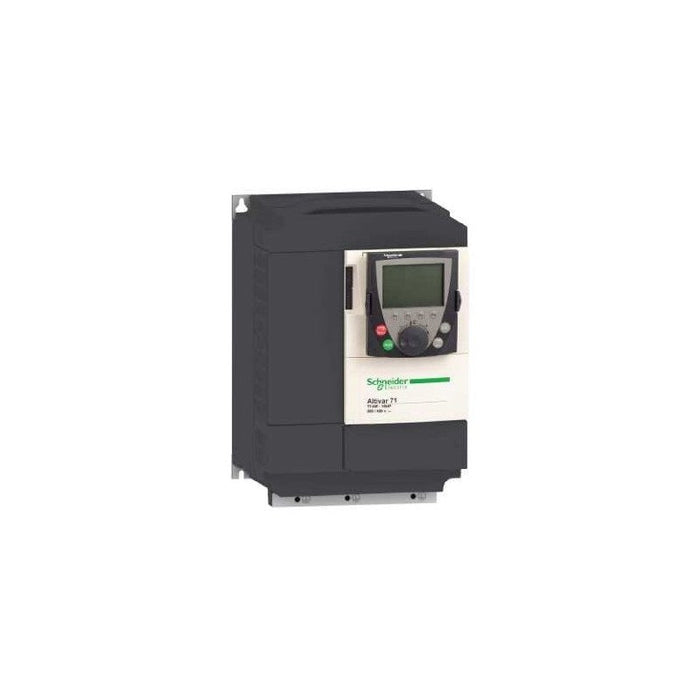

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

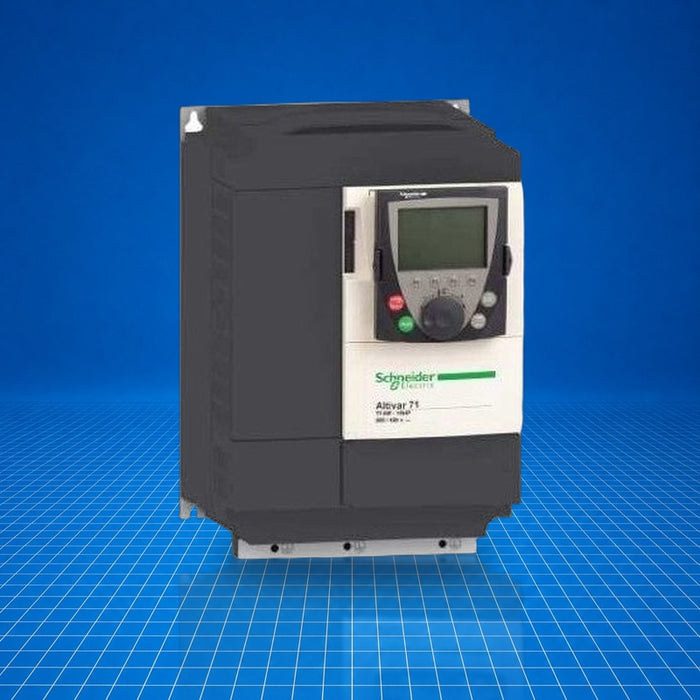

ATV71HD18N4 Schneider Electric Altivar 71 Variable speed drive
Original price
$1,959.98
-
Original price
$2,474.89
Original price
$1,959.98
$1,959.98
-
$2,474.89
Current price
$1,959.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The ATV71HD18N4 is a Schneider Electric Altivar 71 variable-frequency drive (VFD) intended for three-phase asynchronous motor speed control. It is part of the Altivar 71 family, designed for constant-torque industrial applications. The drive accepts a 380-480 V 50/60 Hz supply and delivers up to 18.5 kW (25 hp) output. It incorporates an EMC filter and a graphic terminal interface. ATV71HD18N4 accommodates vector control (with or without sensor) and flux vector regulation. Typical installations include pump, fan, conveyor, and general machinery speed regulation in manufacturing or process environments.
Best Suited For
- Three-phase motor speed control (18.5 kW/25 hp) from 380-480 V
- Applications needing EMC-filtered input
- Vector control (sensorless or with feedback)
- On-machine or panel-mounted installations with graphic interface
Supply voltage range
380…480 V 50/60 Hz
Output power
18.5 kW (25 hp)
Integrated interface
Graphic terminal
EMC filter
Included
Technical Specifications
I/O & Electrical
Supply voltage
380…480 V 50/60 Hz
Motor power rating
18.5 kW (25 hp)
Physical & Environmental
Discontinued
End of commercialization on 31 Dec 2020; end-of-service date varies by region (e.g. up to 31 Dec 2026) depending on locale
EMC filter
Yes (integrated)
