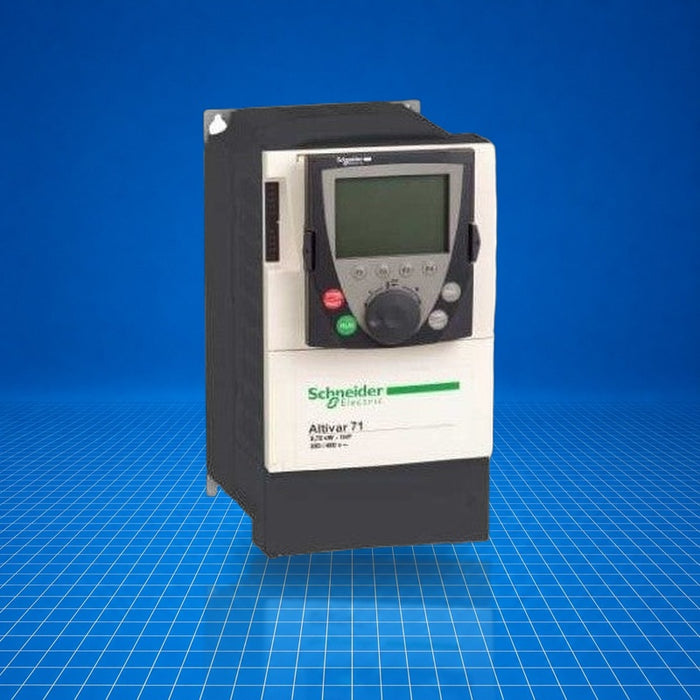

ATV71HU15N4 Schneider Electric Altivar 71 Variable speed drive
Original price
$597.00
-
Original price
$2,583.00
Original price
$597.00
$597.00
-
$2,583.00
Current price
$597.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The ATV71HU15N4 is a variable frequency drive from Schneider Electric's Altivar 71 series. It controls three-phase motors up to 1.5 kW (2 HP), accepting 380-480 VAC input and providing adjustable output frequency (0.1-599 Hz) and voltage (0-480 VAC). The drive includes an integrated EMC filter and supports vector control without feedback-providing motor speed regulation in applications such as conveyors, pumps, fans, and general machinery. It is discontinued as of June 16, 2026; Schneider recommends ATV930U22N4 or ATV340U15N4 as replacements.
Best Suited For
- Three-phase motor speed control (1.5 kW / 2 HP)
- Applications requiring integrated EMC filtering
- Settings where vector control without external encoder is acceptable
- Replacement for legacy Altivar 71 drives in maintenance
Input voltage
380-480 VAC
Power rating
1.5 kW (2 HP)
Output frequency
0.1-599 Hz
Input current
5.8 A max.
EMC filter
Integrated
Technical Specifications
I/O & Electrical
Input voltage
380-480 VAC
Frequency supply
47.5-63 Hz
Input current (max)
5.8 A
Output voltage
0-480 VAC
Output frequency range
0.1-599 Hz
Output current
3.4 A at 460 V; 4.1 A at 380 V
Max transient current
6.2 A (60 s), 6.2 A (2 s)
Communication & Power
Motor control type
Vector control without speed feedback
Physical & Environmental
Weight
4.20 kg (9.25 lbs)
