BMXP342020 Schneider
Original price
$519.96
-
Original price
$1,100.00
Original price
$519.96
$519.96
-
$1,100.00
Current price
$519.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

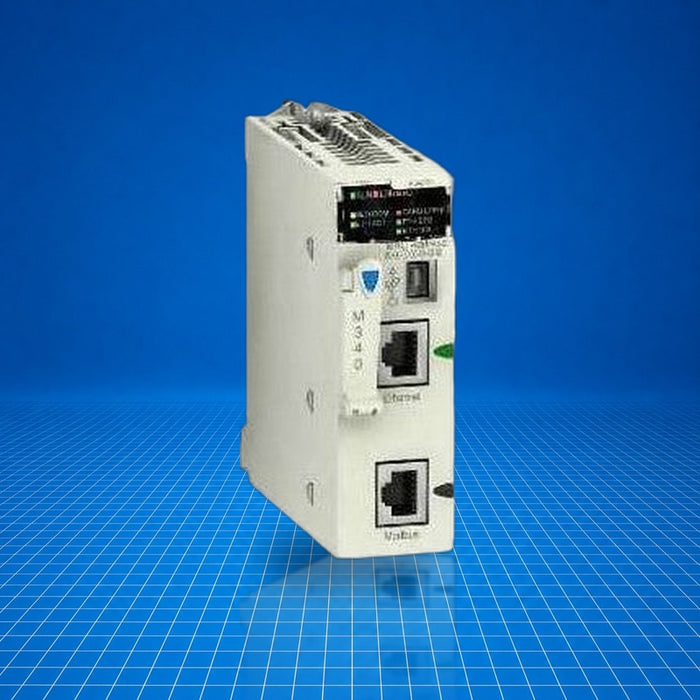

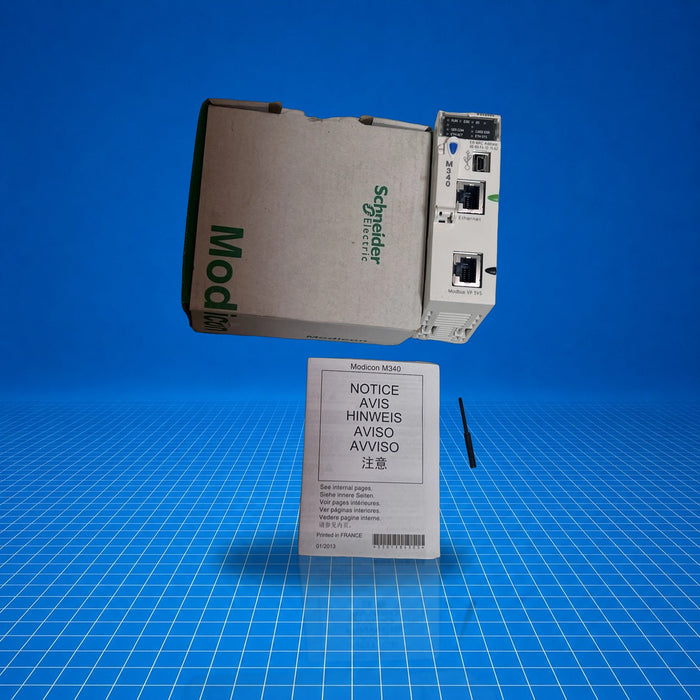

The BMXP342020 is a processor module within Schneider Electric's Modicon M340 automation platform. As an all-in-one CPU, it supports up to 1 024 discrete I/O and 256 analog I/O in multi-rack configuration. It provides Modbus serial communication and Ethernet network interfaces, and includes a 12 bit resolution analog capability. Typically deployed in mid-range industrial control systems such as manufacturing lines, water/waste treatment, and infrastructure automation, BMXP342020 serves as the central logic element managing distributed I/O and communication.
Best Suited For
- Distributed mid-range PLC installations
- Multi-rack Modicon M340 systems
- Modbus-Ethernet network integration
- Applications requiring up to 256 analog and 1 024 discrete I/O
Discrete I/O (multi-rack)
1024
Analog I/O (multi-rack)
256
Current Consumption @24 V DC
95 mA
Communication Ports
Modbus serial, Ethernet, USB
Technical Specifications
I/O & Electrical
Discrete I/O (single-rack)
704 I/O
Analog I/O (single-rack)
66 I/O
Communication & Power
Current consumption
95 mA at 24 V DC
Communications
Modbus serial (RS-485/RS-232C), Ethernet TCP/IP, USB (12 Mbit/s)
Physical & Environmental
Operating temperature
0 °C to 60 °C
Storage temperature
-40 °C to 85 °C
Humidity
10% to 95% non-condensing
Mounting
Rack
Weight
≈ 0.205 kg (0.45 lb)
Certifications
ULCERoHS
