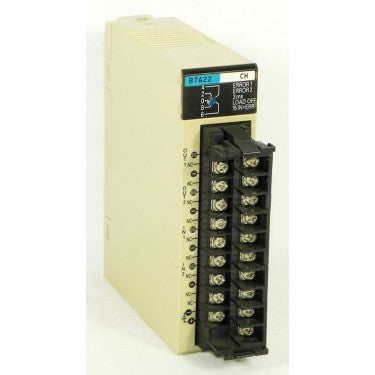

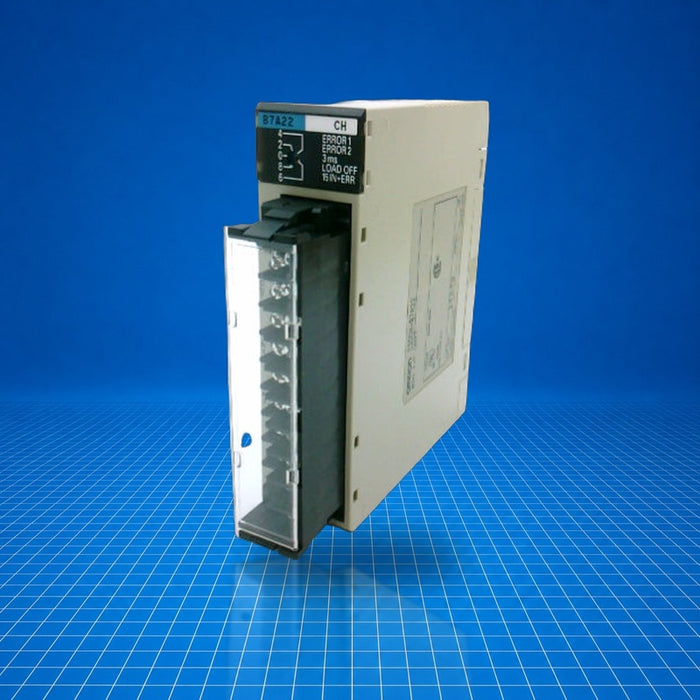

C200H-B7A22 Omron

Name: C200H-B7A22 Omron
Brand: Omron
SKU: C200H-B7A22
Price: 2212.01 USD
Availability: InStock

$2,212.01 - $2,539.28

$2,212.01

$2,212.01 - $2,539.28

$2,212.01

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (16) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The C200H-B7A22 is an Omron C200H series B7A Interface Unit. It provides interface connectivity between the PLC CPU bus and B7A Link terminals, offering 32 outputs and 32 inputs (or alternatively 30 inputs plus 2 error inputs). It supports one-way distributed multiplex transmission at standard and high-speed modes. The unit is used in modular PLC systems where remote distributed I/O via B7A Link is required, typically found in mid-to-large scale industrial control installations, manufacturing systems, and machine automation requiring flexible I/O expansion. Part number C200H-B7A22.

Best Suited For

Distributed I/O over B7A Link in C200H systems
Applications requiring configurable input/output word mapping
Environments needing both standard and high-speed transmission
Mid-to-large scale modular PLC installations

I/O points

32 outputs, 32 inputs (or 30 inputs + 2 error inputs)

Transmission distance

Standard 500 m max, high-speed 100 m max

Transmission delay

Standard typ 19.2 ms (max 31 ms), high-speed typ 3 ms (max 5 ms)

Power supply

5 V DC internal (100 mA max); external 12 - 24 V DC ±10%, ≥ 0.08 A

Technical Specifications

I/O & Electrical

I/O configuration

32 outputs, 32 inputs (or 30 inputs + 2 error inputs)

Words allocated per unit

4 words (2 outputs then 2 inputs)

Minimum input time

Standard 16 ms, high-speed 2.4 ms

Transmission method

One-way distributed multiplex

Communication & Power

Internal supply

5 V DC, 100 mA max

External supply

12-24 V DC ±10%, minimum 0.08 A

Physical & Environmental

Weight

0.26 kg (0.56 lbs)

Certifications

EN 61131-2

Complies with EN 61131-2 (self-declaration).
