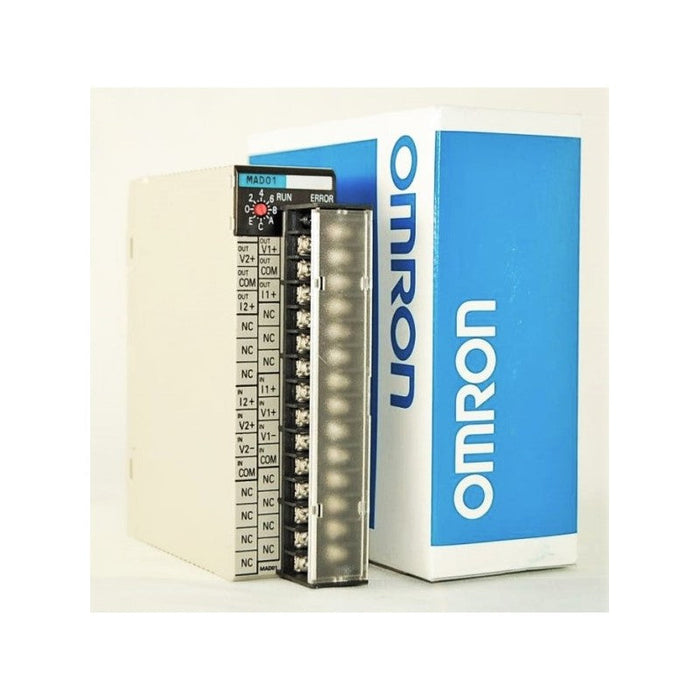

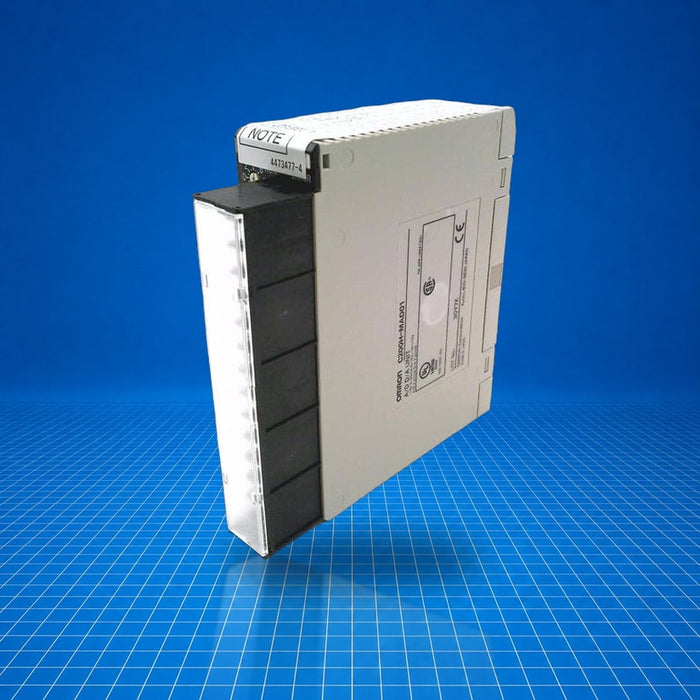

C200H-MAD01 Omron
Original price
$450.00
-
Original price
$1,097.25
Original price
$450.00
$450.00
-
$1,097.25
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Part C200H-MAD01 is a C200H series analog output unit for Omron programmable controllers. It provides two independent analog outputs with selectable ranges (1-5 V, 0-10 V, -10-10 V, or 4-20 mA). The unit integrates into C200H or CS1 series expansion racks. In a control system, it performs analog signaling to external devices such as valves, actuators, or indicators. Applications include process control loops, proportional control of drives, and interface to analog instrumentation.
Best Suited For
- Process control where a PLC must drive analog outputs
- Integration into C200H or CS1 expansion racks
- Analog control of field devices (valves, actuators, instruments)
Analog outputs
2 independent
Signal ranges
1-5 V, 0-10 V, -10 to 10 V, 4-20 mA
Resolution
1/4000
Conversion speed
1 ms/output
Current consumption
0.10 A (5 V system), 0.20 A (26 V system)
Technical Specifications
I/O & Electrical
Outputs
2 independent analog outputs
Signal range
1-5 V, 0-10 V, -10 to 10 V, 4-20 mA
Communication & Power
Current consumption
0.10 A (5 V system), 0.20 A (26 V system)
Physical & Environmental
Mounting
EMI removable terminal block, fits C200H/CS1 expansion racks
Rack compatibility
C200HX/HG/HE, CS1 expansion racks
Certifications
EN61131-2
Conforms to EN61131-2 (self-declaration) per Omron model compliance listing
