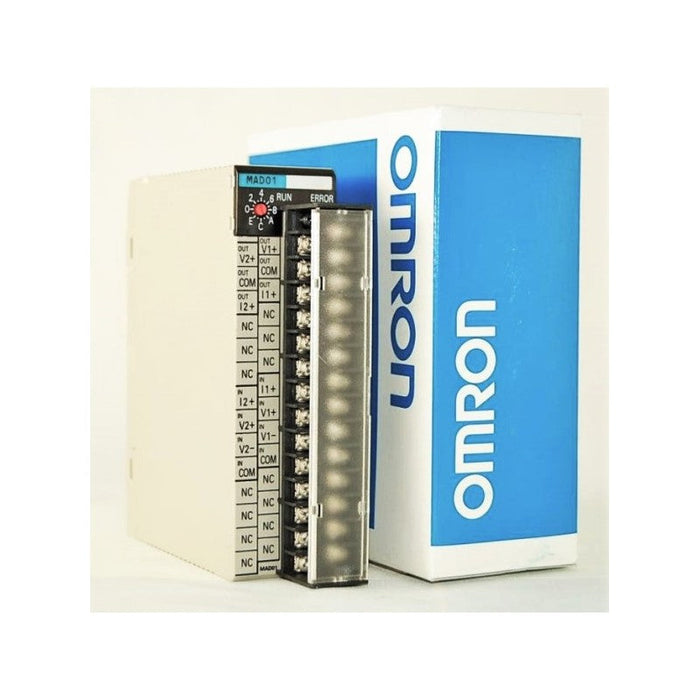

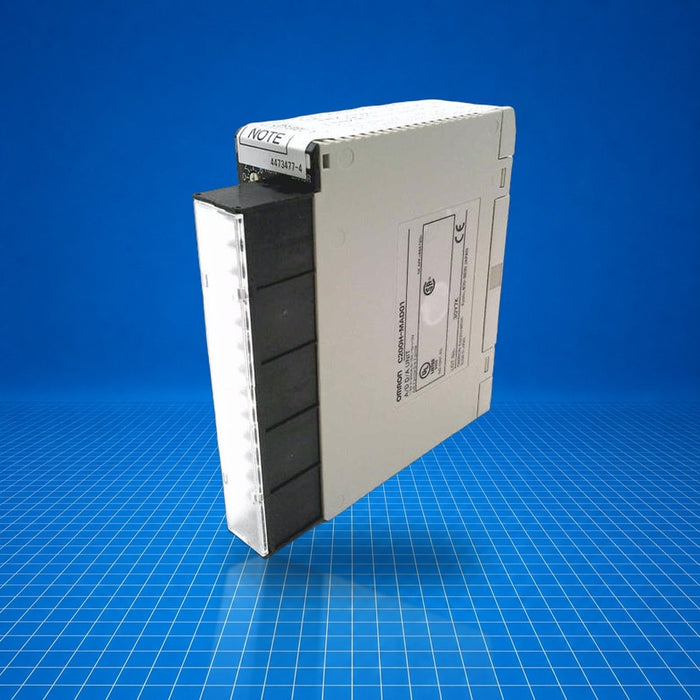

C200HMAD01 Omron
Original price
$1,306.25
-
Original price
$1,669.68
Original price
$1,669.68
$1,306.25
-
$1,669.68
Current price
$1,669.68
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The C200HMAD01 is an Omron C200H-series Special I/O Unit providing 2 analog outputs and 2 analog inputs. It interfaces with C200H CPU or expansion I/O racks, converting and exchanging process signals for control logic. Typical use cases include PID loop control, analog signal monitoring, and industrial process automation in manufacturing or chemical processing environments. The C200HMAD01 processes both voltage and current signals with defined resolution and conversion timing.
Best Suited For
- Analog feedback for PID control loops
- Signal conversion in C200H rack-mounted systems
- 2-channel analog output control
- 2-channel analog input monitoring
Analog I/O Channels
2 inputs / 2 outputs
Signal Ranges
Voltage & current (e.g. 0-10 V, 4-20 mA)
Resolution
1/4000
Conversion Time
1 ms per channel
Technical Specifications
I/O & Electrical
Analog inputs
2 independent channels
Analog outputs
2 independent channels
Input signal ranges
1-5 V, 0-10 V, -10-10 V, 4-20 mA
Output signal ranges
1-5 V, 0-10 V, -10-10 V, 4-20 mA
Resolution
1/4000
A/D and D/A conversion time
1 ms per input/output channel
Communication & Power
External connection
Removable terminal block
Unit numbers words
0.10 A (5 V system); 0.20 A (26 V system)
Physical & Environmental
Mountable racks
C200H CPU Rack or Expansion I/O Rack
Other rack compatibility
CS1 Expansion Rack, C200H-… (see model compatibility)
