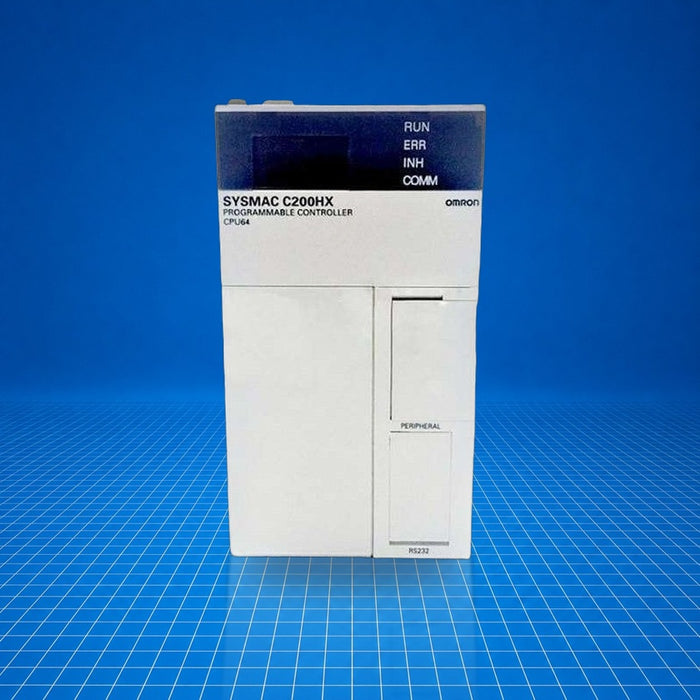

C200HX-CPU64 Omron
Original price
$555.00
-
Original price
$4,580.65
Original price
$555.00
$555.00
-
$4,580.65
Current price
$555.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The C200HX-CPU64 is a Central Processing Unit module in Omron's C200H PLC series that executes control programs and manages data memory within industrial automation systems. It installs on a backplane and supports up to three expansion I/O racks, enabling distributed I/O configurations. Typical use cases include mid-range machine control, manufacturing line automation, and process monitoring setups where compact CPU performance and adequate memory capacity are required. C200HX-CPU64 handles program logic execution, I/O scanning, and communications within the C200H platform.
Best Suited For
- Mid-range machine control systems
- Manufacturing line logic processing
- Distributed I/O via up to 3 racks
- Applications requiring modest program and data memory
Program memory
31.2K words
Data memory
6K words
Max I/O points
1,184 points
Expansion racks supported
3 racks
Protection class
IP30
Technical Specifications
I/O & Electrical
Operating voltage range
85 to 132 V AC / 170 to 264 V AC / 19.2 to 28.8 V DC
Rated supply voltage
100 to 120 V AC / 200 to 240 V AC / 24 V DC
Max I/O points
1,184 points
Communication & Power
Communication interface
RS-232C
Physical & Environmental
Weight
5.94 lbs (2.69 kg)
Ambient operating temperature
0 to 55 °C
Storage temperature
-25 to 70 °C
Humidity tolerance
10 to 90% RH, non-condensing
Mounting position
Backplane mount
Protection
IP30
