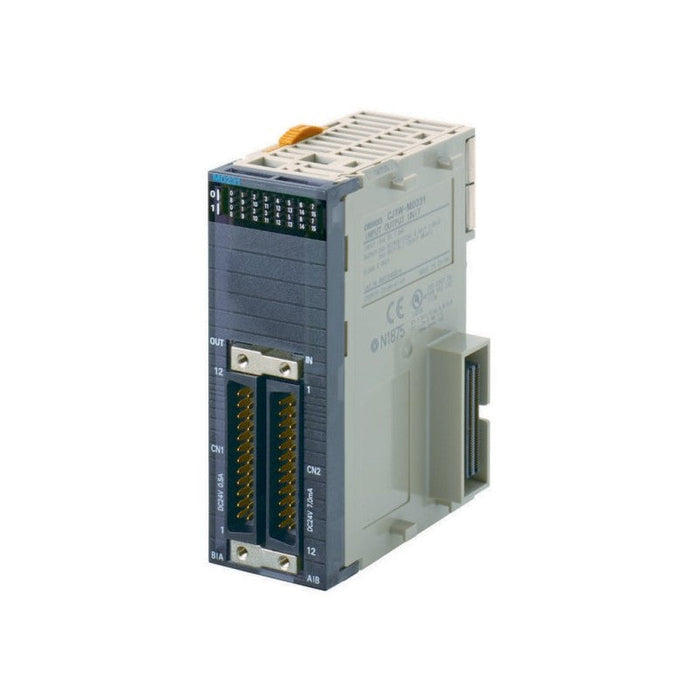

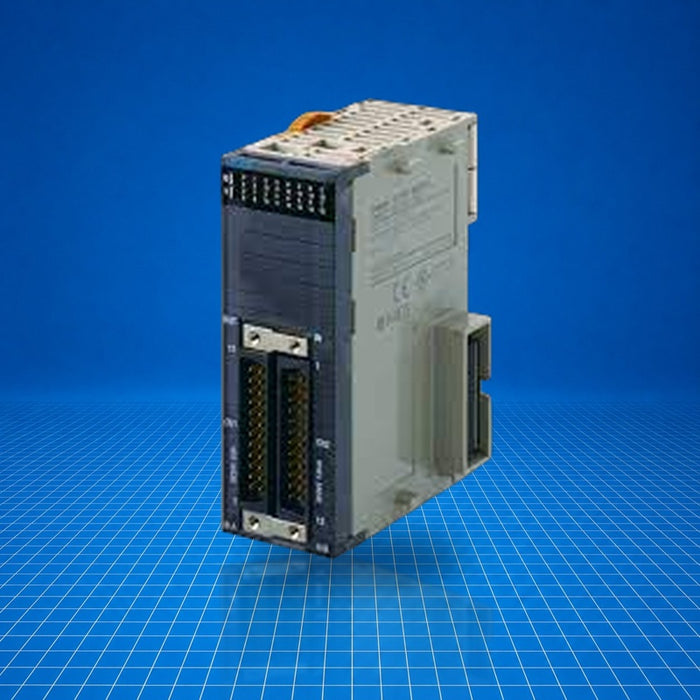

CJ1W-MD231 Omron
Original price
$560.00
-
Original price
$791.95
Original price
$560.00
$560.00
-
$791.95
Current price
$560.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ1W-MD231 is an Omron CJ-series mixed I/O module combining 16 sinking DC inputs and 16 transistor (sinking) DC outputs in one compact unit. It connects to CJ/NJ CPU units via Fujitsu/OTAX 24-pin connectors. It enables both input sensing and output switching within a single module, simplifying installation and conserving rack space. The unit suits standard industrial automation tasks including discrete I/O expansion in manufacturing lines and machine control. CJ1W-MD231 integrates seamlessly into Omron CJ1 systems for mid-range control architectures.
Best Suited For
- Discrete I/O expansion on CJ1/NJ platforms
- Applications requiring both inputs and outputs in one module
- Compact rack installations with limited space
- Sinking output control of DC loads
- Integration into standard Omron PLC environments
Inputs / Outputs
16 / 16
Input voltage range
20.4-26.4 V DC
Max output current
0.5 A per point, 2.0 A total
Module weight
90 g max.
Internal power consumption
5 V DC 130 mA max.
Technical Specifications
I/O & Electrical
Input rated voltage
24 V DC
Operating input voltage
20.4-26.4 V DC
Input impedance
3.3 kΩ
Input current (typical)
7 mA (at 24 V DC)
Leakage current
0.1 mA max.
ON voltage / ON current
≥ 14.4 V DC / ≥ 3 mA
OFF voltage / OFF current
≤ 5 V DC / ≤ 1 mA
Max inrush current
4.0 A per point, 10 ms max.
Residual voltage
1.5 V max.
Output max load current
0.5 A/point, 2.0 A/unit
Simultaneously ON points
75 % (at 24 V DC)
ON response time
0.1 ms max.
OFF response time
0.8 ms max.
Communication & Power
External power supply for outputs
10.2-26.4 V DC, ≥ 20 mA
Insulation resistance
≥ 20 MΩ (100 V DC)
Dielectric strength
1,000 VAC for 1 min (≤ 10 mA leakage)
Internal power consumption
5 V DC, 130 mA max.
Physical & Environmental
Weight
≤ 90 g
Connector type
Fujitsu/OTAX 24-pin (inputs & outputs)
Circuit configuration
CN1 (outputs), CN2 (inputs)
Certifications
EN61131-2EN61000-6-4EN61000-6-2
