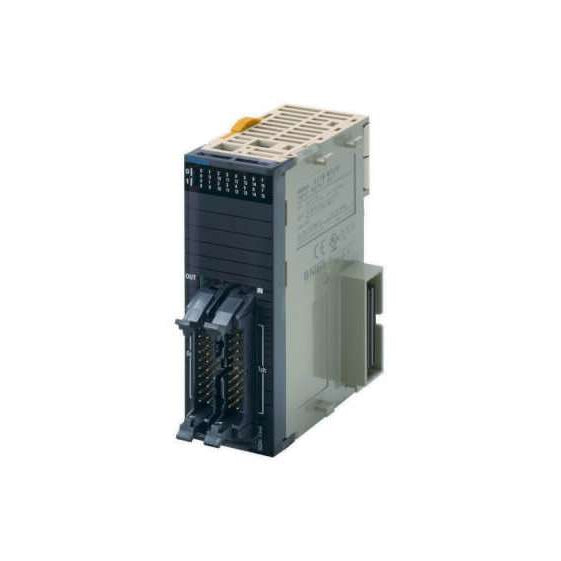

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

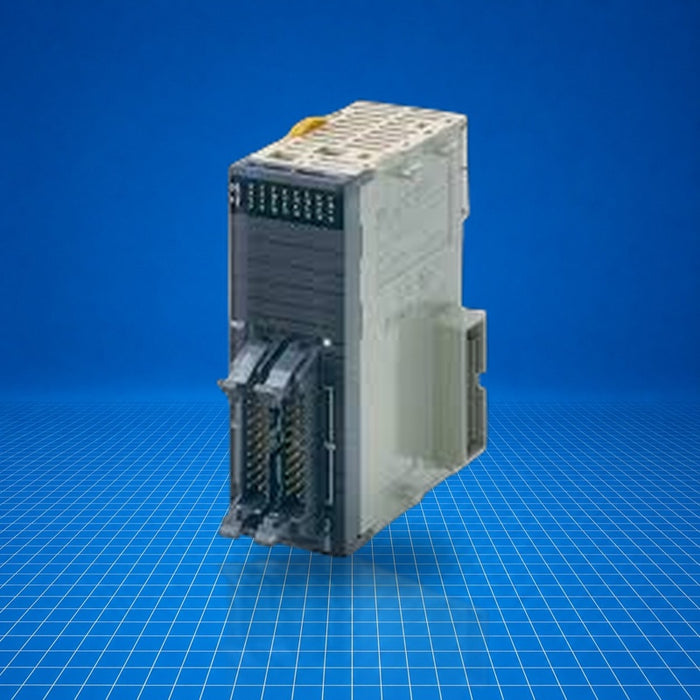

CJ1W-MD232 Omron
Original price
$1,141.20
-
Original price
$1,247.40
Original price
$1,247.40
$1,141.20
-
$1,247.40
Current price
$1,247.40
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Omron CJ1W-MD232 is a CJ-series mixed I/O unit providing sixteen DC input points and sixteen transistor (sourcing) output points, intended for integration into Omron CJ1 or NJ programmable controller racks. It allows control system designers to combine input and output channels in a single compact module via dual MIL connectors. Typical applications include mid-density signal interfacing on machinery control panels, modular I/O expansion in factory automation cells, and replacement or retrofit in existing Omron CJ1 installations. The part number is CJ1W-MD232.
Best Suited For
- Mid-density I/O expansion for Omron CJ1 systems
- Machine interface modules with combined inputs/outputs
- Modular upgrades in control panel configurations
- Replacement of mixed I/O units in OEM systems
DC Inputs / Outputs
16 / 16
Rated Voltage
24 V DC
Max Output Load Current
0.5 A/point, 2.0 A/unit
Connectors
MIL (20-pin × 2)
Weight
100 g (max)
Technical Specifications
I/O & Electrical
Input voltage range
20.4-26.4 V DC
Output rated voltage
24 V DC
Max load current (per point)
0.5 A
Max load current (unit)
2.0 A
Input impedance
3.3 kΩ
Typical input current
7 mA (at 24 V DC)
Leakage current
0.1 mA max.
Residual voltage (output)
1.5 V max.
ON voltage/current
14.4 V DC min. / 3 mA min.
OFF voltage/current
5 V DC max. / 1 mA max.
ON response time
0.5 ms max. (setup adjustable 0-32 ms, actual min 20 µs)
OFF response time
1.0 ms max. (setup adjustable 0-32 ms, actual min 400 µs)
Load short-circuit protection
Detection current 0.7-2.5 A, auto restart
Communication & Power
External I/O power supply
20.4-26.4 V DC, 40 mA min.
Internal current consumption
5 V DC 130 mA max.
Physical & Environmental
Weight
100 g max.
Insulation resistance
20 MΩ min. (at 100 V DC)
Dielectric strength
1,000 VAC, 1 min, 10 mA max leakage
Certifications
EN61131-2EN61000-6-4EN61000-6-2
