CJ1W-NC433 Omron
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

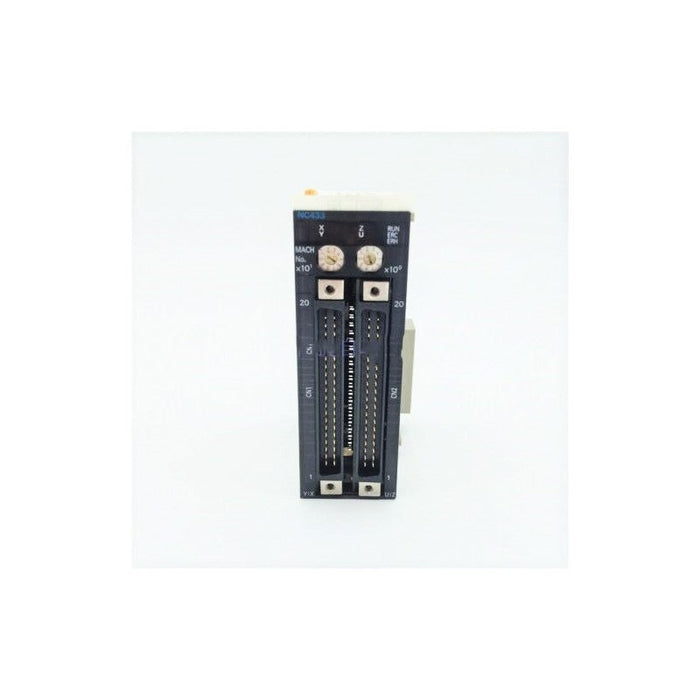

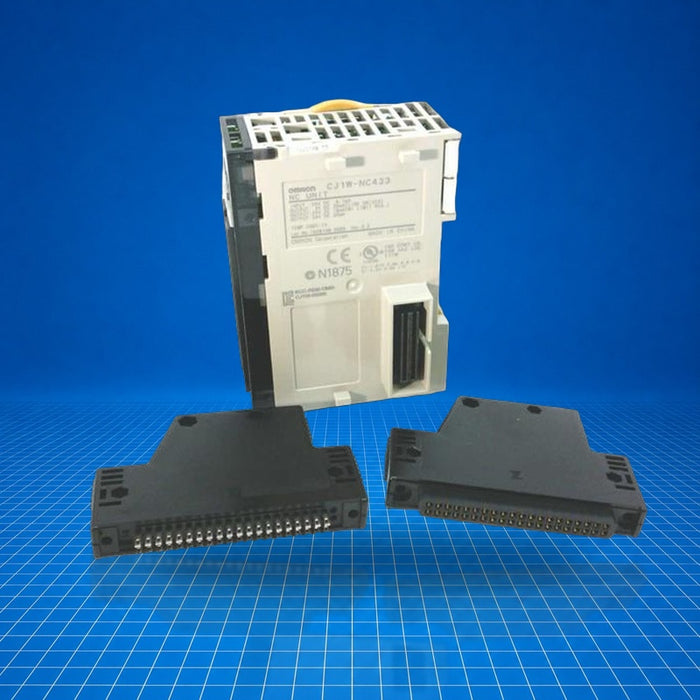

The CJ1W-NC433 is an Omron CJ-Series Position Control Unit intended for programmable controllers. It provides open-loop pulse-train positioning with line-driver outputs for up to four independent control axes. It occupies two unit numbers on the CJ1 bus, drawing control signals from the PLC to generate synchronized pulse and direction outputs. It is employed in multi-axis positioning tasks such as indexing, pick-and-place, or gantry motion using compatible servo or stepping drives. CJ1W-NC433 integrates into CJ-Series PLC racks and enables coordinated motion within machine automation systems.
Best Suited For
- 4-axis pulse-train open-loop motion applications
- Integration in CJ1-Series PLC racks
- Indexing or pick-and-place systems
- Gantry and synchronized multi-axis positioning
