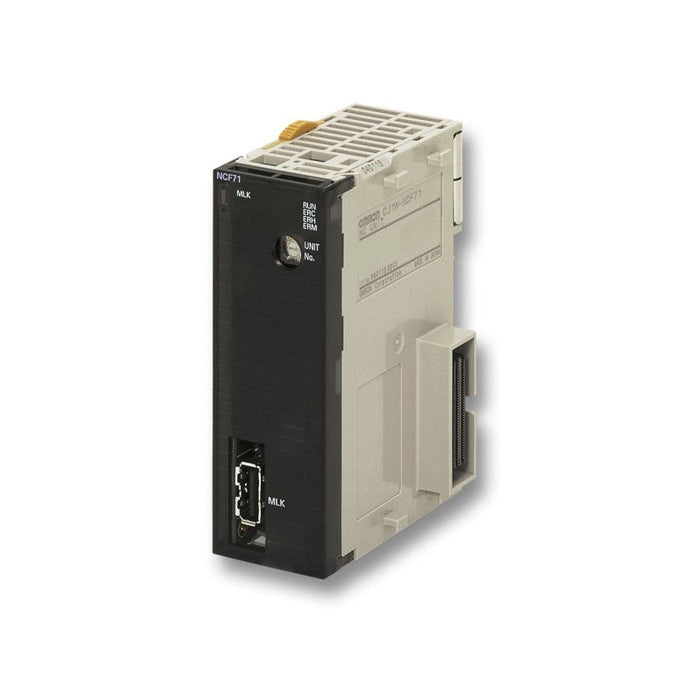

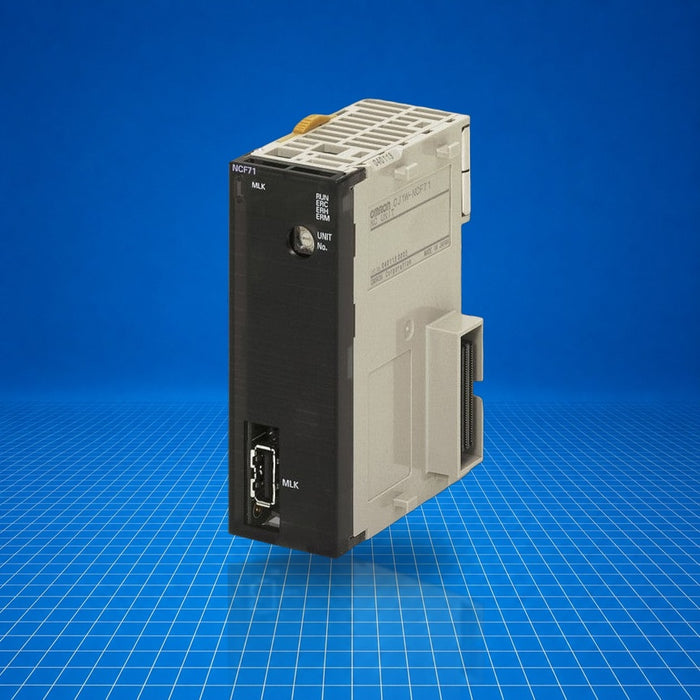

CJ1W-NCF71 Omron
Original price
$450.00
-
Original price
$1,375.00
Original price
$450.00
$450.00
-
$1,375.00
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ1W-NCF71 is an Omron CJ-series CPU bus Position Control Unit (PCU) that supports MECHATROLINK-II synchronous motion control for up to 16 axes. Designed to be installed in a CJ1 system, it enables positional, speed, or torque control of Omron G-series and G5-series servo drives via ladder programming. Typical applications include multi-axis motion control tasks such as coordinated positioning in assembly lines or packaging machinery. The compact body (31 × 90 × 65 mm) installs like a standard CJ module and occupies minimal rack space.
Best Suited For
- Multi-axis coordinated motion control (up to 16 axes)
- Integration with Omron CJ1 PLC systems
- MECHATROLINK-II servo networks
- On-machine servo parameter setup and monitoring via PLC
Controlled axes
16
Internal current consumption
360 mA at 5 V DC
Dimensions (W × H × D)
31 × 90 × 65 mm
Ambient operating temperature
0 to 55 °C
Technical Specifications
I/O & Electrical
Internal current consumption
360 mA at 5 V DC
Unit number settings
0 to F
Communication & Power
Communication interface
MECHATROLINK-II synchronous (10 Mbps)
Max controlled axes
16 axes
Memory allocation (CPU bus)
25 words (15 output, 10 input)
Axis memory allocation
50 words per axis (25 output, 25 input)
Physical & Environmental
Dimensions (W × H × D)
31 × 90 × 65 mm
Weight
95 g max.
Ambient operating temperature
0 to 55 °C
Certifications
CEcULusC-tick
Approved standards: CE, cULus, C-tick
