CJ1W-OD212 Omron
Original price
$479.96
-
Original price
$599.96
Original price
$479.96
$479.96
-
$599.96
Current price
$479.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

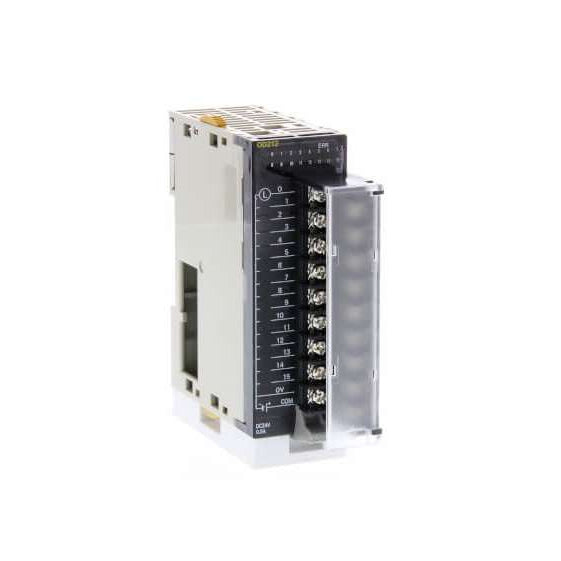

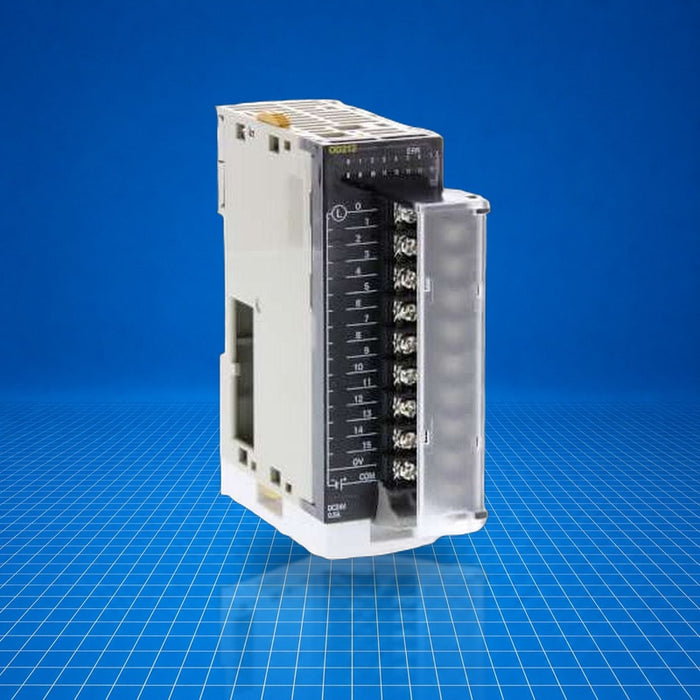

The CJ1W-OD212 is an Omron CJ-series 16-point transistor sourcing output unit intended for connection to CJ/NJ PLC systems. It provides 16 discrete sourcing outputs for control of external devices at 24 V DC and supports short-circuit detection and automatic restart. The module integrates into the CJ1 basic I/O architecture and is typically used for actuation tasks such as solenoid, relay, or indicator control in manufacturing, packaging, or process environments. CJ1W-OD212 is field-replaceable within I/O racks and interfaces via standard MIL or terminal block connections.
Best Suited For
- Expanding discrete output capacity of CJ/NJ PLC racks
- Driving 24 VDC solenoids or lamps with short-circuit protection
- High-density output requirements (16 points)
- Industrial OEM machinery or process control panels
Output points
16
Supply voltage
24 V DC
Max load current
0.5 A/point, 5.0 A/unit
Short-circuit protection
Yes (automatic restart)
Weight
120 g max
Technical Specifications
I/O & Electrical
Number of outputs
16 sourcing outputs
Operating load voltage range
20.4 to 26.4 V DC
Maximum load current
0.5 A/point, 5.0 A/unit
Leakage voltage (residual)
1.5 V max
ON response time
0.5 ms max
OFF response time
1.0 ms max
Load short-circuit protection
Detection current 0.7-2.5 A; automatic restart after clearance
Communication & Power
Internal current consumption (5 V rail)
100 mA max
External power supply requirement
20.4 to 26.4 V DC, 40 mA min
Insulation resistance
20 MΩ (external terminals to GR) at 100 V DC
Dielectric strength
1,000 VAC for 1 min (external terminals to GR at ≤10 mA leakage)
Physical & Environmental
Weight
120 g max
Connector type
MIL connector (40-pin)
Certifications
ULcULusNKLloydCE
