Product Overview

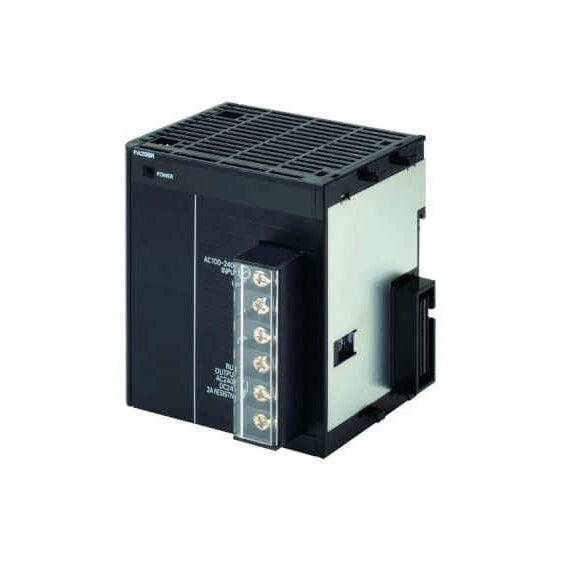

The CJ1W-PA205R is an AC power supply unit in Omron's CJ1 programmable controller series. It converts a wide-range 100-240 V AC (85-264 V AC, 47-63 Hz) input to deliver 5 V DC logic power (5.0 A) and 24 V DC relay power (0.8 A), up to 25 W total. It includes a RUN status output, enabling operational monitoring in a control system. It is typically used to supply power to a CJ1 CPU rack in manufacturing, machine control, batch processing, or similar industrial automation environments. Part number: CJ1W-PA205R.
Best Suited For
- Powering CJ-series CPU racks in machine control systems
- Industrial manufacturing PLC installations
- Applications requiring RUN status monitoring
- Backup or replacement AC power source in CJ1 systems
Input voltage range
100-240 V AC
Output capacity
5 V DC @ 5.0 A; 24 V DC @ 0.8 A
Total power
25 W
RUN output
SPST-NO contact (250 V AC 2 A resistive)
Weight
350 g max.
Technical Specifications
I/O & Electrical
Input voltage
100-240 V AC (85-264 V AC, 47-63 Hz)
Inrush current
15 A/8 ms (100-120 V AC), 30 A/8 ms (200-240 V AC)
Output 5 V DC current
5.0 A (including CPU)
Output 24 V DC current
0.8 A
Total power output
25 W
RUN output contact rating
250 V AC 2 A (resistive), 120 V AC 0.5 A (inductive), 24 V DC 2 A
Communication & Power
Power consumption
100 VA max.
Physical & Environmental
Weight
350 g max.
Mounting
Panel mounting in CPU rack
Operating temperature
0 to 55 °C
Storage temperature
-20 to 70 °C (excluding battery)
Ambient humidity
10% to 90% (no condensation)
Insulation resistance
20 MΩ min. at 500 V DC between AC external and GR
Dielectric strength
2,300 V AC, 50/60 Hz, 1 min; leakage ≤ 10 mA
Noise immunity
2 kV (IEC 61000-4-4)
Vibration resistance
IEC 60068-2-6, 5-8.4 Hz 3.5 mm; 8.4-150 Hz 9.8 m/s²
Shock resistance
IEC 60068-2-27, 147 m/s², 3× in X, Y, Z
Grounding
< 100 Ω
Certifications
cULusCE
Conforms to cULus and EC Directives.
