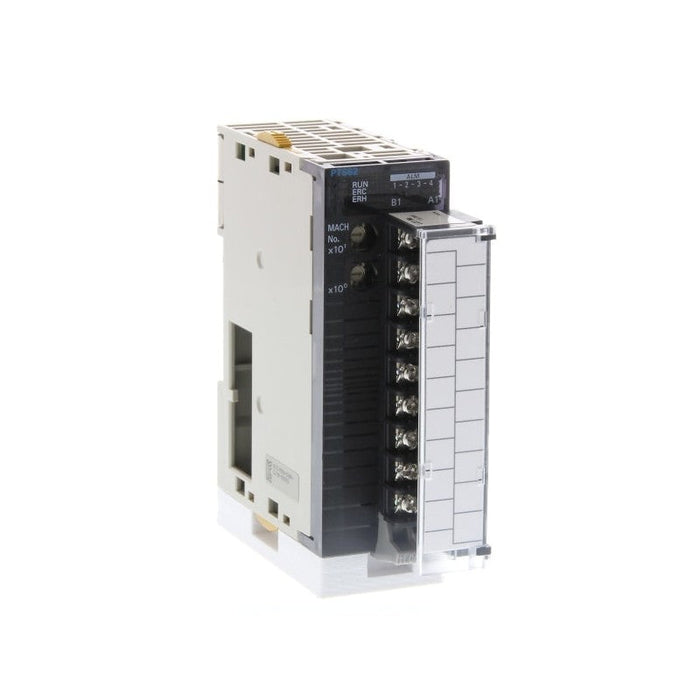

CJ1W-PTS52 Omron

Name: CJ1W-PTS52 Omron
Brand: Omron
SKU: CJ1W-PTS52
Price: 2173.71 USD
Availability: InStock

$962.50 - $2,173.71

$2,173.71

$962.50 - $2,173.71

$2,173.71

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CJ1W-PTS52 is an isolated-type resistance thermometer input unit in the Omron CJ1 Special I/O family. It accepts four Pt100 or JPt100 inputs and performs resistance thermometer signal conditioning, conversion, and scaling for the CJ-series controller. Installed in a CJ-series CPU or expansion rack, it provides precise temperature monitoring for industrial applications such as process temperature measurement, thermal system feedback, and environmental control functions. CJ1W-PTS52 supports both JIS and IEC standards and integrates with standard CJ1 system backplane data exchange.

Best Suited For

Temperature monitoring via Pt100/JPt100 sensors
Process control systems requiring analog temperature feedback
CJ-series CPU or expansion rack integration
Applications needing sensor error detection and alarm signaling

Sensor inputs

4 Pt100/JPt100

Conversion time

250 ms/4 inputs

Accuracy (25 °C)

± 0.3 % of PV or ± 0.8 °C

Power supply

5 V DC @ 250 mA max

Dimensions (W × H × D)

31 × 90 × 65 mm

Technical Specifications

I/O & Electrical

Sensor type

Pt100 (JIS, IEC), JPt100

Sensing method

3-wire

Sensor error detection

Yes; hardware detection approx. 0.5 s

External alarm outputs

NPN, 20.4-26.4 V DC, max 100 mA, leakage ≤ 0.3 mA, residual ≤ 3 V

Communication & Power

Data exchange (to CPU)

10 words/Unit (process values, alarms, sensor errors)

Settings area (from CPU)

100 words/Unit

Power consumption

5 V DC at 250 mA max

Physical & Environmental

Warm-up time

10 min

Conversion period

250 ms/4 inputs

Dimensions (W×H×D)

31 × 90 × 65 mm (height incl. backplane: 145 mm)

Weight

150 g max

Certifications

UL (Class I Div. 2)cULus (Class I Div. 2)CE

UL (Class I Division 2), cULus (Class I Division 2), CE
