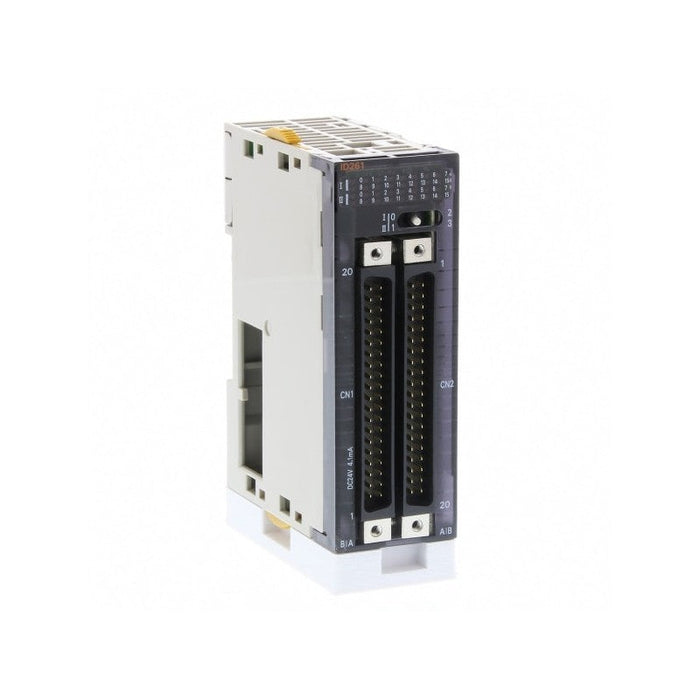

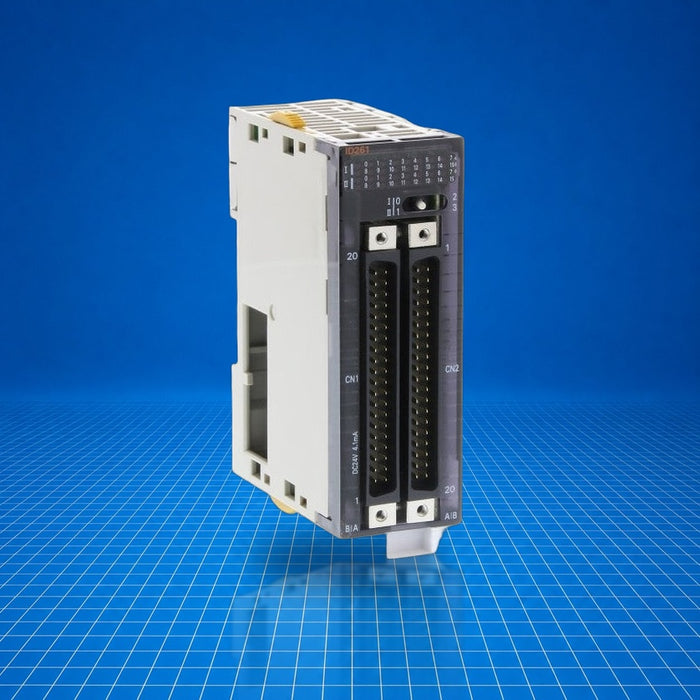

CJ1W-ID261 Omron
Original price
$400.00
-
Original price
$1,372.20
Original price
$400.00
$400.00
-
$1,372.20
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ1W-ID261 is a 64-point DC input unit within Omron's CJ1 modular PLC input/output series. It installs on the CJ1 or NJ controller racks and connects via Fujitsu/OTAX-compatible dual 40-pin connectors. The module monitors up to 64 discrete 24 V DC signals grouped in four commons (16 points per common), making it suitable for medium-density digital sensing in industrial control systems. Common applications include machine I/O expansion, status monitoring, and integration with sensor arrays in institutional environments.
Best Suited For
- Expanding discrete 24 V DC inputs on CJ1/NJ PLC racks
- Monitoring multiple digital sensor channels grouped by common wiring
- Machine-level status input scanning
- Control panels requiring a 64-point DC input interface
Input points
64
Rated voltage range
20.4-26.4 V DC
Input current (typical, per point)
4.1 mA @ 24 VDC
Response time (max)
8 ms (ON/OFF)
Backplane current draw
90 mA max.
Technical Specifications
I/O & Electrical
Input voltage range
20.4-26.4 V DC
Rated input voltage
24 V DC
Input impedance
5.6 kΩ
Input current (typical)
4.1 mA @ 24 V DC
ON level (min)
19 V DC, 3 mA
OFF level (max)
5 V DC, 1 mA
Number of inputs
64 (16 points/common, 4 commons)
Simultaneous ON per common
50%
Communication & Power
Backplane current consumption
90 mA max.
Physical & Environmental
Weight
110 g max.
Connector type
Fujitsu/OTAX-compatible (2 × 40-pin)
Certifications
UC1N (NK)L (Lloyd)CE
