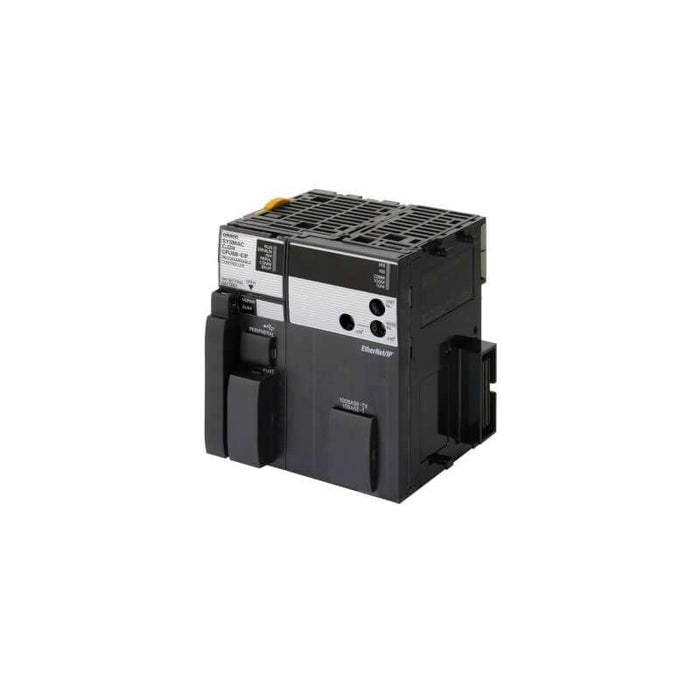

CJ2H-CPU64-EIP Omron
Original price
$695.72
-
Original price
$2,475.00
Original price
$695.72
$695.72
-
$2,475.00
Current price
$695.72
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ2H-CPU64-EIP is a mid-range programmable logic controller CPU module from the Omron CJ2H series featuring a built-in EtherNet/IP port. This CPU serves as the control core for modular PLC systems, supporting up to 40 units (including expansion racks) and offering deterministic control and networked I/O capability. Typical applications include machine automation tasks, distributed control over EtherNet/IP networks, and integration into modular systems requiring both spatial expansion and communication flexibility.
Best Suited For
- EtherNet/IP-based modular PLC systems
- Mid-level program size and I/O capacity applications
- Panel-mounted machine controls
- Automation systems requiring networked tag data exchange
User program memory
50 K steps
I/O capacity
2,560 points
Current consumption
5 V DC, 0.82 A
Operating temperature
0 to 55 °C
CPU rack dimensions
90 mm × 65 mm × 80 mm (H × D × W)
Technical Specifications
I/O & Electrical
I/O capacity
2,560 points
Input voltage
5 V DC
Current consumption
0.82 A
Communication & Power
EtherNet/IP port
Built-in 10Base-T/100Base-TX CIP communications
Tag data link connections
256 connections
Packet interval
0.5 to 10,000 ms (0.5-ms increments)
Program memory
50 K steps
Data memory (EM)
32 K words × 4 banks
Physical & Environmental
Dimensions (H×D×W)
90 mm × 65 mm × 80 mm
Weight
280 g or less
Operating temperature
0 to 55 °C
Storage temperature
-20 to 70 °C (excluding battery)
Operating humidity
10% to 90% (no condensation)
Pollution degree
2 or less
Noise immunity
2 kV (IEC 61000-4-4)
Vibration resistance
IEC 60068-2-6 (5-150 Hz, 9.8 m/s²)
Shock resistance
IEC 60068-2-27 (147 m/s²)
Altitude
Up to 2,000 m
Certifications
cULusNKLREC Directives
