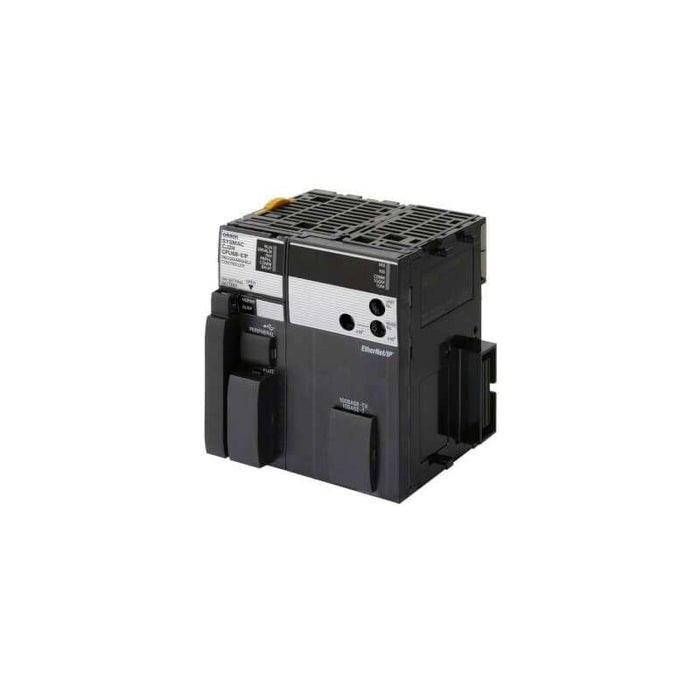

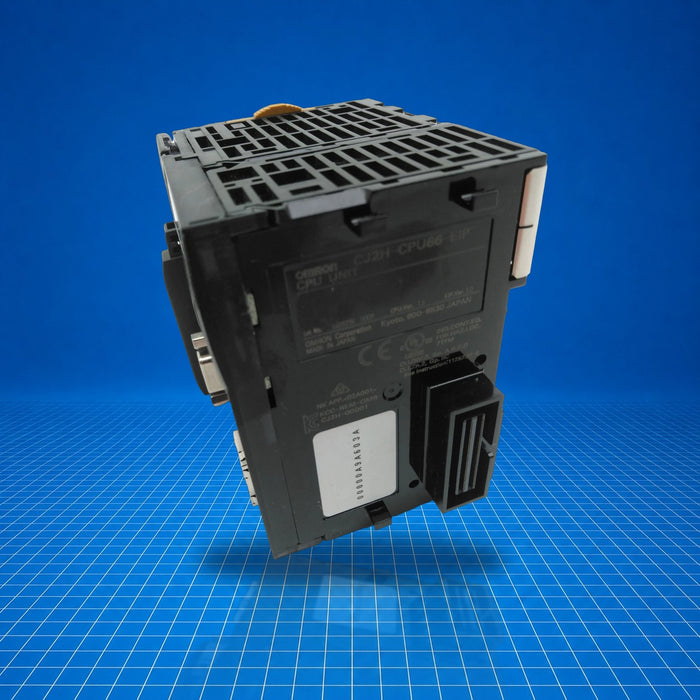

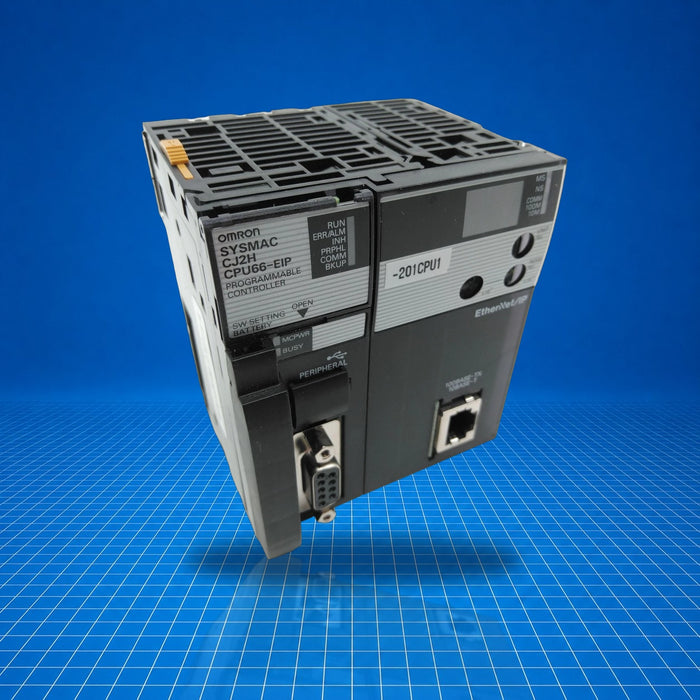

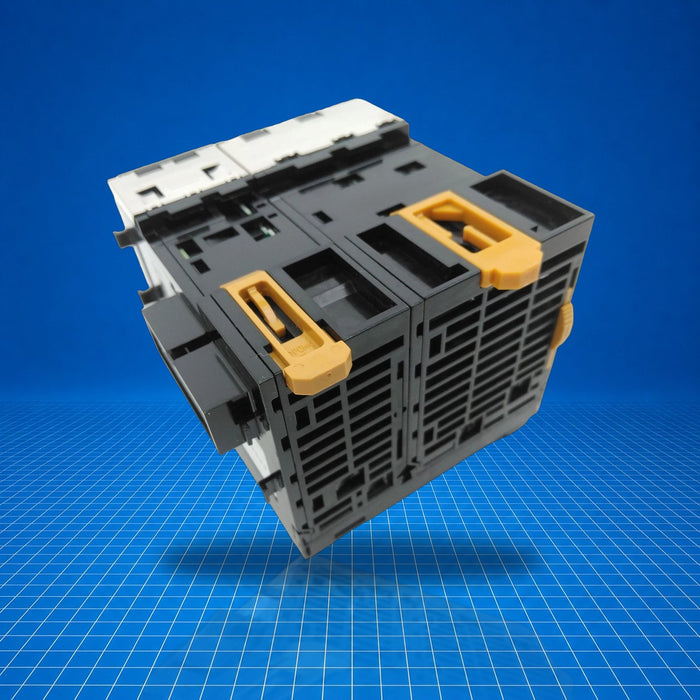

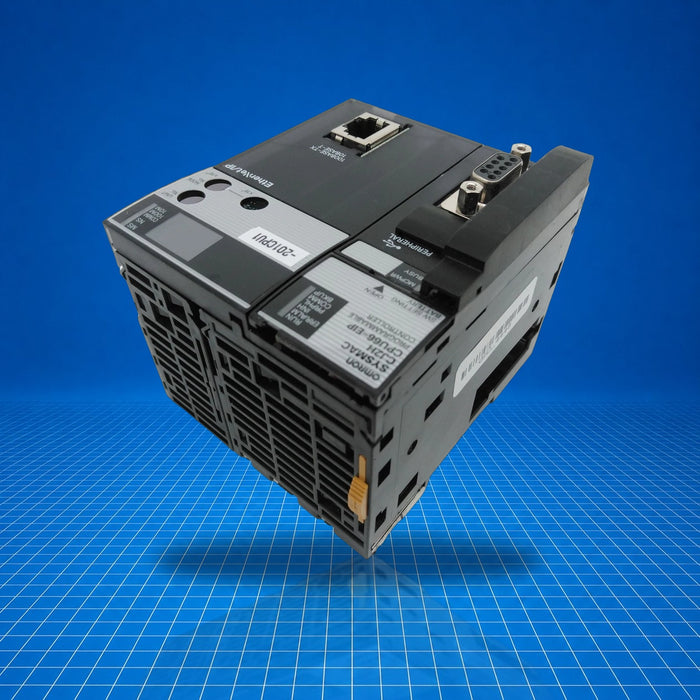

CJ2H-CPU66-EIP Omron
Original price
$813.59
-
Original price
$1,237.50
Original price
$813.59
$813.59
-
$1,237.50
Current price
$813.59
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ2H-CPU66-EIP is an Omron CJ2H-series CPU module with built-in EtherNet/IP support. It serves as the central controller in an Omron CJ2H modular PLC system. With 100 K steps of program memory and 160 K words of data memory (32 K words DM, 32 K words × 4 banks EM), it executes ladder instructions in 0.016 µs and supports up to 2 560 I/O points and three expansion racks. It is used in industrial control systems requiring EtherNet/IP communication, such as machine automation, conveyor systems, and advanced motion control.
Best Suited For
- Omron CJ2H modular PLC systems
- EtherNet/IP-based network integration
- Medium-complexity machine control
- On-machine modular expansion
Program memory
100 K steps
Data memory (EM)
32 K words × 4 banks
I/O capacity
2 560 bits
Instruction time
0.016 µs
Technical Specifications
I/O & Electrical
I/O capacity
2 560 bits
Max expansion racks
3
Communication & Power
EtherNet/IP port
Built-in (100Base-TX/10Base-T) with CIP, FINS, Tag Data Links
Program memory
100 K steps
Data memory (DM)
32 K words
Data memory (EM)
32 K words × 4 banks
Instruction execution time (LD)
0.016 µs
Physical & Environmental
Dimensions (H × D × W)
90 mm × 65 mm × 80 mm
Weight
280 g or less
Operating temperature
0 to 55 °C
Storage temperature
-20 to 70 °C (excluding battery)
Humidity
10 % to 90 % (no condensation)
Pollution degree / Overvoltage category
Degree 2 / Category II (IEC 61010-2-201)
