CJ2M-CPU31 Omron
Original price
$1,100.00
-
Original price
$1,375.00
Original price
$1,100.00
$1,100.00
-
$1,375.00
Current price
$1,100.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

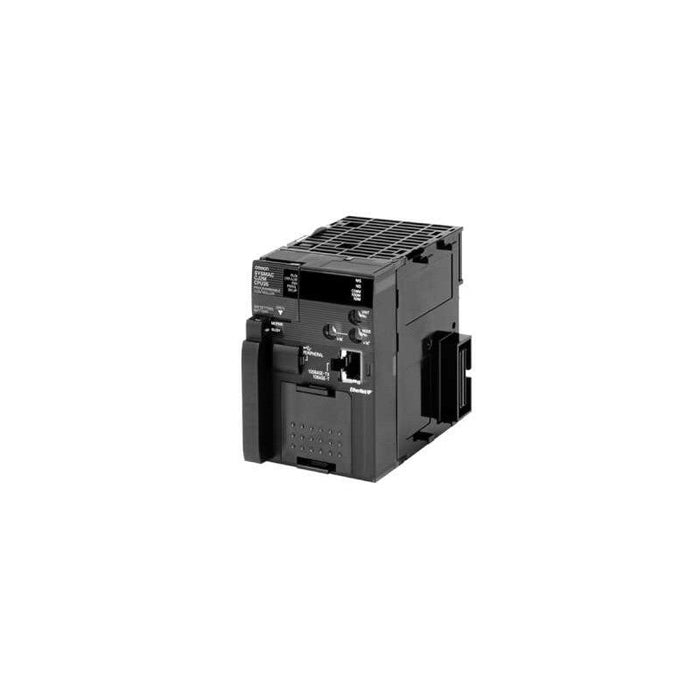

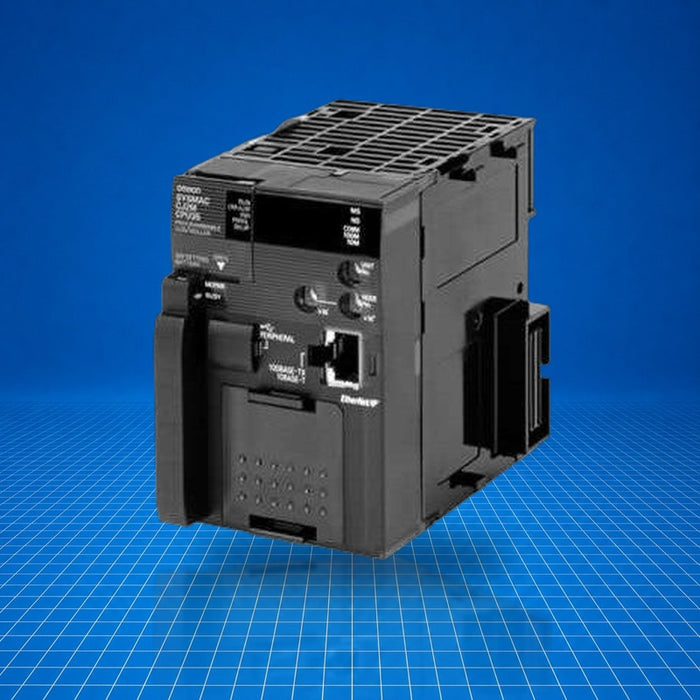

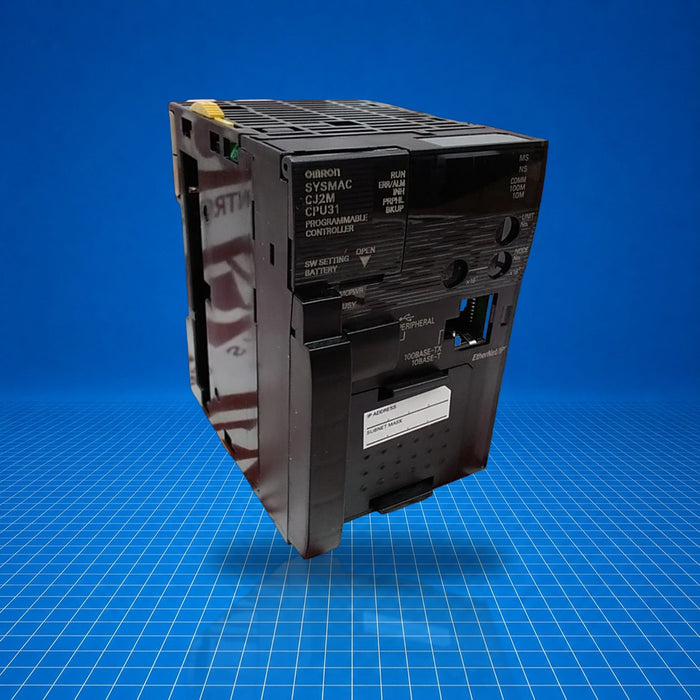

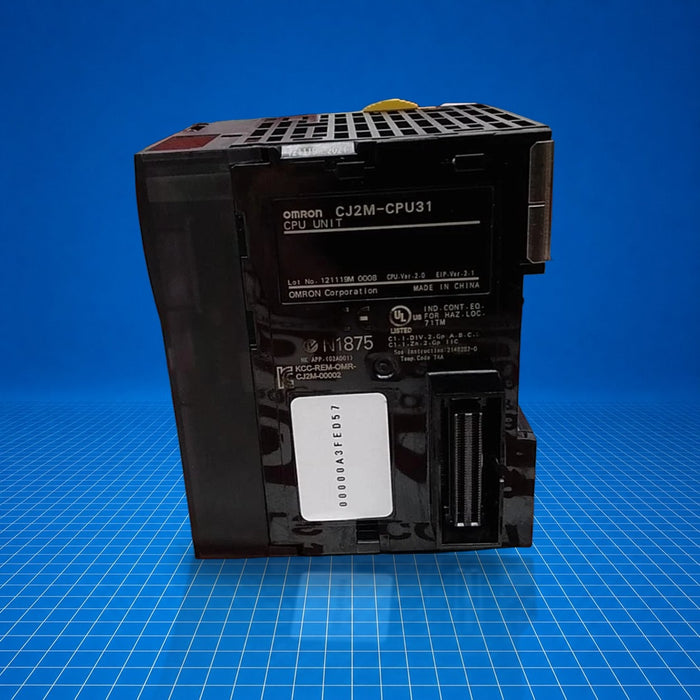

CJ2M-CPU31 is an Omron CJ2M series programmable logic controller CPU unit featuring built-in EtherNet/IP functionality. It provides 5 K instruction steps of user program memory and supports a modular I/O system with up to 2,560 I/O points across three expansion racks. It serves as the control core in industrial automation systems such as modular machine control, small to mid-size production cells, or distributed control architectures. CJ2M-CPU31 integrates into CJ2M platforms for flexible configuration.
Best Suited For
- Panel-mounted modular control systems
- Distributed I/O installations via EtherNet/IP
- Small to mid-size machine control applications
- Systems requiring scalable I/O via expansion racks
Program capacity
5 K steps
I/O capacity
2,560 points (3 expansion racks max)
Built-in EtherNet/IP
Yes
Current (5 V)
0.5 A
Ambient temperature (op)
0 to 55 °C
Technical Specifications
I/O & Electrical
User memory
5 K steps
I/O capacity
2,560 points (3 expansion racks max)
Communication & Power
Built-in EtherNet/IP
Yes
Current consumption (5 VDC)
0.5 A
Physical & Environmental
Ambient operating temperature
0 to 55 °C
Weight
130 g or less
Dimensions (W×H×D)
90 mm × 75 mm × 31 mm
Ambient operating humidity
10 % to 90 % (no condensation)
Certifications
cULusNKLRCE
Conforms to cULus, NK, LR, and EC Directives.
