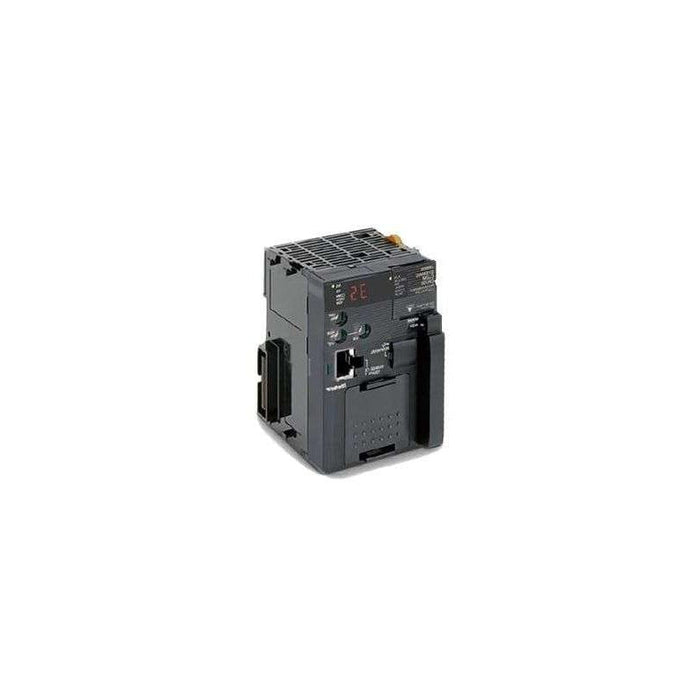

CJ2M-CPU34 Omron
Original price
$1,312.48
-
Original price
$2,844.00
Original price
$1,312.48
$1,312.48
-
$2,844.00
Current price
$1,312.48
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ2M-CPU34 is an Omron SYSMAC CJ2M series CPU module featuring built-in EtherNet/IP. Intended as a controller in industrial automation systems, CJ2M-CPU34 offers 30 K steps of program memory and 160 K words of data memory (DM: 32 K; EM: 32 K × 4 banks), with logic scan times around 0.04 µs. It supports up to 2,560 local I/O points and accommodates up to three expansion racks. CJ2M-CPU34 integrates in mid-to-high complexity control applications requiring network connectivity, data handling, and modular expansion.
Best Suited For
- Mid-range discrete or batch control systems
- EtherNet/IP networked PLC applications
- Applications requiring moderate program capacity (30 K steps)
- Expansion-capable systems up to 2,560 I/O points
- Panel-mounted installations in standard industrial environments
Program capacity
30 K steps
Data memory
160 K words
Local I/O capacity
2,560 points
Network interface
Built-in EtherNet/IP
Logic execution time
≈0.04 µs
Technical Specifications
I/O & Electrical
Local I/O capacity
2,560 points
Communication & Power
Communication ports
EtherNet/IP, Ethernet TCP/IP, USB
Current consumption (5 VDC)
0.7 A
Physical & Environmental
Enclosure
Panel-mount
Operating temperature
0 to 55 °C
Storage temperature
-20 to 70 °C (excl. battery)
Weight
Approx. 190 g
Dimensions
90 mm × 75 mm × 62 mm
Certifications
cULusNKLRCE
Conforms to cULus, NK, LR, and EC Directives
