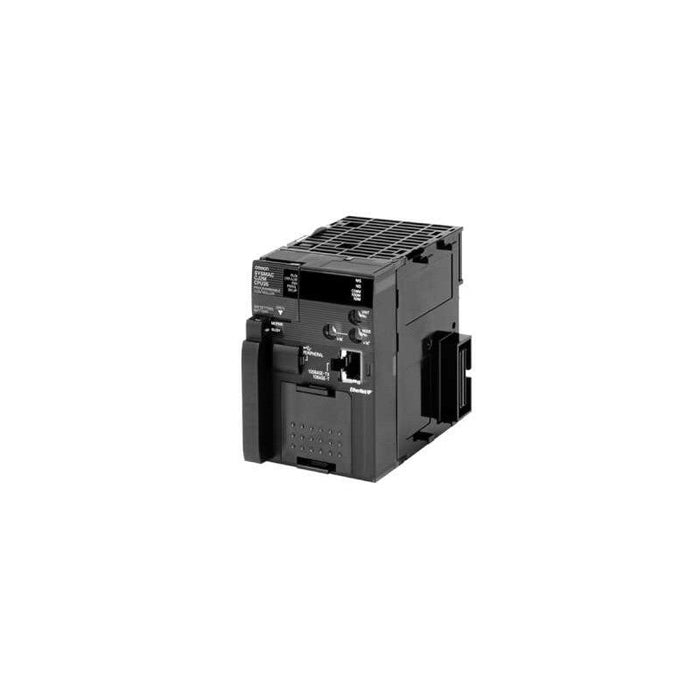

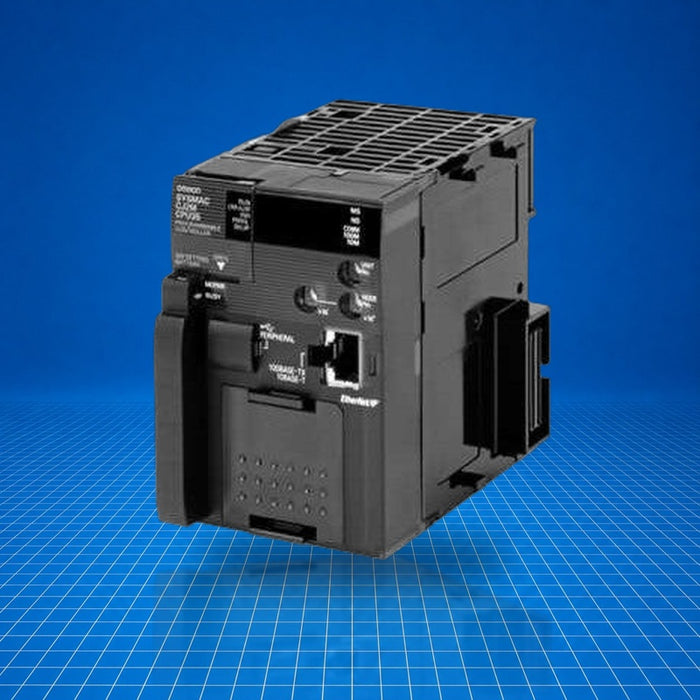

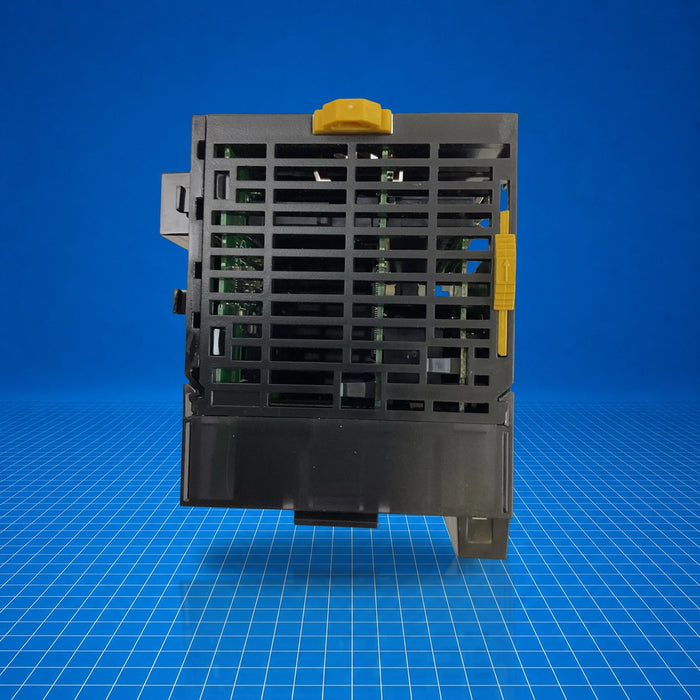

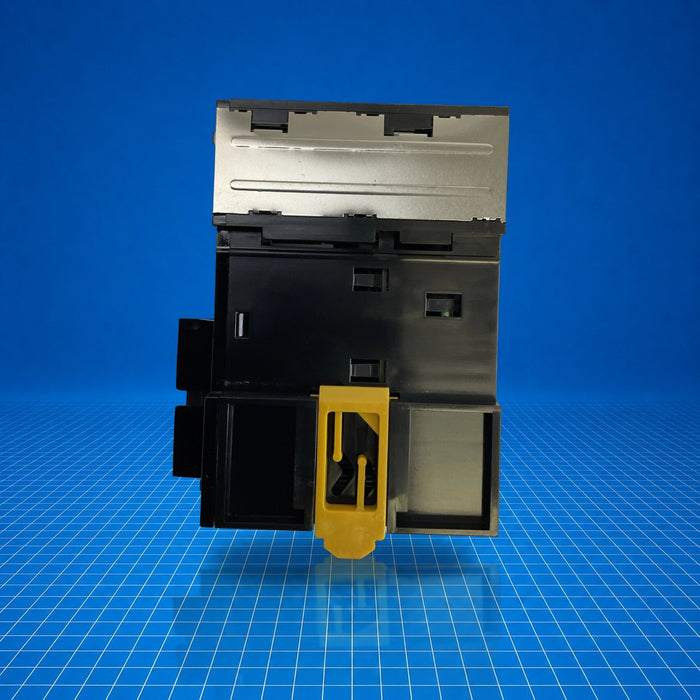

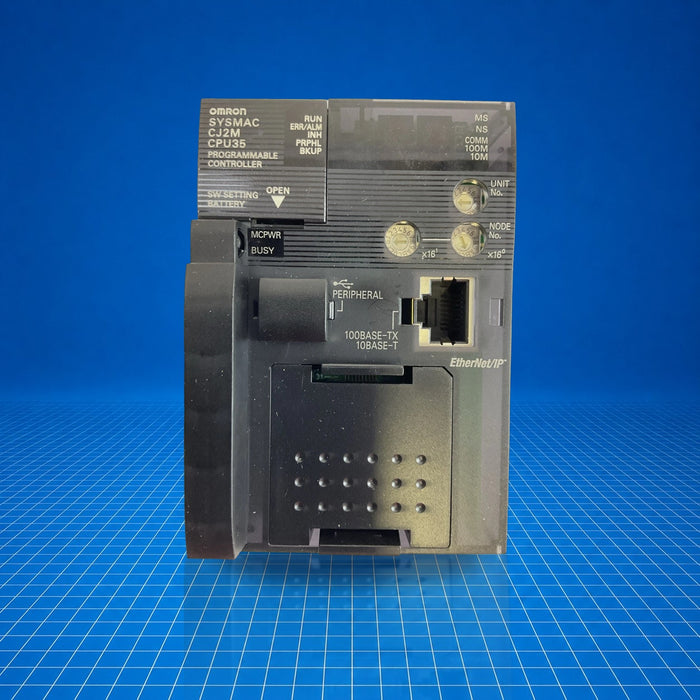

CJ2M-CPU35 Omron
Original price
$764.50
-
Original price
$962.50
Original price
$764.50
$764.50
-
$962.50
Current price
$764.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Omron CJ2M-CPU35 is a programmable logic controller CPU unit in the CJ2M (with built-in EtherNet/IP) family. The CJ2M-CPU35 serves as the control engine executing ladder logic and data processing, supporting up to 2,560 I/O points via local and expansion units. It integrates Ethernet TCP/IP, EtherNet/IP, and USB interfaces for networked control applications. Typical uses include mid-scale industrial automation, machine control, and distributed I/O systems.
Best Suited For
- Distributed I/O systems up to 2,560 points
- EtherNet/IP-based networked control
- Machine control requiring up to 60K step logic
- Panel-mount applications in industrial automation
Program capacity
60 K steps
Data memory capacity
160 K words
Max expansion units
40 units (3 racks max)
Current consumption (5 VDC)
0.7 A
Technical Specifications
I/O & Electrical
Max local I/O points
2 560 points
Expansion units supported
40 units (3 expansion racks max)
Communication & Power
Interfaces
EtherNet/IP, Ethernet TCP/IP, USB
Logic execution time (LD instruction)
0.04 μs
Option board slot
Yes
Current consumption (5 VDC)
0.7 A
Physical & Environmental
Dimensions
90 mm × 75 mm × 62 mm
Weight
Approx. 190 g
Operating temperature
0 to 55 °C
Storage temperature
-20 to 70 °C
Ambient humidity
10% to 90% (no condensation)
Pollution degree
2
Overvoltage category
II
EMC immunity level
Zone B
Vibration resistance
Conforms IEC 60068-2-6
Shock resistance
Conforms IEC 60068-2-27 (147 m/s²)
Certifications
UC1NLCEcULus
Conforms to UC1, N, L, CE directives and cULus certification.
