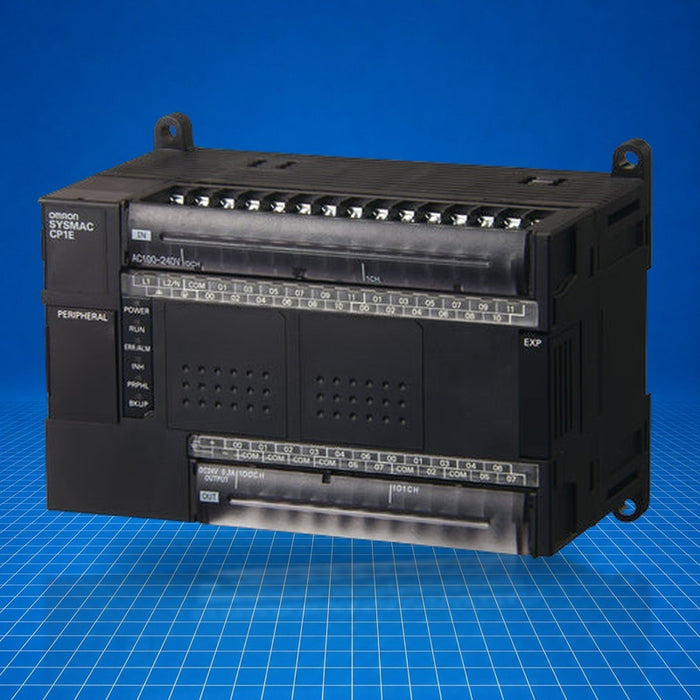

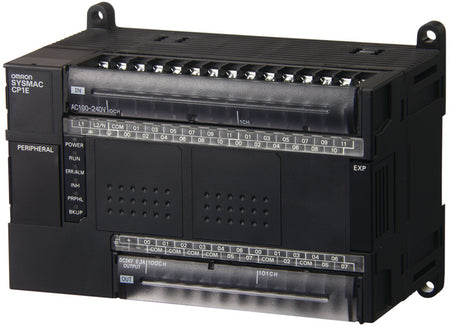

CP1E-E40DR-A Omron
Original price
$1,179.75
-
Original price
$2,251.55
Original price
$1,179.75
$1,179.75
-
$2,251.55
Current price
$1,179.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1E-E40DR-A is an Omron CP1E series micro-PLC CPU unit providing 40 built-in I/O points (24 inputs, 16 relay outputs) suitable for compact industrial control systems. It offers a stored-program architecture with USB programming interface and is intended for cost-efficient automation tasks such as machine control and standalone logic operations. CP1E-E40DR-A integrates program and data memory for ladder logic programming with expandability via CP1W units.
Best Suited For
- Standalone machine control
- Compact panel-mounted automation
- Logic control with moderate I/O count
- Systems requiring USB programming interface
Built-in I/O (In/Out)
24/16
Program capacity
2 K steps
Input voltage range
85-264 VAC
Power consumption
15 VA (100 VAC) / 25 VA (240 VAC)
Operating temperature
0 to 55 °C
Technical Specifications
I/O & Electrical
Built-in inputs
24 (digital)
Built-in outputs
16 (relay)
Program capacity
2 K steps (≈8 Kbytes)
Data memory capacity
2 K words
Communication & Power
Supply voltage
100 to 240 VAC, 50/60 Hz
Operating voltage range
85 to 264 VAC
Power consumption
15 VA (100 VAC) / 25 VA (240 VAC)
Inrush current
20 A (120 VAC, 8 ms) / 40 A (240 VAC, 8 ms)
USB programming interface
Built-in B-type USB 2.0 (max 5 m)
Expansion units supported
Up to 3 CP1W expansion units (max I/O total 160)
Physical & Environmental
Dimensions (H×D×W)
90 × 85 × 150 mm
Weight
660 g max.
Operating temperature
0 to 55 °C
Storage temperature
-20 to 75 °C (excluding battery)
Ambient humidity
10 to 90 % RH (non-condensing)
Altitude
≤ 2,000 m
Pollution degree
2 or less
Vibration resistance
JIS 60068-2-6 (5-8.4 Hz @ 3.5 mm / 8.4-150 Hz, 9.8 m/s²)
Shock resistance
JIS 60068-2-27 (147 m/s², 3× each axis)
Certifications
EC DirectiveIEC 61131-2 Category IIIEC61000-4-4 Zone B
