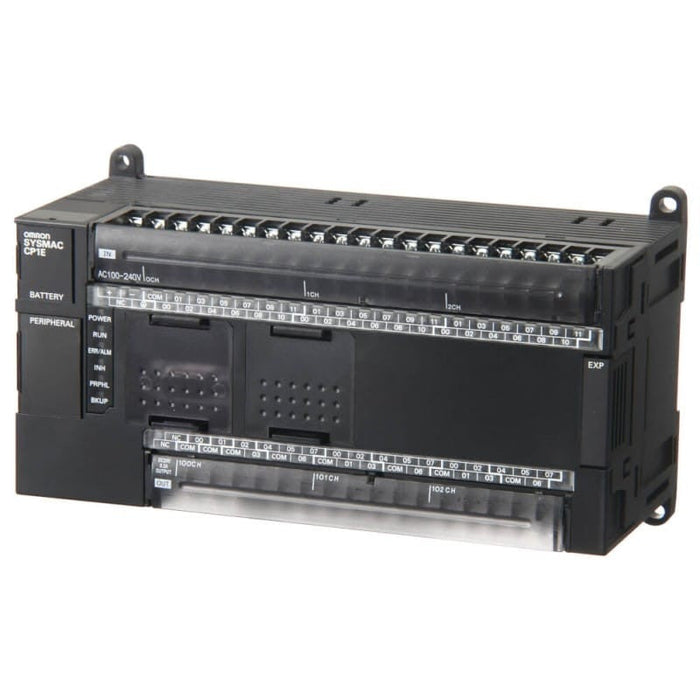

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

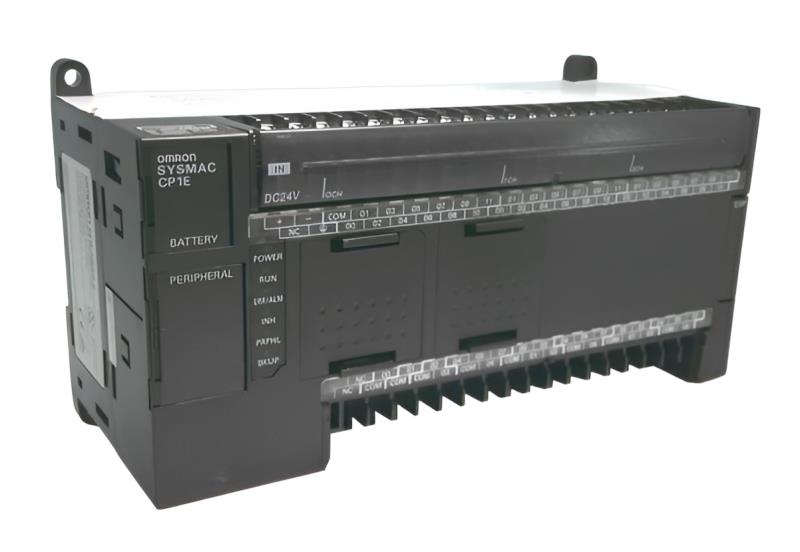

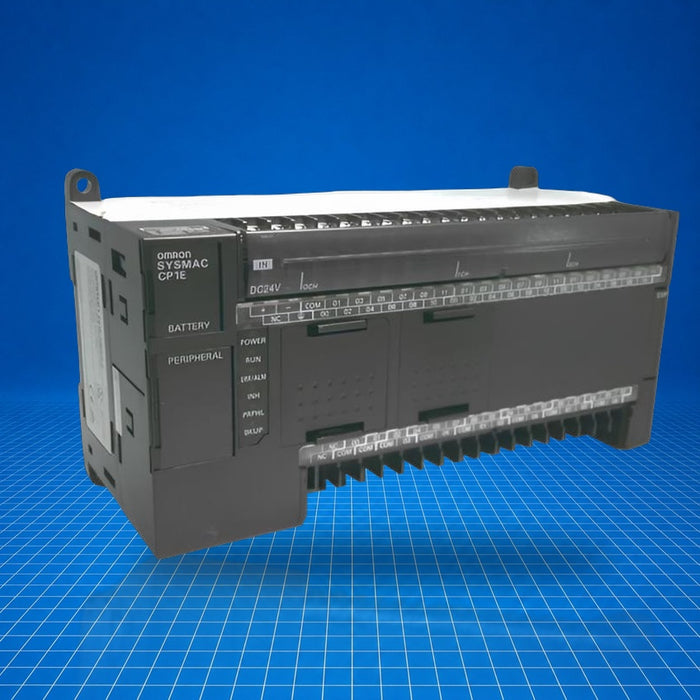

CP1E-N60DR-D Omron
Original price
$0.00
-
Original price
$2,177.44
Original price
$2,177.44
$0.00
-
$2,177.44
Current price
$2,177.44
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1E-N60DR-D is a micro PLC (programmable logic controller) in Omron's CP1E family, offering 60 built-in I/O points (36 inputs, 24 outputs). It integrates USB and RS-232C ports for programming and communications, supporting ladder logic, high-speed counters, pulse outputs, and optional expansion units. In control systems it serves as a compact, modular controller suitable for machinery control, packaging, conveyor systems, and basic motion applications, where onboard I/O density and serial/USB interfacing are primary requirements.
Best Suited For
- Mid-range discrete control with up to 60 I/O
- Systems requiring USB or RS-232C programming interface
- High-speed counter or pulse output applications
- Expandable configurations via CP1W expansion units
Built-in I/O (In/Out)
36 / 24
Communication ports
USB + RS-232C
Program capacity
8 K steps (32 Kbytes)
Expansion capability
Up to 3 CP1W-series units
Program memory retention
Built-in EEPROM
Technical Specifications
I/O & Electrical
Input voltage (DC)
20.4 to 26.4 V DC
Built-in inputs
36 digital inputs
Built-in outputs
24 digital outputs
Communication & Power
Communication ports
USB (B-type), RS-232C (D-sub 9-pin) built-in
Program capacity
8 K steps / 32 Kbytes
Power consumption
20 W max (24 V DC models of N60-type)
Physical & Environmental
Dimensions (H × D × W)
90 × 85 × 195 mm
Weight
850 g max
Operating temperature
0 to 55 °C
Storage temperature
-20 to 75 °C (excl. battery)
Humidity
10% to 90% non-condensing
Vibration resistance
JIS 60068-2-6 (5-150 Hz, 9.8 m/s²)
Shock resistance
JIS 60068-2-27 (147 m/s²)
