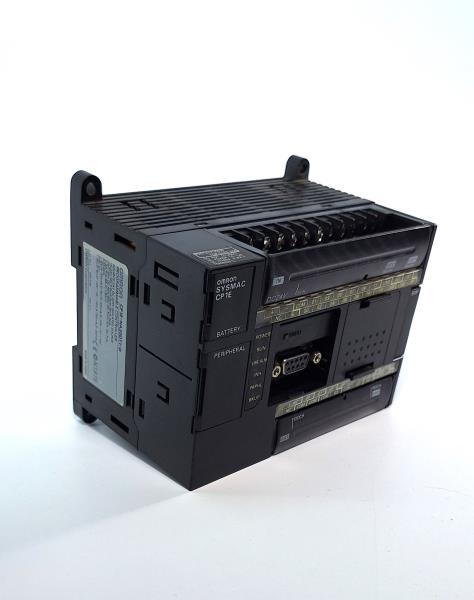

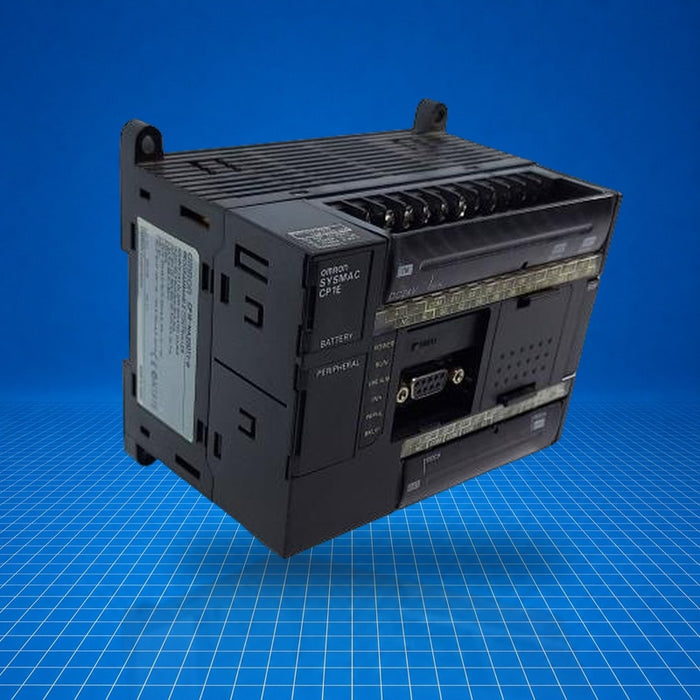

CP1E-NA20DT1-D Omron

Name: CP1E-NA20DT1-D Omron
Brand: Omron
SKU: CP1E-NA20DT1-D
Price: 600.0 USD
Availability: InStock

$600.00 - $2,394.00

$600.00

$600.00 - $2,394.00

$600.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CP1E-NA20DT1-D is a member of Omron's CP1E CPU units, offering compact DC-powered logic control with integrated analog I/O. It provides 20 built-in I/O points-including two analog inputs and one analog output-and supports expandability via CP1W expansion units. The unit is suitable for mid-range industrial control tasks, such as analog signal monitoring and basic process control, within OEM machines or small automated systems. CP1E-NA20DT1-D serves as the platform-specific part number for the sinking-transistor variant of the NA-type.

Best Suited For

Analog and temperature signal control in small machinery
Installation where DC 24 V power is used
Applications requiring both digital and analog I/O without expansion
OEM panels needing compact PLC with analog capability

Built-in I/O points

20 (12 digital in, 8 digital out)

Analog I/O

2 inputs, 1 output

Supply voltage

24 V DC

Program capacity

8 K steps (32 Kbytes)

Data memory

8 K words

Technical Specifications

I/O & Electrical

Digital inputs

12

Digital outputs

8 sinking transistor

Analog inputs

2

Analog outputs

1

Communication & Power

Supply voltage

24 V DC

Current consumption (5 V internal)

0.23 A

Current consumption (24 V internal)

0.09 A

Communication ports

Built-in USB, RS-232C; RS-485 not built-in; one serial option board slot available

Physical & Environmental

Weight

500 g max.

Dimensions (H×D×W)

90 mm × 85 mm × 130 mm

Certifications

CEKC mark

Conforms to IEC standards; CE self-declaration (EN61131-2); KC mark registered for CP1E-NA20DT1-D.
