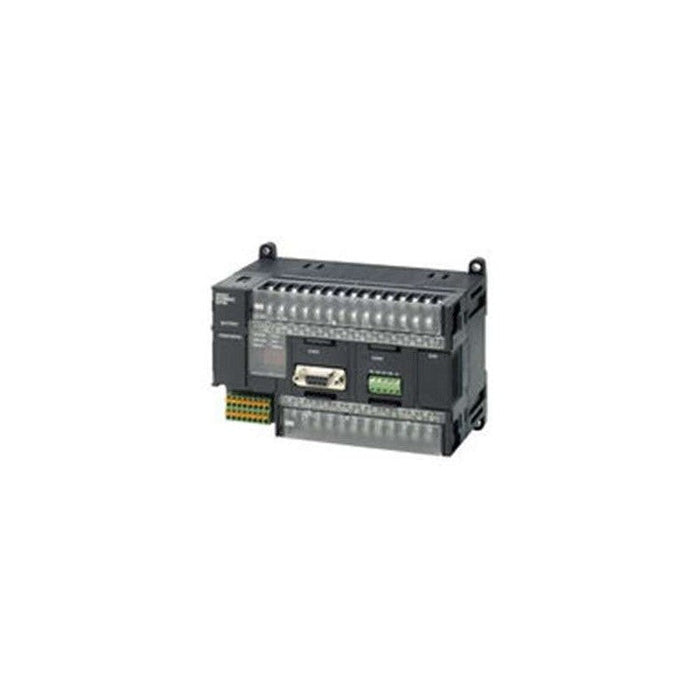

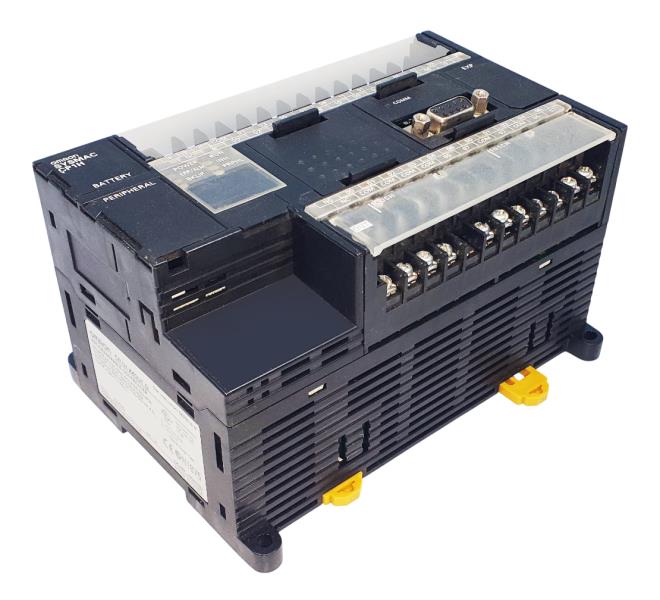

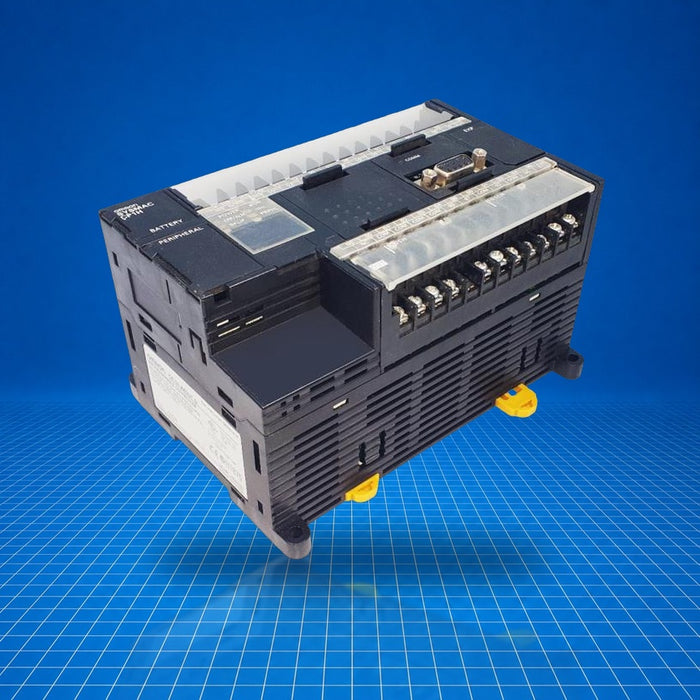

CP1H-X40DT-D Omron
Original price
$375.00
-
Original price
$2,780.80
Original price
$375.00
$375.00
-
$2,780.80
Current price
$375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1H-X40DT-D is an Omron CP1H series programmable logic controller (PLC) module with a 24 V DC power supply, featuring 24 DC inputs and 16 sinking transistor outputs, plus one analog input. It provides 20 K step program capacity and 32 K word data memory and includes built-in USB communications, real-time clock, and battery backup. Typical deployment includes compact machine control, basic positioning systems, and small automation tasks requiring local analog input capability.
Best Suited For
- Compact machine control
- Applications needing both digital and analog I/O
- Basic positioning or pulse-based motion control
- On-machine installations with USB programming
Built-in I/O
40 points
Program capacity
20 K steps
Data memory
32 K words
Power supply
24 V DC
Analog input
1 built-in
Technical Specifications
I/O & Electrical
Inputs
24 × 24 V DC
Outputs
16 NPN (sinking) transistor, 0.3 A each
Analog input
1 built-in (input range not specified)
Communication & Power
Supply voltage
24 V DC
Power consumption
50 W max (DC power supply models)
USB port
1 built-in for support software
Expansion ports
2 option ports
Real-time clock
Yes (battery backed)
Physical & Environmental
Operating temperature
0 to 55 °C
Storage temperature
-20 to 75 °C (excluding battery)
Built-in display
2-digit 7-segment
Max expansion I/O units
7 expansion + 2 option modules
Total I/O capacity
320 points
Certifications
CEEN61131-2
CE self-declared per EN61131-2; listed in Omron's KP-den-PA approvals; included in California perchlorate-affected product list.
