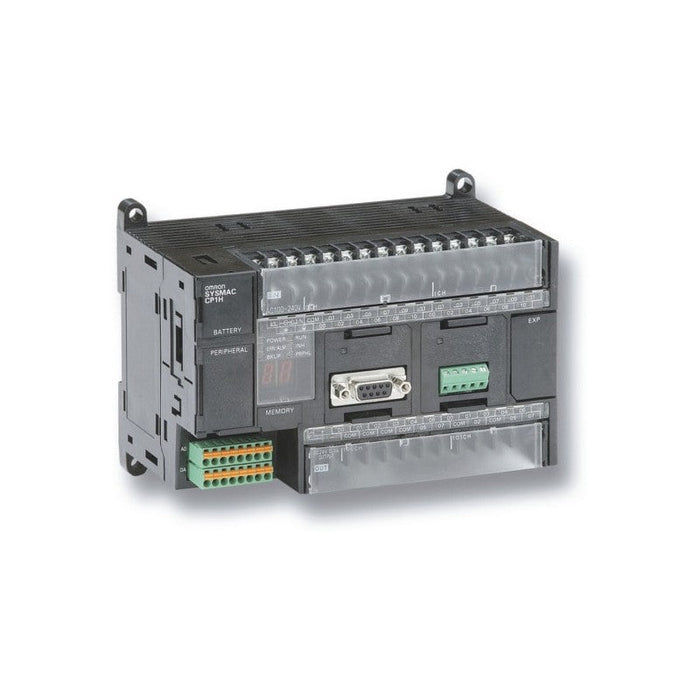

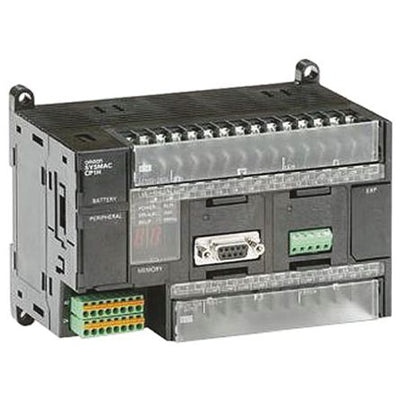

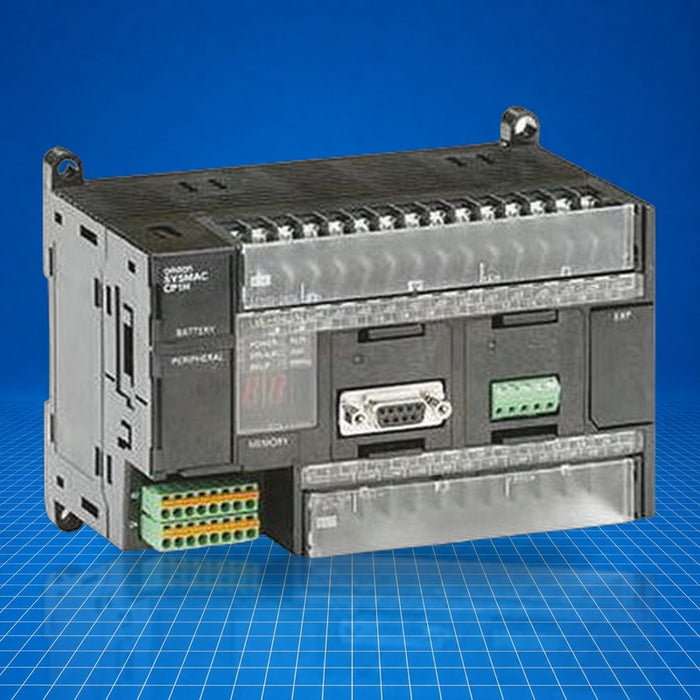

CP1H-XA40DR-A Omron
Original price
$447.00
-
Original price
$3,076.20
Original price
$447.00
$447.00
-
$3,076.20
Current price
$447.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1H-XA40DR-A is a micro PLC CPU module in Omron's CP1H-XA family, combining relay outputs with built-in analog I/O for compact, multi-axis and PID control tasks in discrete and small machine applications. It provides 24 DC inputs, 16 relay outputs, plus four analog inputs and two analog outputs, program memory of 20K steps and data memory of 32K words. It operates on 100-240 VAC and integrates USB communication, suitable for compact machine control, loop control with auto-tuning, and multi-axis positioning.
Best Suited For
- Small-machine automation with built-in analog I/O
- Simple PID loop control with auto-tuning
- Multi-axis position control (4 axes)
- Compact PLC installations with relay logic
- Situations requiring USB-based programming and backup
Built-in I/O
24 DC inputs, 16 relay outputs, 4 analog inputs, 2 analog outputs
Memory capacity
20 K steps program, 32 K words data
Supply voltage
100-240 VAC, 50/60 Hz
Expansion capacity
Up to 7 expansion I/O units, 2 option modules
Communication ports
Built-in USB, 2 option ports
Technical Specifications
I/O & Electrical
Inputs
24 DC inputs
Outputs
16 relay outputs (2 A)
Analog inputs
4 analog inputs
Analog outputs
2 analog outputs
Communication & Power
Supply voltage
100-240 VAC, 50/60 Hz
Power consumption
100 VA max
Inrush current
20 A max (100-120 VAC), 40 A max (200-240 VAC)
USB port
USB 1.1 (programming/support only)
Physical & Environmental
Operating temperature
0 °C to 55 °C
Storage temperature
-20 °C to 75 °C (excluding battery)
Humidity
10 % to 90 % (no condensation)
Weight
0.71 kg
Certifications
KC Mark
KC Mark registration: KCC-REM-OMR-CP1H-0001 applies to CP1H-XA40DR-A.
