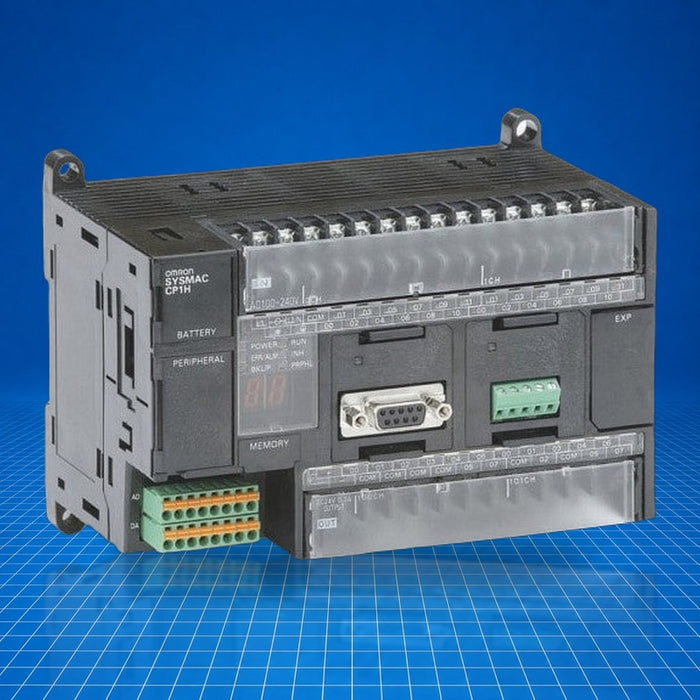

CP1H-XA40DT-D Omron
Original price
$350.37
-
Original price
$3,533.25
Original price
$350.37
$350.37
-
$3,533.25
Current price
$350.37
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1H-XA40DT-D is an Omron CP1H series programmable logic controller (PLC) CPU module. Featuring 20K steps of program memory and 32K words of data memory, it integrates 24 discrete 24 V DC inputs, 16 NPN transistor sinking outputs rated at 0.3 A, four analog inputs, and two analog outputs. It supports USB plus two option communication ports, real-time clock/calendar, and battery backup. It's typically used for compact machine control, multi-axis positioning, simple loop/PID control, and general automation in industrial OEM and packaging lines. (Part number CP1H-XA40DT-D.)
Best Suited For
- Compact machine control with mixed discrete and analog I/O
- Multi-axis positioning and motion control
- Loop or PID control with built-in analog channels
- Applications requiring program memory and date/time logging
Discrete inputs
24 × 24 V DC
Discrete outputs
16 NPN transistor (0.3 A)
Analog I/O
4 analog inputs, 2 analog outputs
Program/data memory
20K steps program, 32K words data
Technical Specifications
I/O & Electrical
Discrete inputs
24 × 24 V DC
Discrete outputs
16 NPN transistor (0.3 A)
Analog inputs
4 (built-in)
Analog outputs
2 (built-in)
Communication & Power
Supply voltage
24 V DC
Communications
USB, 2 option ports
Program memory
20K steps
Data memory
32K words
Real-time clock/calendar
Yes; battery backup
