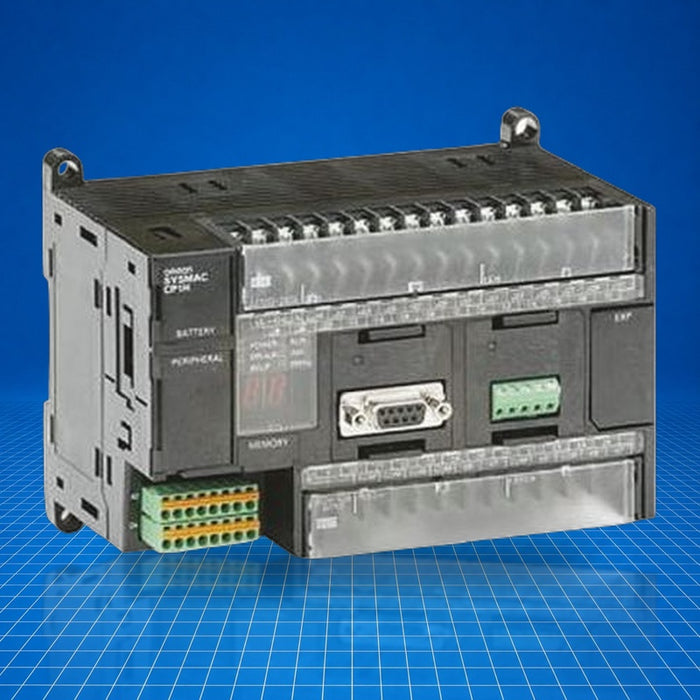

Product image is representative; revision or series may vary.
Contact us to request a specific version.

CP1H-XA40DT1-D Omron

Name: CP1H-XA40DT1-D Omron
Brand: Omron
SKU: CP1H-XA40DT1-D
Price: 687.5 USD
Availability: InStock

$687.50 - $3,906.02

$687.50

$687.50 - $3,906.02

$687.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CP1H-XA40DT1-D is a programmable logic controller (PLC) in Omron's compact CP1H-XA family, featuring built-in analog and digital I/O and transistor (sourcing) outputs. It combines 24 digital inputs (including 4 configurable analog/digital inputs) with 16 outputs comprising solid-state, pulse, and analog functions, plus high-speed counting and pulse output capability. The unit operates on 24 V DC, includes USB communication with two option card slots, real-time clock, and battery backup. Typical uses include multi-axis positioning, PID loop control, and compact machine automation. Part number CP1H-XA40DT1-D.

Best Suited For

Compact multi-axis motion control
On-machine PID loop control (analog I/O)
Situations requiring sourcing transistor outputs
Applications needing high-speed counters/pulse outputs
Expansion via option modules

Built-in I/O (total)

40 points

Memory

20 K steps (program) + 32 K words (data)

I/O mix

24 inputs (20 digital + 4 analog/digital), 16 outputs (10 solid-state, 4 pulse, 2 analog)

Power

24 V DC supply

Technical Specifications

I/O & Electrical

Input voltage

24 V DC

Digital inputs

24 (20 digital + 4 analog/digital)

Analog inputs

4 (built-in)

Outputs total

16

Analog outputs

2 (built-in)

Pulse outputs

4 (built-in)

Output type

Transistor sourcing

Communication & Power

Communications

USB + 2 option card ports

Memory capacity

20 K steps program, 32 K words data

Physical & Environmental

Operating temperature

0 °C to 55 °C

Mounting

Chassis mount or DIN-rail

Weight

0.91 kg (2.00 lbs)

Certifications

EN61131-2KC Mark

Conforms to EN61131-2 (self-declaration); registered under KC Mark (KCC-REM-OMR-CP1H-0002).
