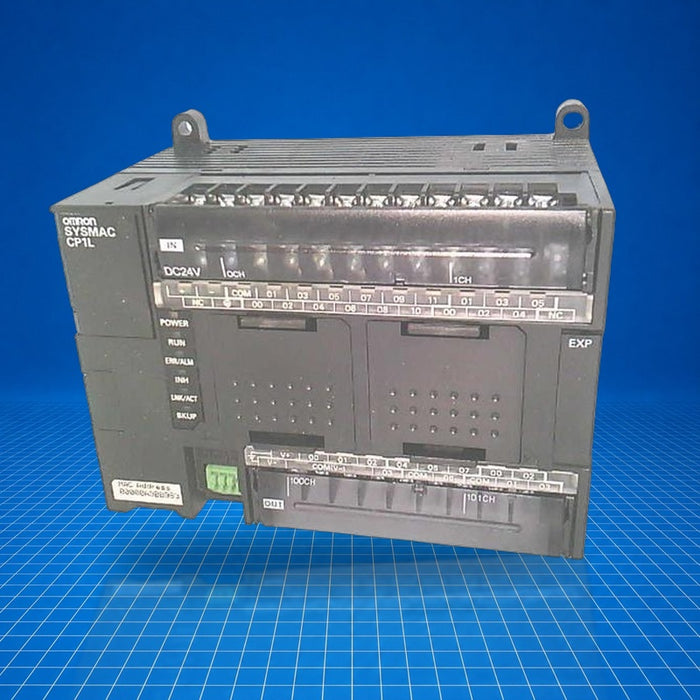

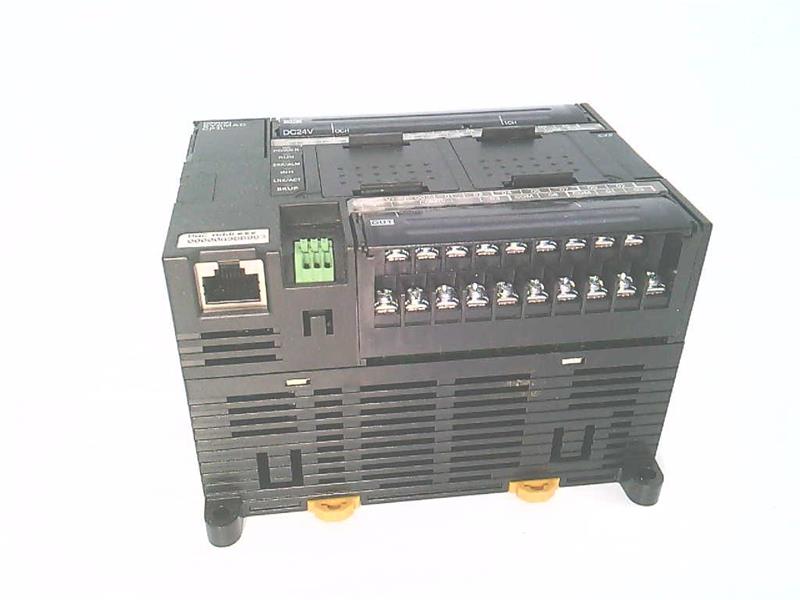

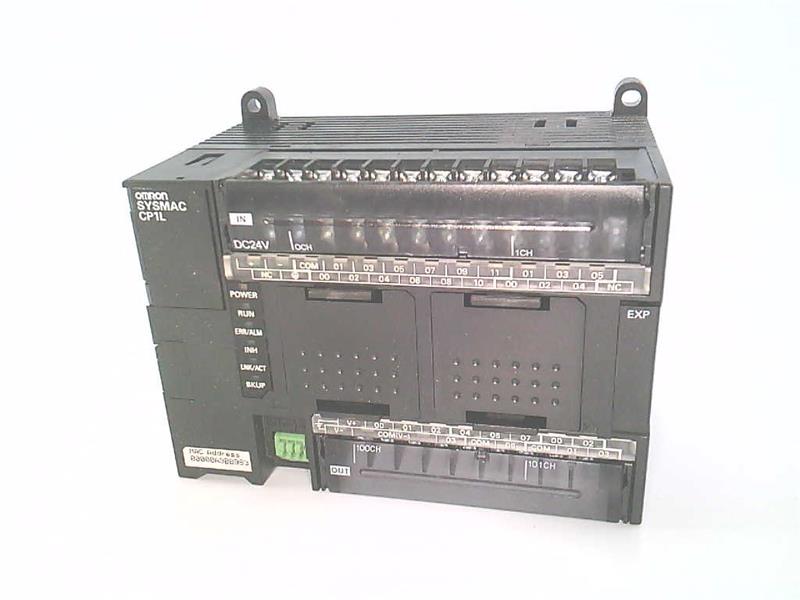

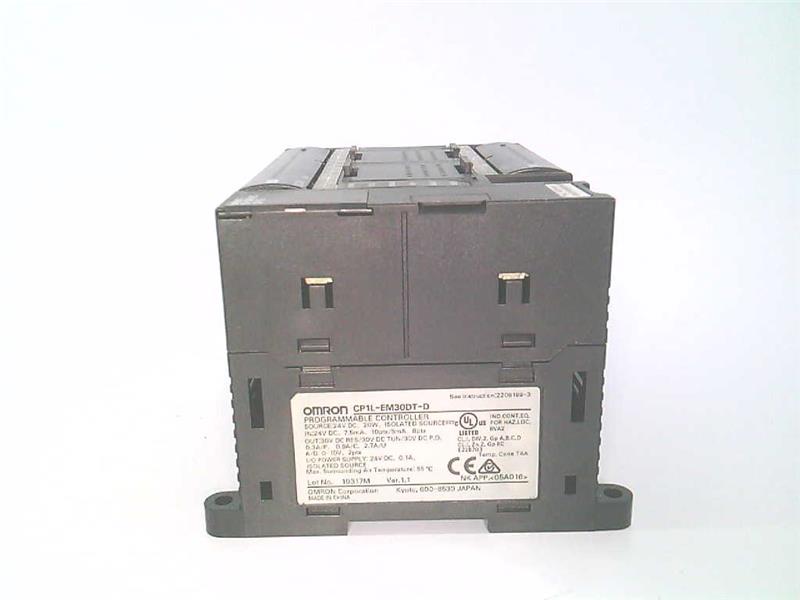

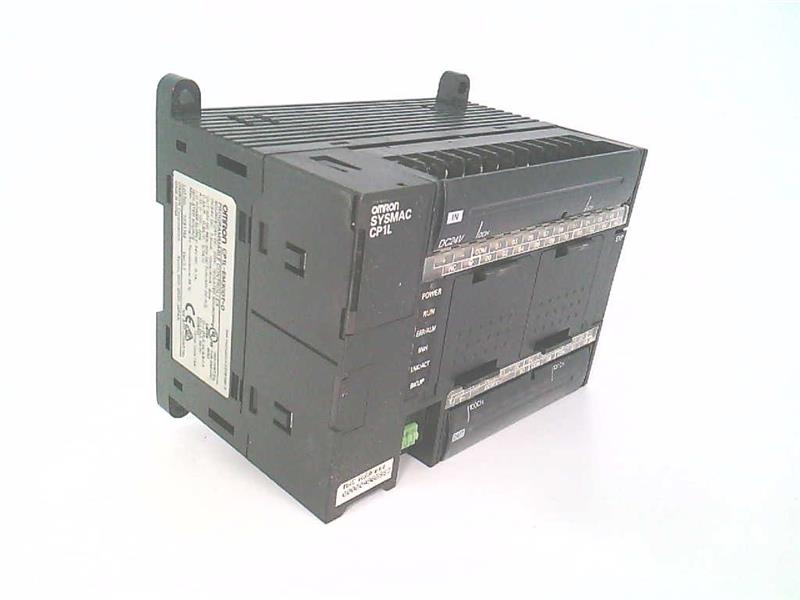

CP1L-EM30DT-D Omron
Original price
$1,810.85
-
Original price
$2,099.65
Original price
$1,810.85
$1,810.85
-
$2,099.65
Current price
$1,810.85
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1L-EM30DT-D is a micro-PLC (programmable logic controller) from OMRON's CP1L-EM family. It provides 30 built-in I/O points (18 inputs, 12 sourcing transistor outputs), a built-in Ethernet port, and 10K-step program capacity. It supports positioning control via high-speed counters (100 kHz, 4 axes) and pulse outputs (100 kHz, 2 axes), and fits compact machine control or tertiary applications requiring Ethernet connectivity for monitoring or remote access. CP1L-EM30DT-D is the DC-powered, sourcing transistor output variant.
Best Suited For
- Compact machine automation with Ethernet integration
- High-speed positioning control (4-axis counter, 2-axis pulse output)
- Applications requiring sourcing transistor outputs
- Systems using CP1L architecture compatible with CP1H/CJ1/CS1 families
Built-in I/O
18 inputs / 12 sourcing outputs
Program memory
10 K steps
Ethernet interface
Built-in Ethernet port
High-speed I/O
100 kHz counters (4-axis), 100 kHz pulse outputs (2-axis)
Technical Specifications
I/O & Electrical
Built-in inputs
18
Built-in outputs
12 sourcing transistor outputs
Program capacity
10 K steps
Communication & Power
Power supply
24 V DC
Operating voltage range
20.4 to 26.4 V DC
Power consumption
20 W max (EM30 type)
Physical & Environmental
Weight
610 g max.
Dimensions (H × D × W)
130 × 90 × 120 mm (for 30 I/O model)
Certifications
ULCE
